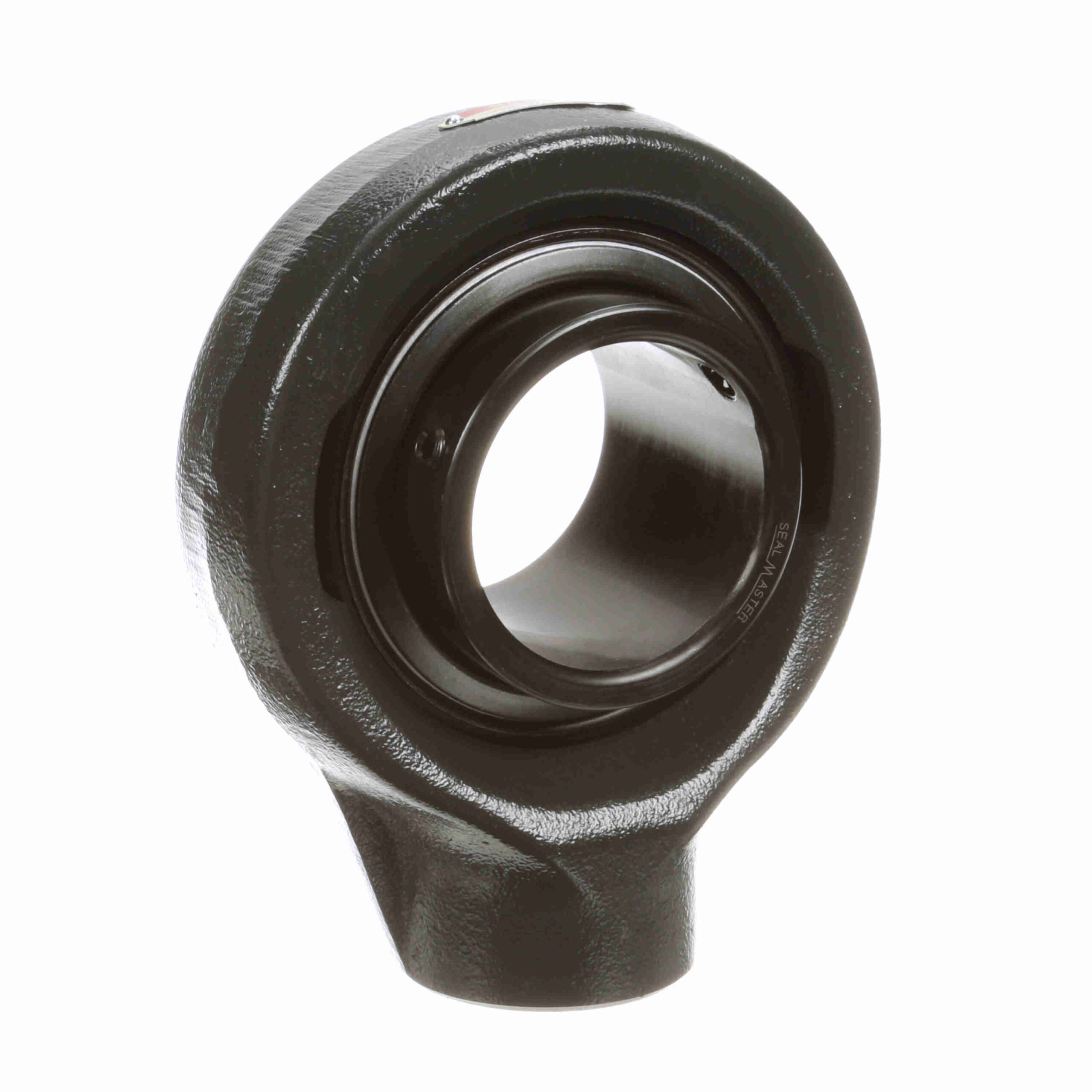

SCHB-39

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry , dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Expansion:	No
Measure Units:	Inch	Pipe Tap** N.P.S.M.:	1 1/4 - 11 1/2
Housing Type:	Hanger Unit	Housing Material:	Cast Iron
Duty Series:	Standard Duty	Bore Shape:	Straight
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel; Black Oxided
Speed (Max):	3000	Rolling Element:	Ball Bearing
Insert No.:	2-27	Retainer Type:	Land Riding Retainer
Inner-Race Heat-Treat Method:	Zone-Hardened	Internal Clearance:	Standard
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Housing Construction:	One Piece	Relubricatable:	Yes
Misalignment:	±2.0° Misalignment - Static Only	Housing Color:	Gray
Outer Ring Land Profile:	Standard	End Cap:	No
Bearing Insert Coating:	Black Oxide Coated	Misalignment Type:	Static Only
Replaceable Insert:	Yes	Platform:	Gold Line Ball Bearing
Series:	SCHB	Finish/Coating:	Uncoated
UPC:	662461002872	Weight:	9.15 LB
Packaged Length:	6.88 Inches	Packaged Width:	6.88 Inches
Packaged Height:	2.63 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
