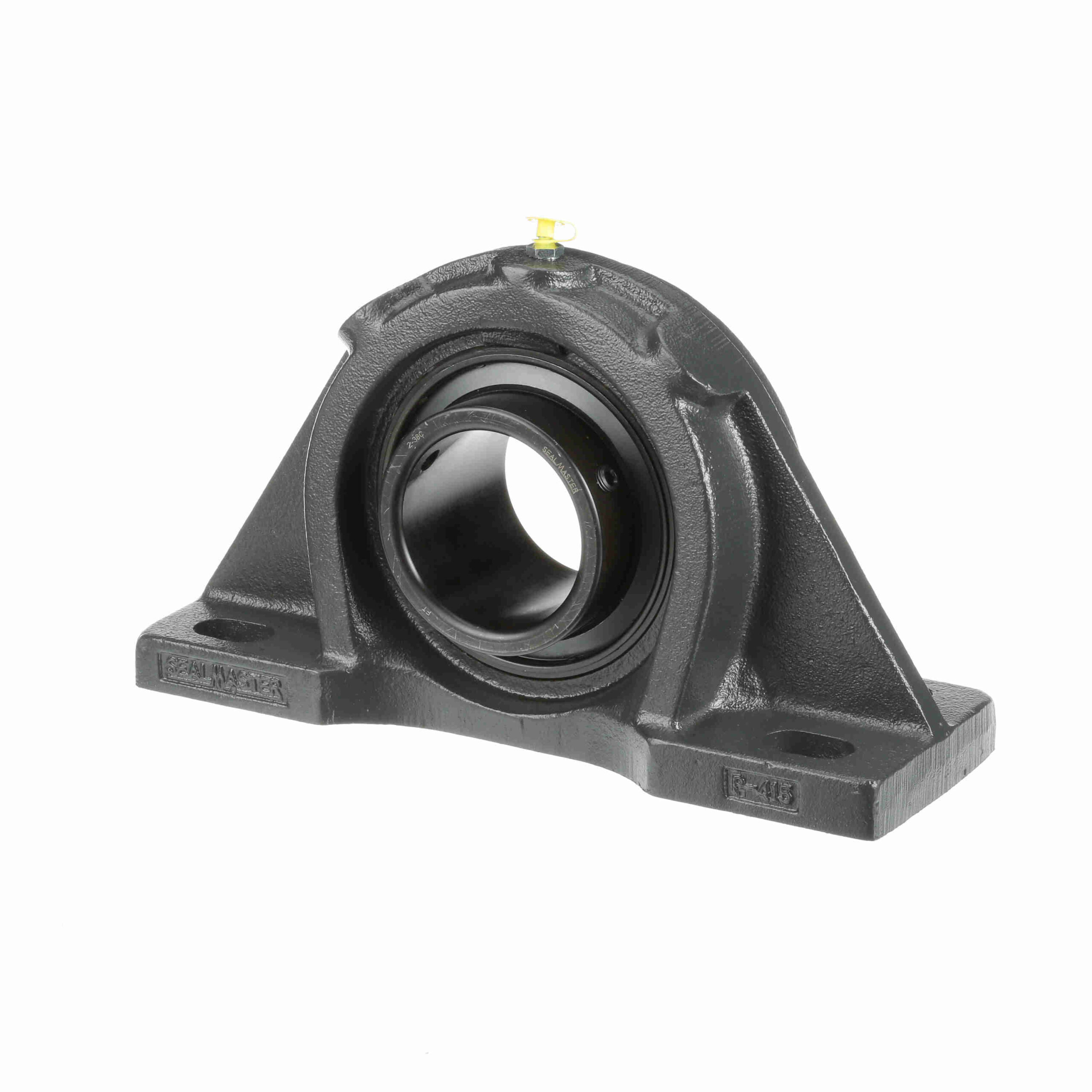

MSFPD-47C

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Expansion:	No	Seal Type:	Single Lip Contact Seal
Rolling Element:	Ball Bearing	Maximum Operating Temperature:	220 °F
Housing Type:	Pillow Block, Four Bolt	Housing Material:	Cast Iron
Housing Base:	Solid	Insert Material:	52100 Bearing Steel, Black Oxided
Retainer Type:	Land Riding Retainer	Duty Series:	Medium Duty
Insert No.:	3-215DC	Measure Units:	Inch
Inner-Race Heat-Treat Method:	Zone-Hardened	Speed (Max):	1950
Internal Clearance:	Standard	Relubricatable:	Yes
Locking Type:	Double Setscrew	Bore Shape:	Straight
Lubrication:	Lithium Complex NLGI 2 Grease	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Misalignment Type:	Static Only	End Cap:	No
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
UPC:	662461018422	Weight:	36.35 LB
Packaged Length:	14 Inches	Packaged Width:	8.13 Inches
Packaged Height:	5 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
