- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NP-24

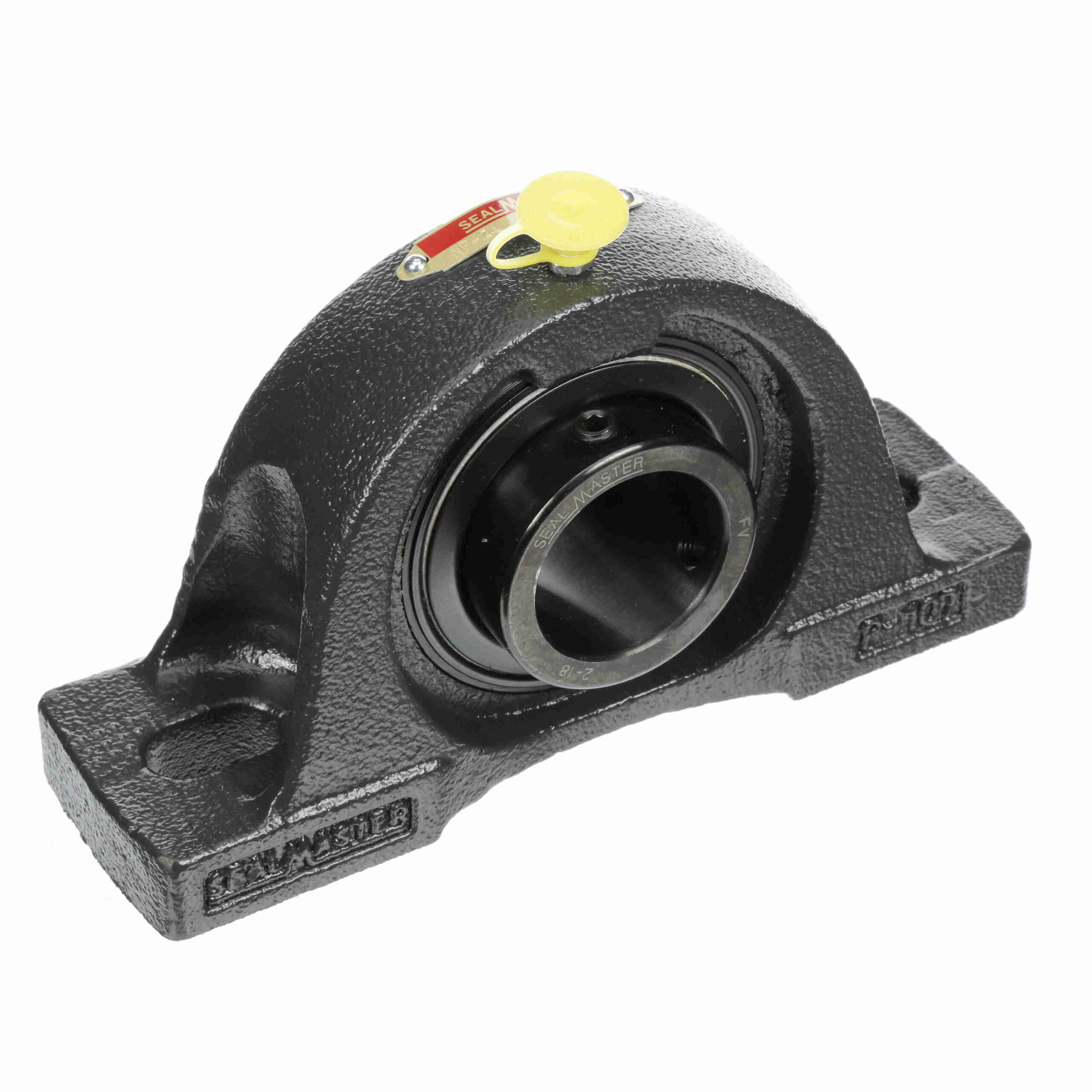

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-24
$145.38
Availability: 152 in stock
Availability: 152 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided | Speed (Max): | 4150 |
|---|---|---|---|
| Housing Base: | Solid | Internal Clearance: | Standard |
| Housing Material: | Cast Iron | Insert No.: | 2-18 |
| Housing Type: | Pillow Block; Two Bolt | Seal Type: | Felt Labyrinth Seal |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Retainer Type: | Land Riding Retainer | Duty Series: | Standard Duty |
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
| Bore Shape: | Straight | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Outer Ring Land Profile: | Standard |
| UPC: | 662461001653 | Weight: | 5.86 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
