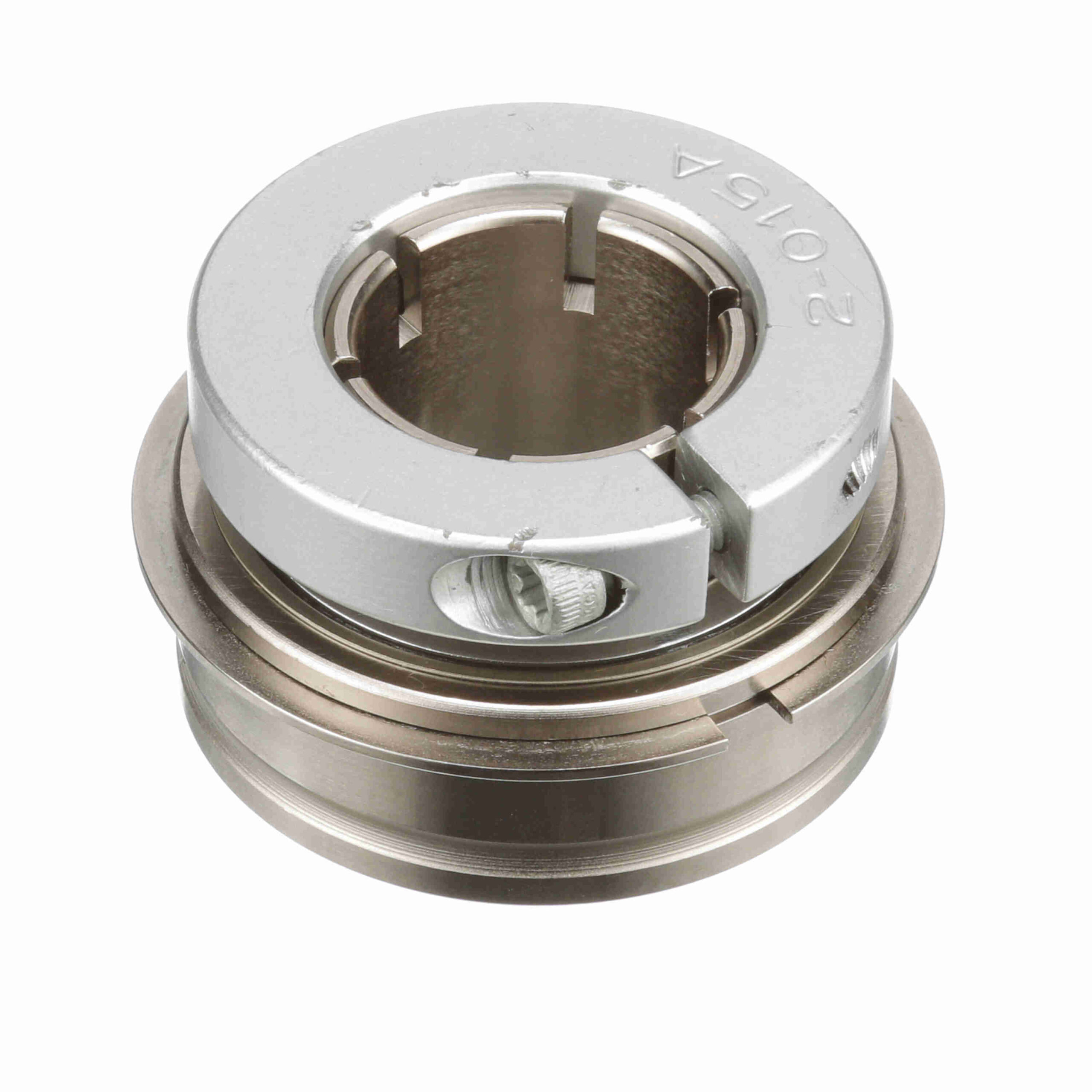

ERX-PN28T

ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway
USDA H1 complaint food grade grease

Insert Material:	52100 Bearing Steel, Phosphorus Nickel Coated	Radius:	0.062
Rolling Element:	Ball Bearing	Inner-Race Heat-Treat Method:	Zone-Hardened
Seal Type:	Triple Lip Contact Seal	Duty Series:	Standard
Maximum Operating Temperature:	220 °F	Measure Units:	Inch
Housing Type:	Insert (ER Style)	Bore Shape:	Straight
Retainer Type:	Land Riding Retainer	Expansion:	No
Relubricatable:	Yes	Radial Dynamic Load Capacity (lb):	7, 901
Locking Type:	Concentric	Internal Clearance:	Standard
Misalignment:	None	Lubrication:	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Speed (Max):	1600	Platform:	PN Gold
Options:	Corrosion Resistant	Misalignment Type:	Static Only
Bearing Insert Coating:	Phosphorus Nickel Coated	Outer Ring Land Profile:	Tapered Lands
End Cap:	No	Certifications:	IP69K
Radial Static Load Capacity (lb):	5, 139	Cage Material:	PPS
Precision Rating:	ABEC 1	Series:	ERX-PN-T
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Cylindrical
UPC:	662461339817	Weight:	2.81 LB
Packaged Length:	3.63 Inches	Packaged Width:	2 Inches
Packaged Height:	3.63 Inches	HTC:	8482.10.5052
Country of Origin:	Mexico
