- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MP-23

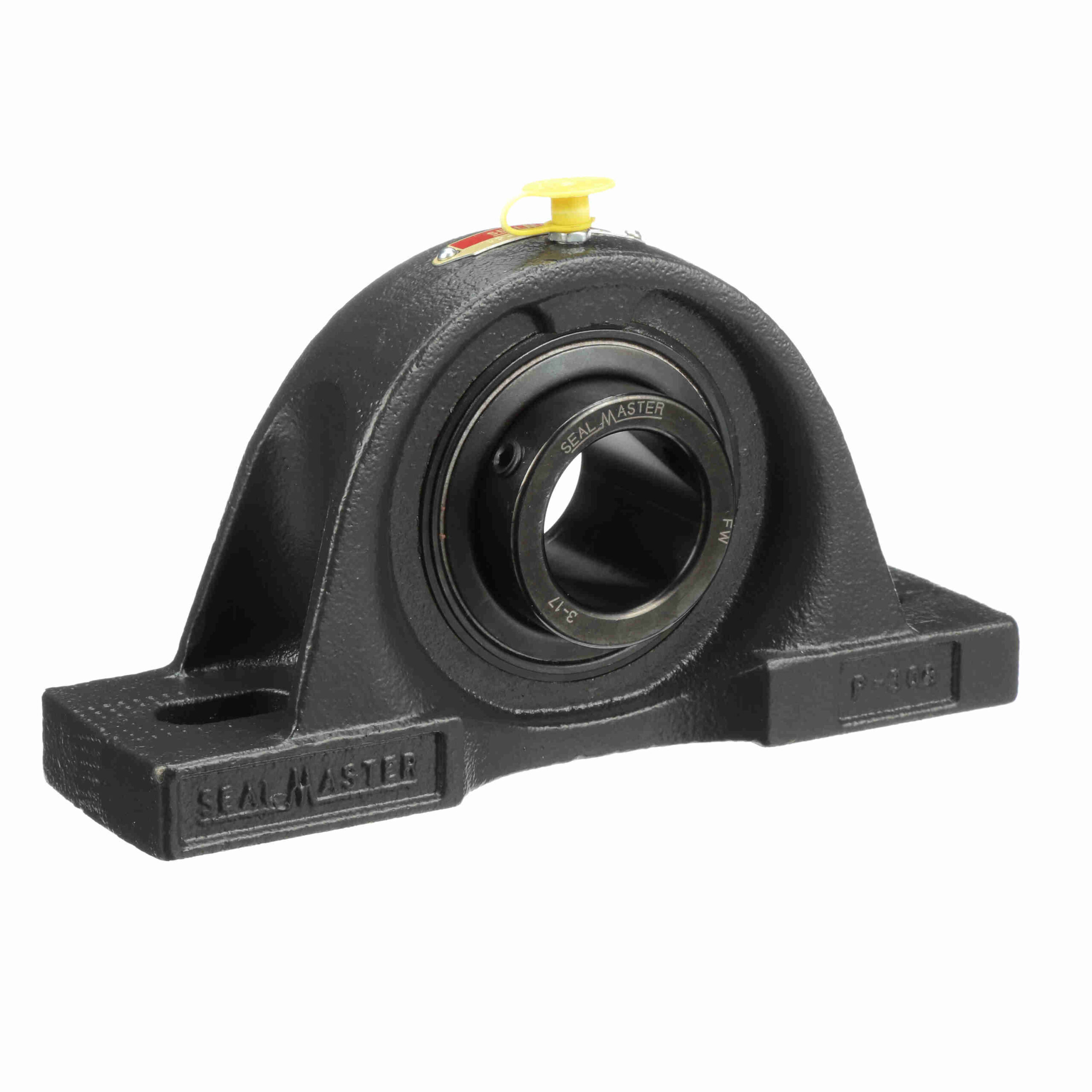

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MP-23
$180.71
Availability: 9 in stock
Availability: 9 in stock
| Rolling Element: | Ball Bearing | Housing Material: | Cast Iron |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Measure Units: | Inch |
| Duty Series: | Medium Duty | Housing Base: | Solid |
| Seal Type: | Felt Labyrinth Seal | Housing Type: | Pillow Block; Two Bolt |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Speed (Max): | 4150 |
| Expansion: | No | Insert No.: | 3-17 |
| Internal Clearance: | Standard | Retainer Type: | Land Riding Retainer |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Misalignment: | ±2.0° Misalignment - Static Only | Misalignment Type: | Static Only |
| Housing Color: | Gray | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| UPC: | 662461013762 | Weight: | 6.64 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
