- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK35

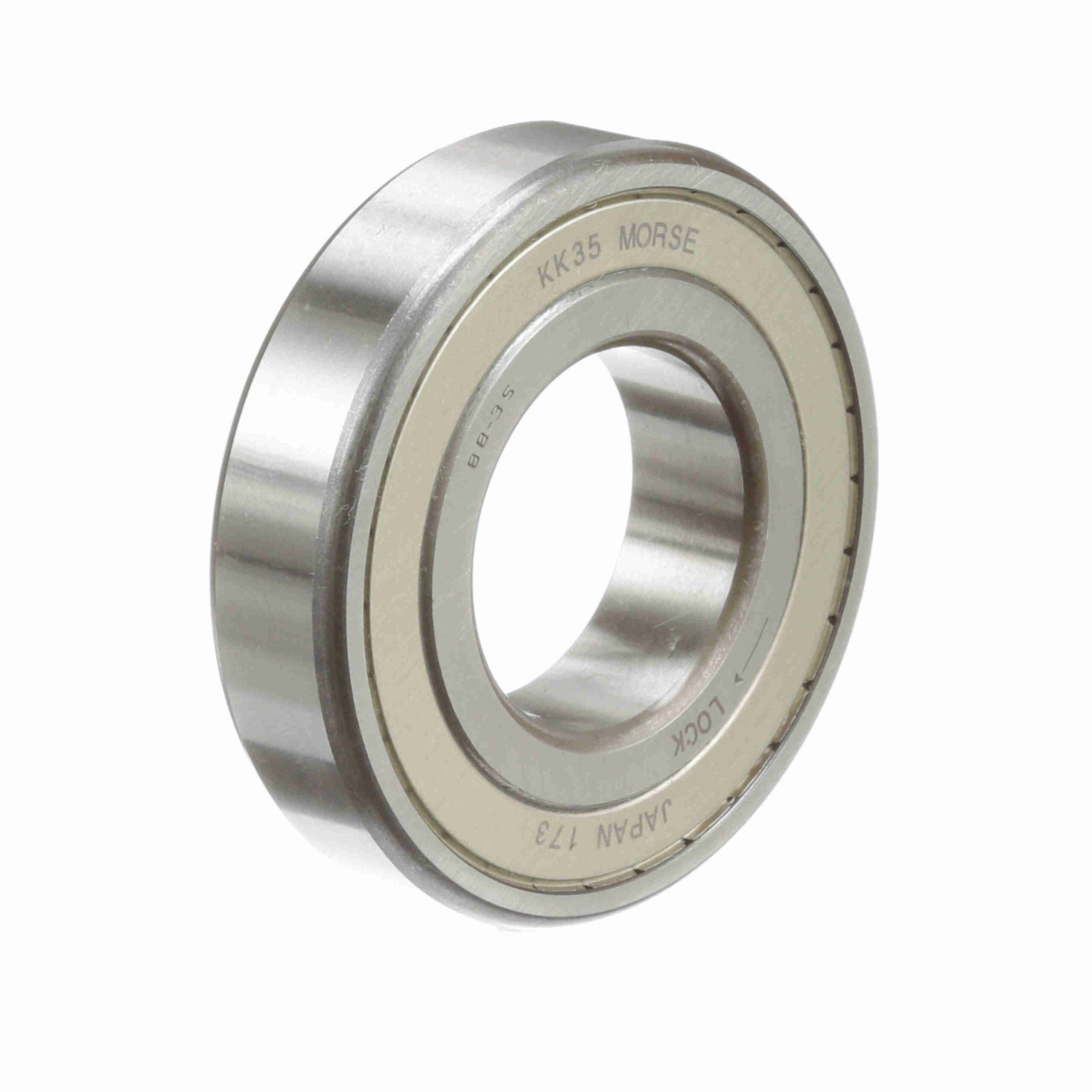

Morse KK Series CAM Clutch – KK35
$559.00
Out of stock
Out of stock
| Mounting Housing Diameter: | 2.834/2.8333 | Lubrication Type: | Grease |
|---|---|---|---|
| Dynamic Radial Load Rating (lb): | 3034.9 | Overall Diameter (mm): | 72 mm |
| Corner Radius: | 1.1 | Type: | CAM Clutches |
| Static Radial Load Rating (lb): | 2180.6 | RPM Max. -inner Race: | 1, 800 |
| RPM Max. - Outer Race: | 1000 | Overall Width (in): | 0.669 in |
| Overall Diameter (in): | 2.835 in | Mounting Shaft Diameter: | 1.3793/1.3787 |
| Add'l Bearing Support Requirement: | No | Backstopping Clutch: | Yes |
| Bore Size (mm): | 35 mm | Overrunning Clutch: | Yes |
| Indexing Clutch: | Yes | Product Type: | KK Series |
| Rated Torque Capacity (ft.-lbs.): | 127.6 | UPC: | 662288927549 |
| Weight: | 0.70 LB | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
