- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
U-5212-B

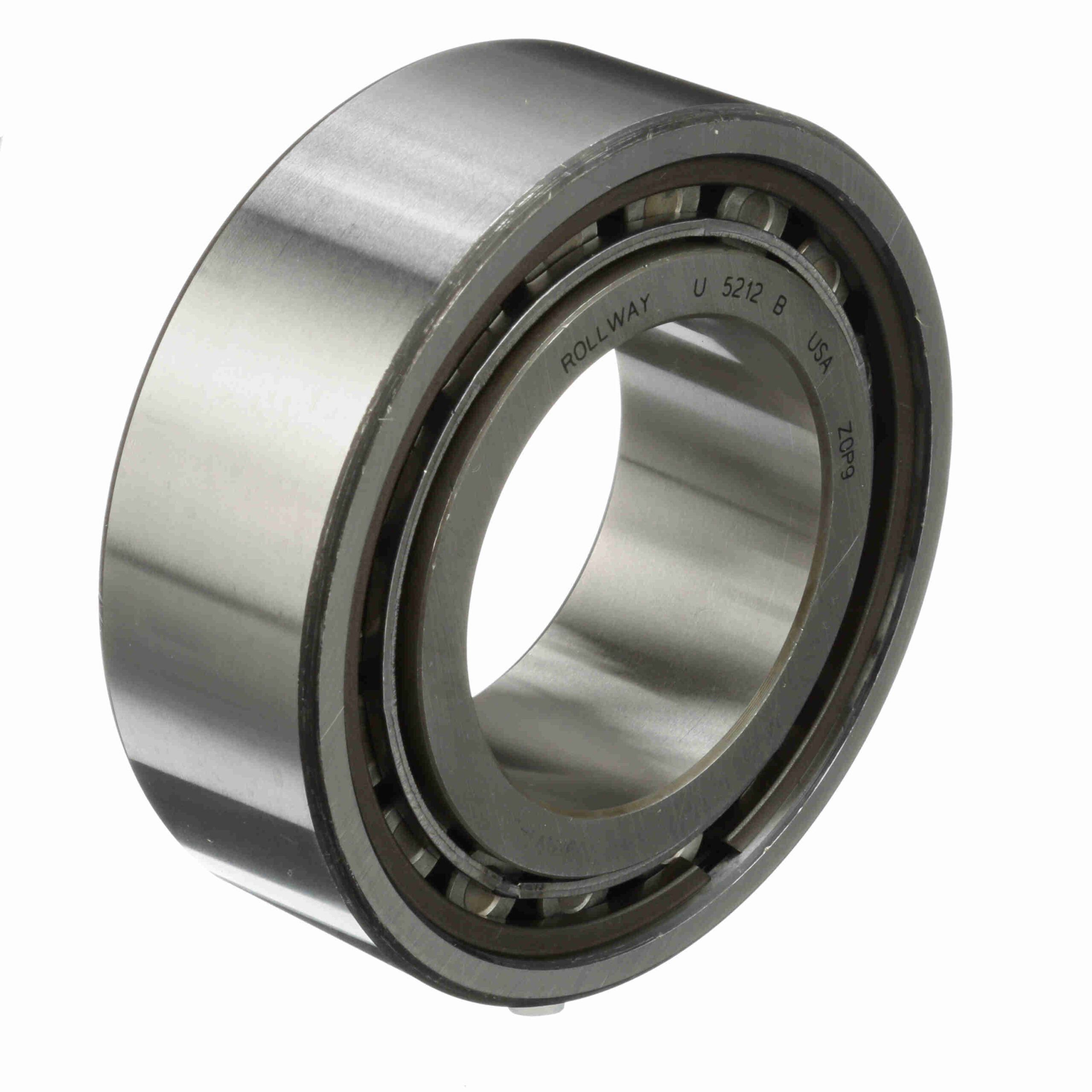

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – U-5212-B
$412.57
Availability: 7 in stock
Availability: 7 in stock
| Dynamic Load Rating (kN): | 135.225936640001 kN | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Seal Type: | Unsealed | Flanges: | (2) Flanges on Inner Ring, Snap Rings Inside Outer Ring |
| Inner Race Configuration: | Non-Separable | Static Load Rating (kN): | 174.770626664001 kN |
| Cage Material: | Steel | Bore Type: | Straight |
| Misalignment: | No | Radial Clearance: | Normal |
| Rolling Element: | Cylindrical Roller | Number of Rows: | 1 |
| Material: | High Chromium Bearing Steel | Duplexing: | No |
| Full Complement/Caged: | Caged | Platform: | Cylindrical Radial |
| Dynamic Load Rating (lb): | 30, 400 lb | Sealed: | None |
| Static Load Rating (lb): | 39, 290 lb | Snap Ring: | No |
| Separable: | Nonseparable | Profile: | Complete with Outer and Inner Race |
| Retainer: | Yes | UPC: | 637410040595 |
| Weight: | 3.51 LB | Packaged Length: | 6.4 Inches |
| Packaged Width: | 7.2 Inches | Packaged Height: | 2.6 Inches |
| HTC: | 8482.50.0000 | Country of Origin: | Mexico |
