- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
RPB 215-2

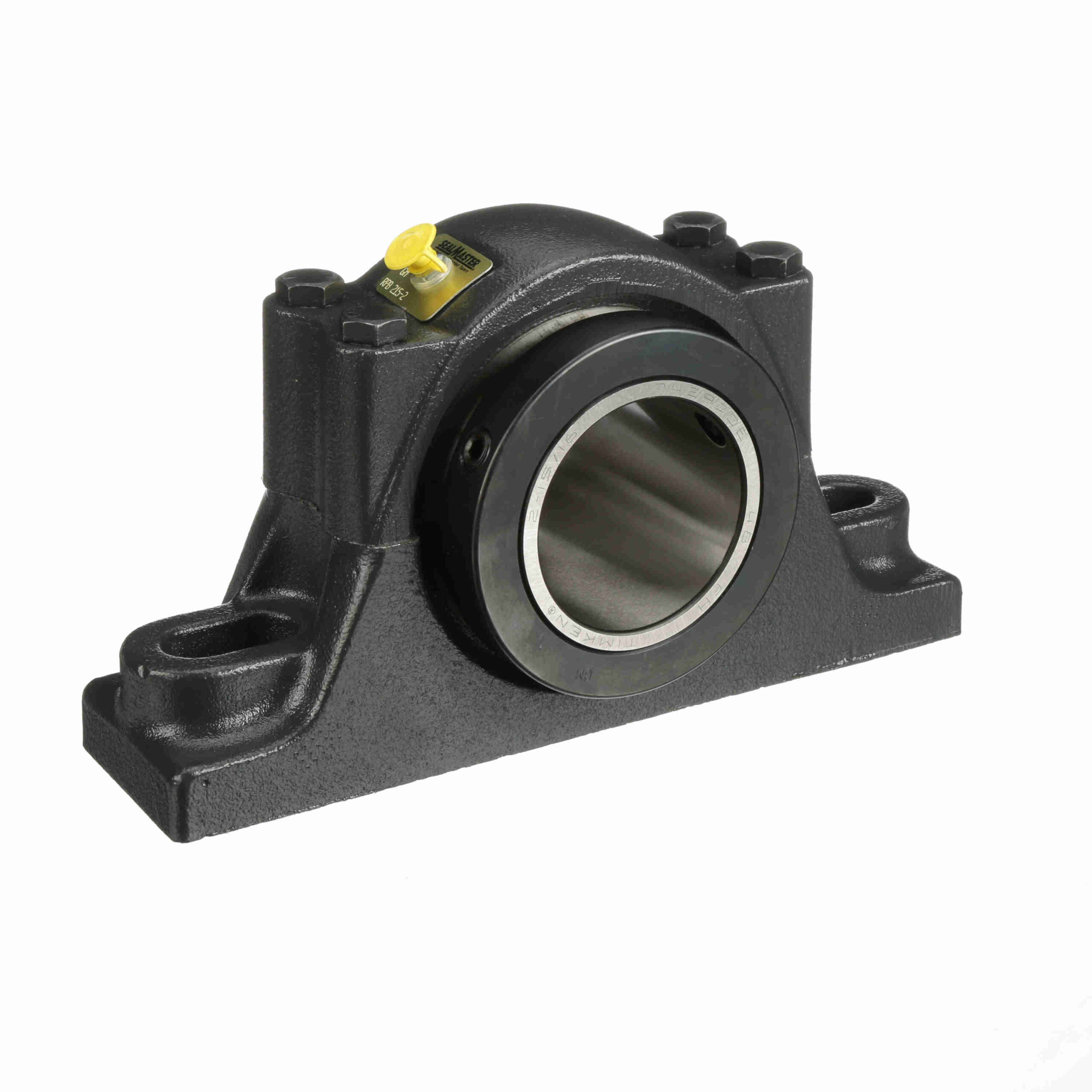

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – RPB 215-2
$1,030.72
Availability: 2 in stock
Availability: 2 in stock
| Housing Type: | Pillow Block; Two Bolt | Housing Base: | Solid |
|---|---|---|---|
| Seal Type: | Felt Labyrinth Seal | Inner-Race Heat-Treat Method: | Case Carburized Inner Ring |
| Insert Material: | 52100 Bearing Steel | Housing Material: | Cast Iron |
| Maximum Operating Temperature: | 220 °F | Expansion: | No |
| Rolling Element: | Tapered Roller | Measure Units: | Inch |
| Housing Construction: | Split Two Piece | Speed (Max): | 1750 |
| Lubrication: | Lithium; EP; NLGI#2 | Duty Series: | Standard |
| Insert No.: | RCI-215 | Internal Clearance: | Standard |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Locking Type: | Double Collar Mount | Misalignment: | ±3.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 9, 630 | Housing Color: | Gray |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Platform: | RPB Series | Retainer Material: | Steel |
| Outer Ring Land Profile: | Standard | End Cap: | No |
| Bearing Insert Coating: | Uncoated | Series: | RPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288480075 |
| Weight: | 29.30 LB | Packaged Length: | 12.13 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 4.63 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
