- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MP-31

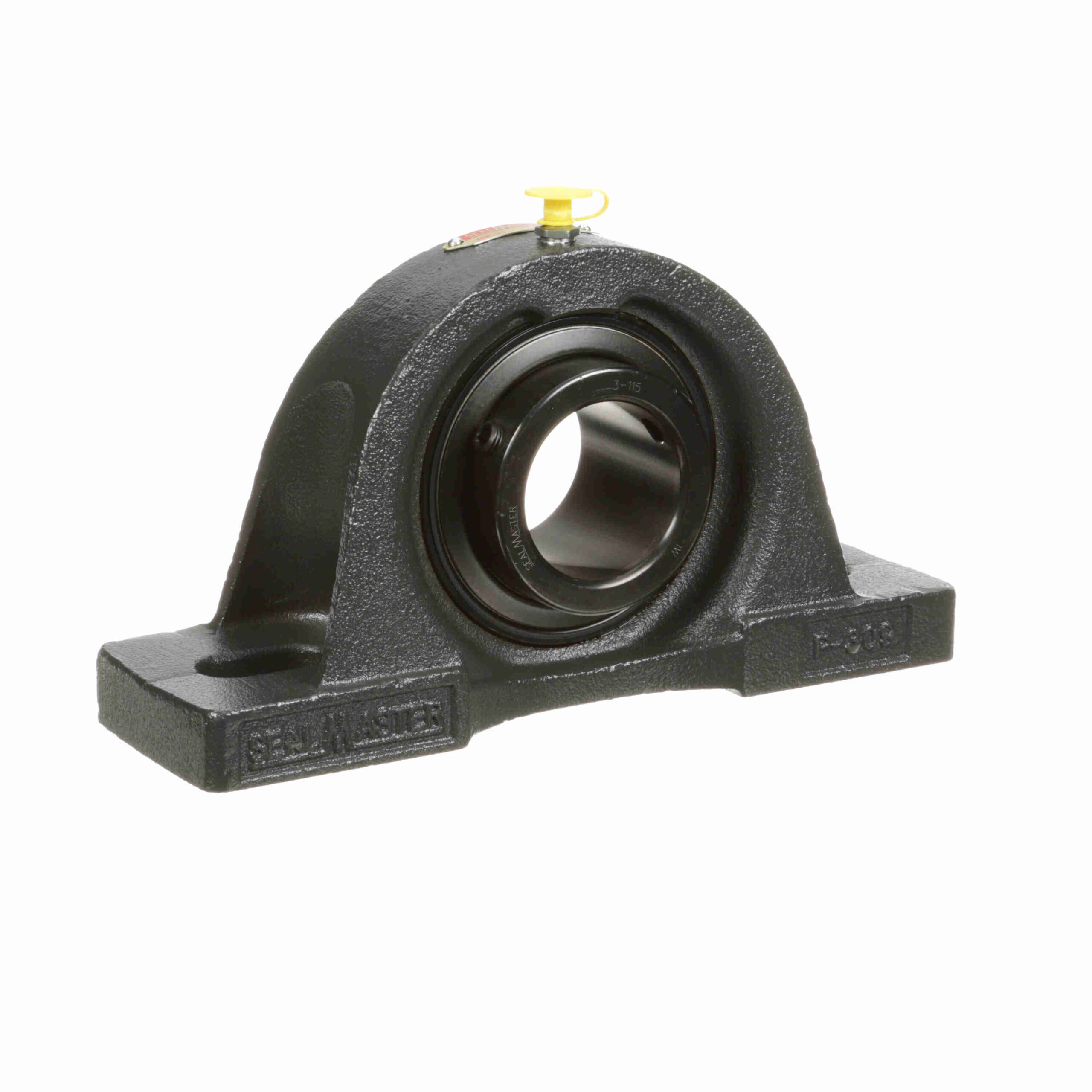

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MP-31
$244.83
Availability: 19 in stock
Availability: 19 in stock
| Rolling Element: | Ball Bearing | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
| Internal Clearance: | Standard | Speed (Max): | 3250 |
| Insert No.: | 3-115 | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Retainer Type: | Land Riding Retainer |
| Housing Base: | Solid | Housing Type: | Pillow Block; Two Bolt |
| Duty Series: | Medium Duty | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Locking Type: | Setscrew | Misalignment: | ±2.0° Misalignment - Static Only |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Misalignment Type: | Static Only | End Cap: | No |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 6, 601 |
| UPC: | 662461013830 | Weight: | 11.60 LB |
| Packaged Length: | 9.68 Inches | Packaged Width: | 5.69 Inches |
| Packaged Height: | 3.19 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
