- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- This general bearing clutch can be utilized with both oil and grease lubrication. Self contained ball bearing and cam clutch
- KK Clutch is available in several configurations with different sealing options and inner and outer keyway options.
KK25

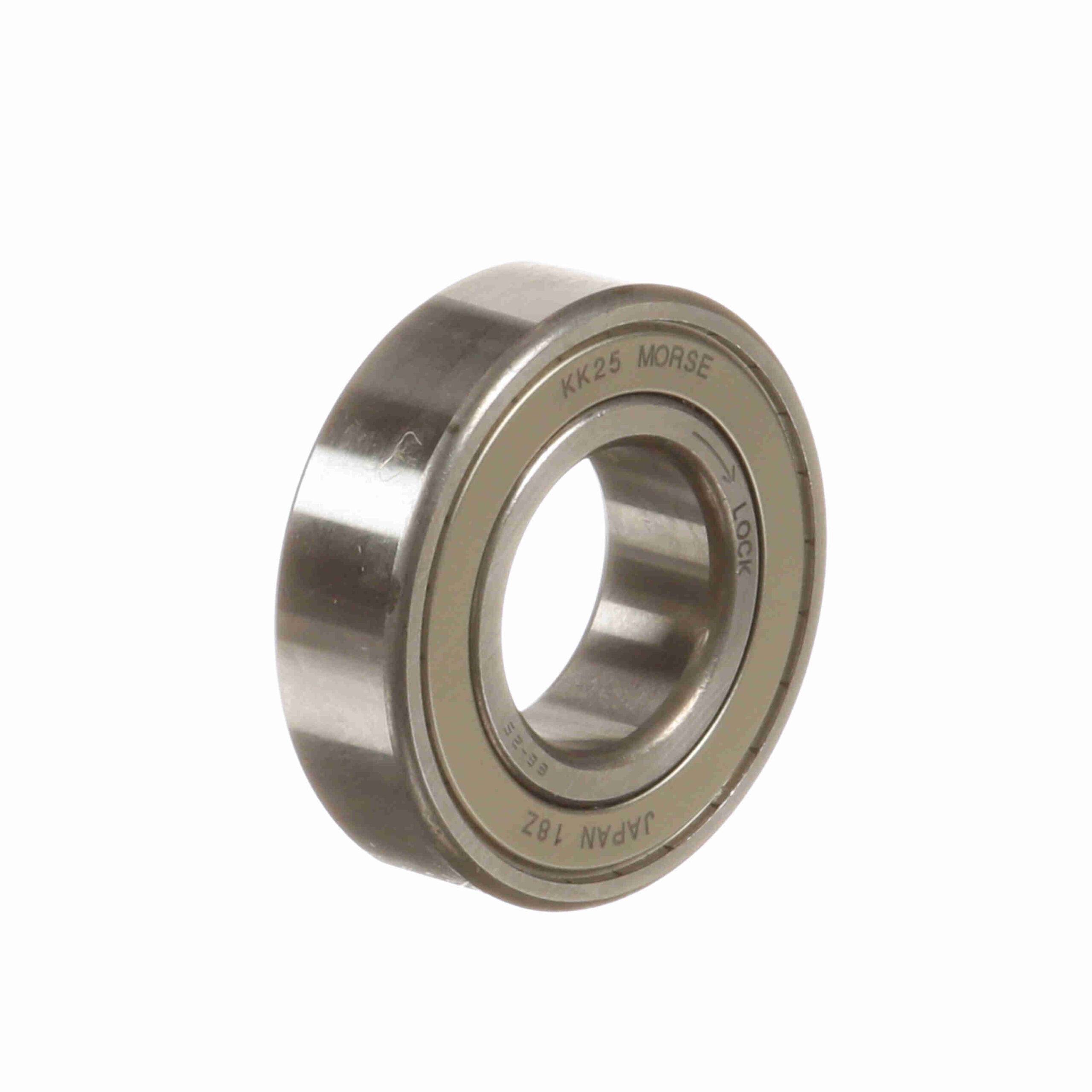

Morse KK Series CAM Clutch – KK25
$410.41
Out of stock
Out of stock
| Static Radial Load Rating (lb): | 1416.3 | Type: | CAM Clutches |
|---|---|---|---|
| RPM Max. - Outer Race: | 1400 | RPM Max. -inner Race: | 2, 500 |
| Overall Diameter (mm): | 52 mm | Dynamic Radial Load Rating (lb): | 2405.5 |
| Lubrication Type: | Grease | Overall Width (in): | 0.591 in |
| Corner Radius: | 1 | Overall Diameter (in): | 2.047 in |
| Mounting Shaft Diameter: | 0.9854/0.9849 | Mounting Housing Diameter: | 2.0466/2.0459 |
| Add'l Bearing Support Requirement: | No | Indexing Clutch: | Yes |
| Product Type: | KK Series | Bore Size (mm): | 25 mm |
| Backstopping Clutch: | Yes | Rated Torque Capacity (ft.-lbs.): | 57.5 |
| Overrunning Clutch: | Yes | UPC: | 662288927440 |
| Weight: | 0.33 LB | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
