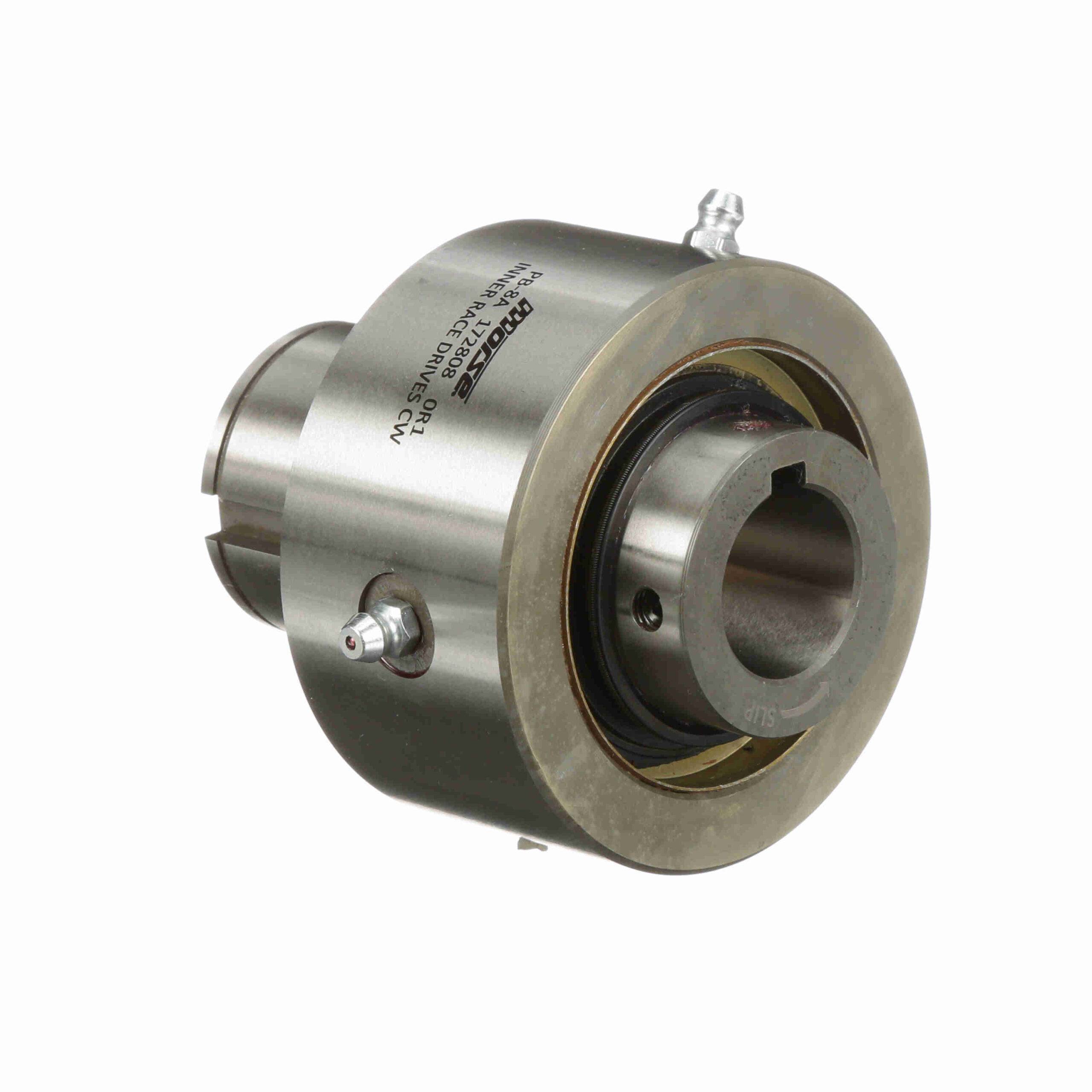

PB-8A CLUTCH 1.00B RH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
PB series clutch features precision formed cams providing high torque capacities with excellent wear life. These models are suitable for general duty applications.
A bonze seal maintains race concentricity. They a asymmetrical by design, so must be ordered according to rotation requirements.

Snap Ring (Not Furnished):	RS175	Type:	CAM Clutches
Keyway:	1/4 x 1/8	Model:	PB-8A
RPM Max. - Inner Race:	1600	Lubrication Type:	Grease
Keyway Length (in):	1.0625 in	Groove Diameter:	1.696/1.686
Mounting Diameter (in):	1.750/1.749 in	Overall Diameter (in):	3.25 in
RPM Max. - Outer Race:	650	Overall Width (in):	3.5625 in
Hub Diameter (in):	1.625 in	Key for Bore Size:	1/4 x 1/8
Major Diameter Width (in):	1.6875 in	Groove Width:	.056/.076
Length to Snap Ring Groove (in):	1.75 in	Configuration:	RH
Length to Groove:	1.315/1.320	Mounting Length (in):	1.4375 in
Add'l Bearing Support Requirement:	No	Rated Torque Capacity (ft.-lbs.):	450
Backstopping Clutch:	Yes	Product Type:	PB Series
Bore Size (in):	1 in	Indexing Clutch:	Yes
Overrunning Clutch:	Yes	UPC:	662288408116
Weight:	4.14 LB	Packaged Length:	4.70 Inches
Packaged Width:	4.40 Inches	Packaged Height:	4.30 Inches
HTC:	8483.60.4040	Country of Origin:	Mexico
