- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
T25LX3/4

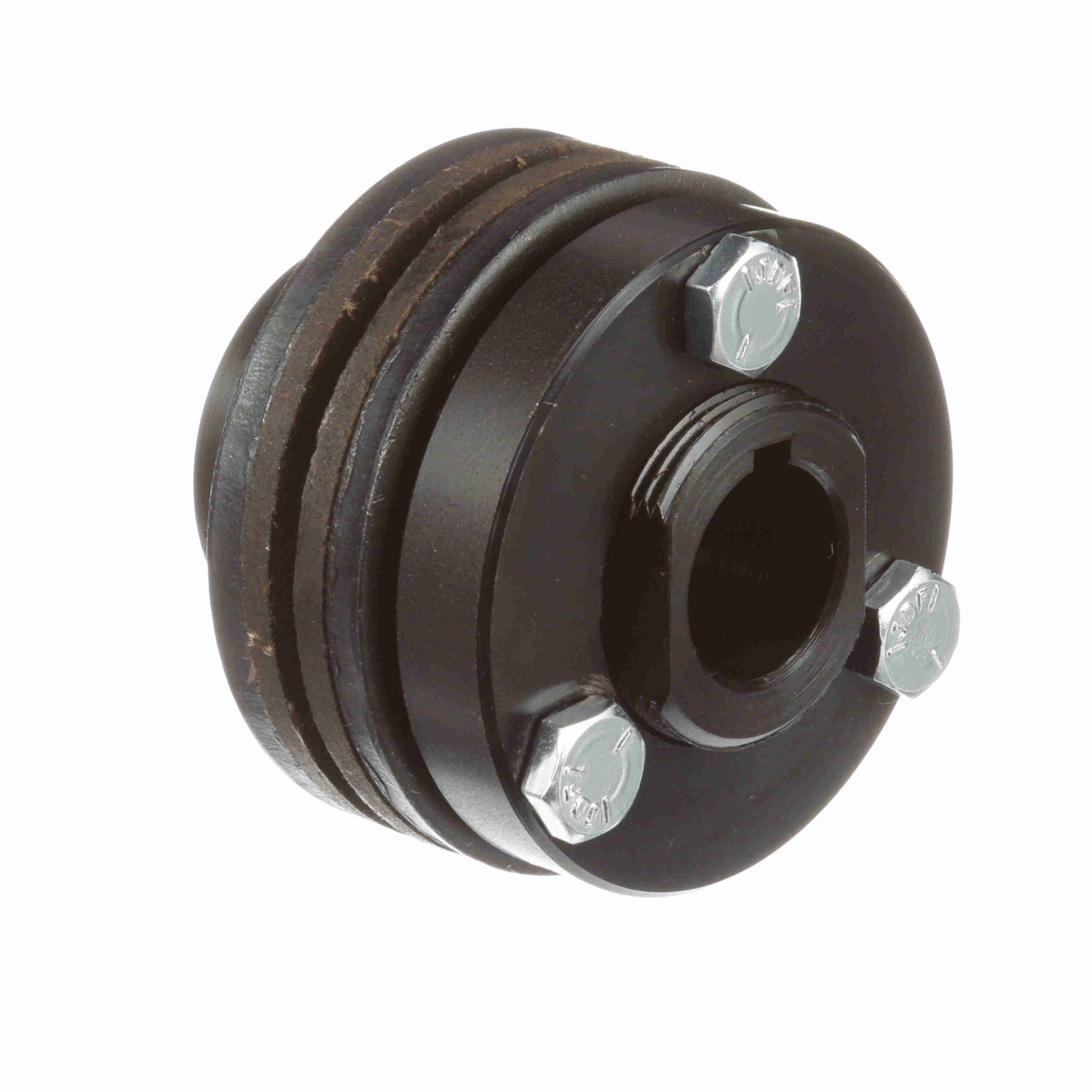

Browning Torque Limiter Model – T25L – T25LX3/4
$328.62
Out of stock
Out of stock
| Total Length (in): | 2.0625 in | Total Length (mm): | 52.3875 mm |
|---|---|---|---|
| Disconnect Method: | Friction Pad | Reset Type: | Automatic |
| Type: | Torque Overload Devices | Detection Method: | Friction Pad |
| Unit Accuracy: | 0.25 | Sensor Plate: | No |
| Torque [Max] (in-Ibs) (2 Spring): | 1, 100 | Outside Diameter (mm): | 63.5 mm |
| Backlash: | Zero | Series / Model: | T25L |
| F (2 Spring): | 0.9375 | Bore Size (mm): | 19.05 mm |
| Outside Diameter (in): | 2.5 in | Sprocket: | T25L |
| Bore Size (in): | 0.75 in | Torque [Max] (in-Ibs) (1 Spring): | 800 |
| Bore Shape: | Straight Bore | Recovery Style: | Automatic |
| F (1 Spring): | 0.875 | Max RPM: | 1, 400 |
| Torque [Max] (N-m): | 90.4 | Product Type: | Torque Limiter |
| Torque Capacity [Max] (lb-ft): | 91.6666666666667 | Bore (Max) (in): | 0.75 in |
| Torque Capacity [Min] (lb-ft): | 0 | Torque Capacity [Max] (in-lb): | 800 |
| Bore (Min) (in): | 0.75 in | Bore Type: | Finished w/ Keyway |
| Minimum Sprocket Teeth: | #35 (25 Teeth) | 1 | 0 |
