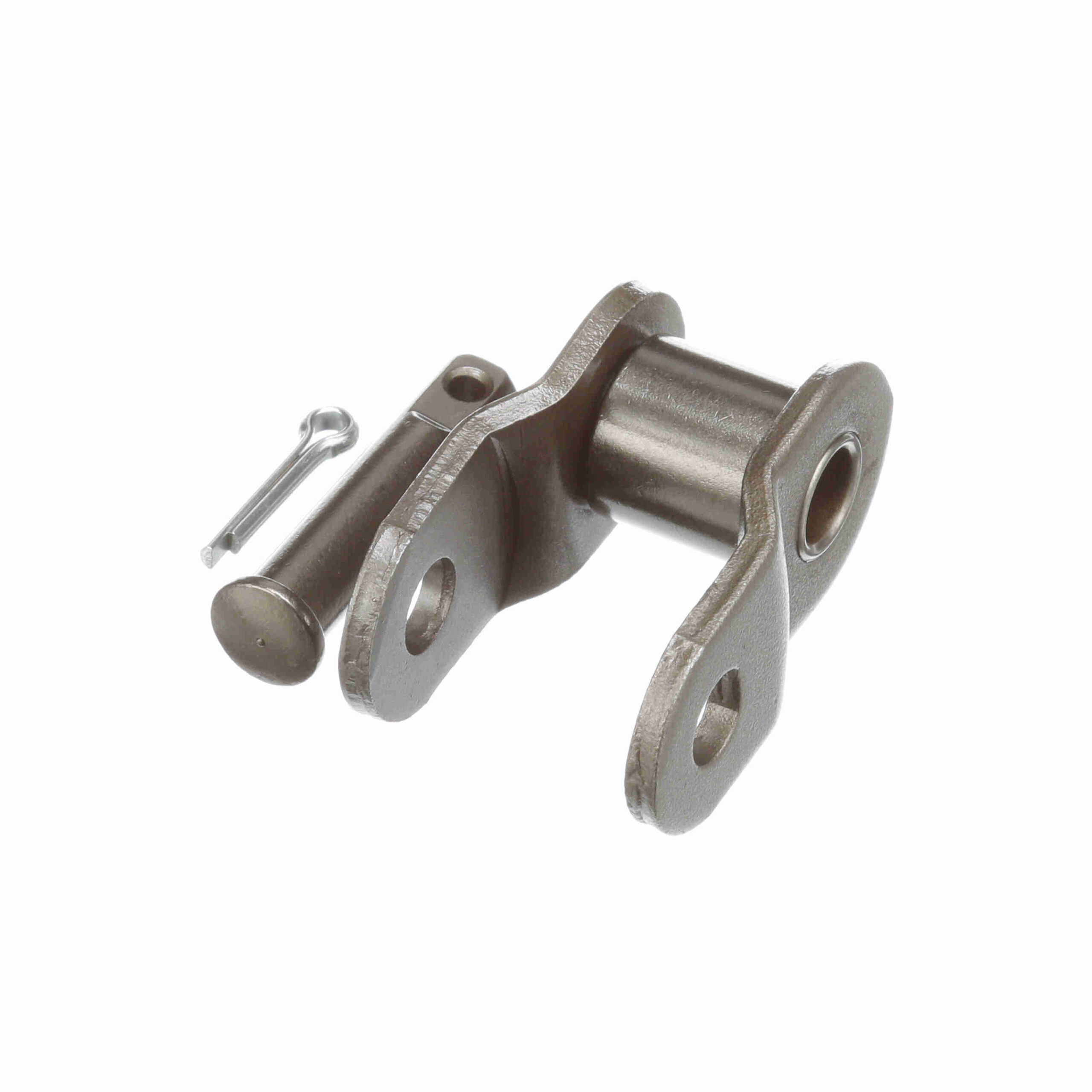

J80 O/S C/L

Exceptional Quality and Performance in Browning Chain
Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Average Ultimate Tensile Strength (psi):	14, 500	Number of Strands/Width:	1
Inside Plate Height:	0.934	Roller Diameter (in):	0.625 in
Centerline to Opposite cotter Pin Side:	0.637	Roller Width (in):	0.625 in
Centerline to Outside of cotter Pin:	0.741	Material:	Steel
Chain Size:	80	Plate Thickness:	0.125
Pin Diameter (in):	0.312 in	Chain Type:	Standard
Chain Pitch (in):	1 in	Product Type:	Roller Chain
Chain Construction:	Cottered	Link Type:	Offset Connecting
UPC:	662289118342	Weight:	0.16 LB
Packaged Length:	2.20 Inches	Packaged Width:	2.55 Inches
Packaged Height:	1.15 Inches	HTC:	7315.19.0000
Country of Origin:	Taiwan, Republic of China
