- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
40-2 O/L

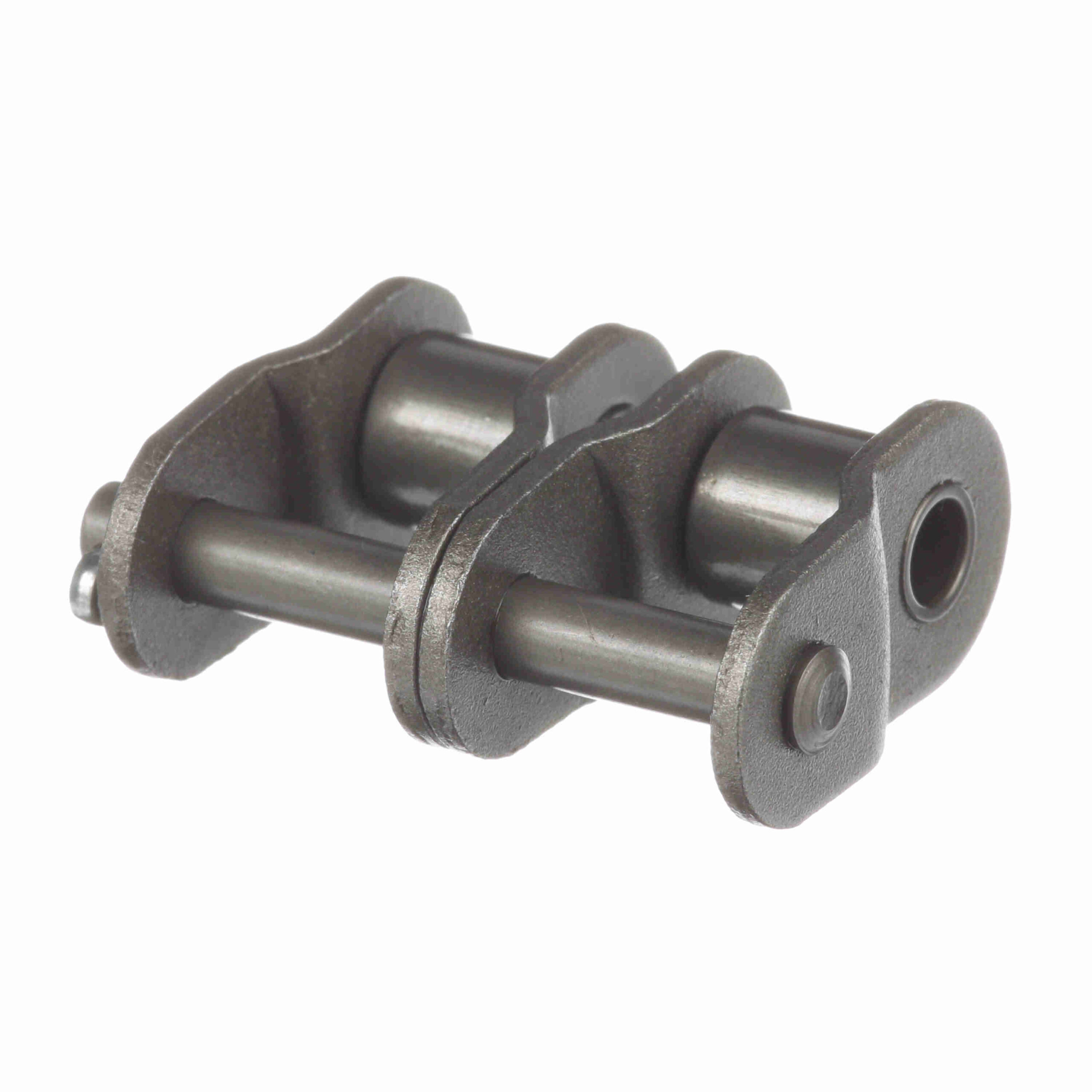

Morse Standard Roller Chain Offset Link – 40-2 O/L
$13.58
Out of stock
Out of stock
| Roller Diameter (in): | 0.312 in | Width Over Pins/Total Width: | 1.215 |
|---|---|---|---|
| Plate Thickness: | 0.06 | Single Pitch Offset Link: | Cottered |
| Pin Diameter (in): | 0.156 in | Inside Plate Height: | 0.466 |
| Centerline to Outside of cotter Pin: | 0.662 | Material: | Steel |
| Side Plate Cfg.: | Hourglass | Average Ultimate Tensile Strength (psi): | 7, 400 |
| Roller Width (in): | 0.3125 in | Centerline to Opposite cotter Pin Side: | 0.597 |
| Chain Size: | 40 | Chain Pitch (in): | 1.75 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Link Type: | Offset Link | UPC: | 662288395508 |
| Weight: | 0.04 LB | Packaged Length: | 2.45 Inches |
| Packaged Width: | 2.05 Inches | Packaged Height: | 0.75 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
