- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J40-2 RIV 10 FT CH

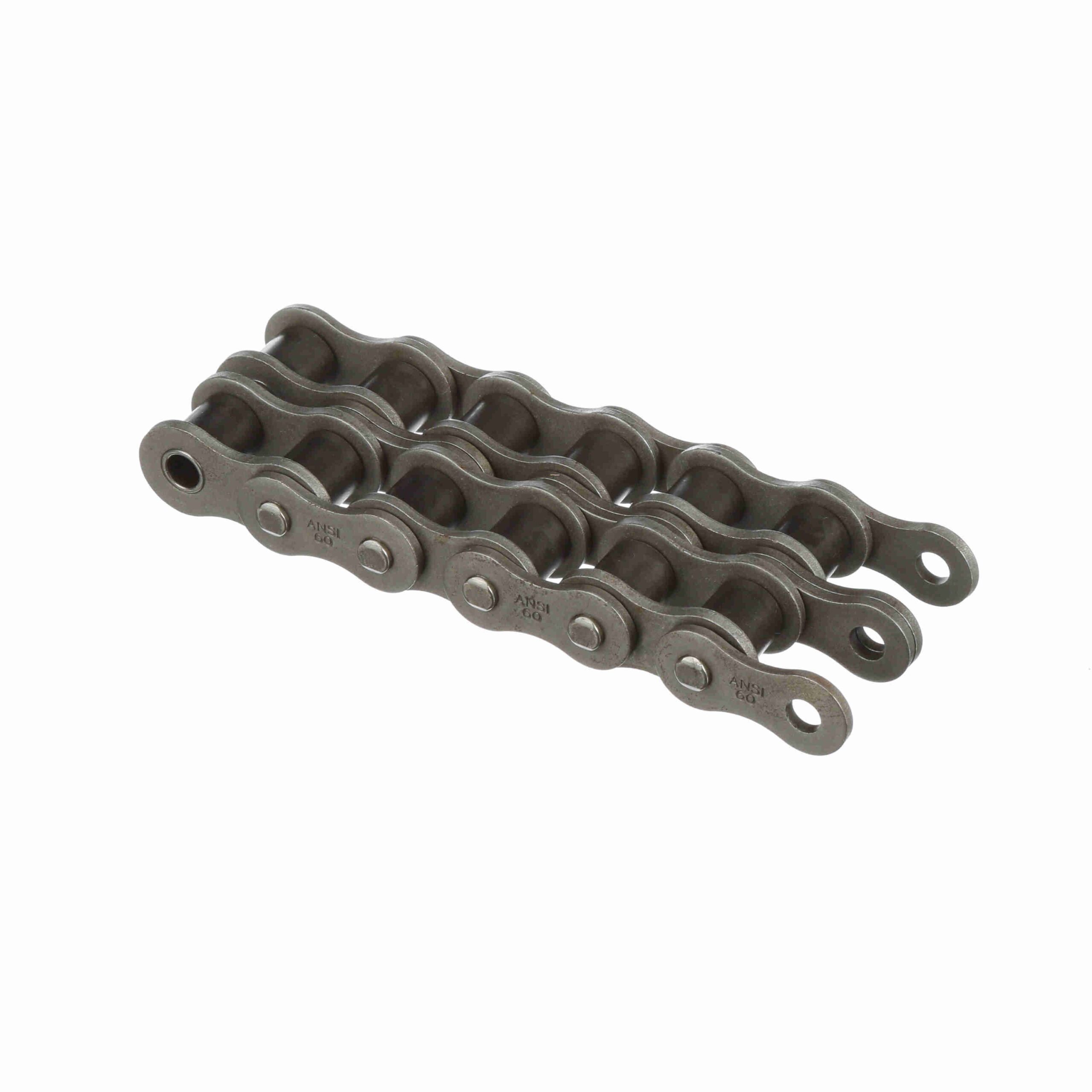

Browning Standard Riveted Roller Chain – J40-2 RIV 10 FT CH
$11.34
Out of stock
Out of stock
| Plate Thickness: | 0.06 | Chain Size: | 40 |
|---|---|---|---|
| Chain Construction: | Riveted | Number of Strands/Width: | 2 |
| Inside Plate Height: | 0.466 | Roller Diameter (in): | 0.312 in |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 0.315 |
| Centerline to Outside of cotter Pin: | 0.38 | Roller Width (in): | 0.3125 in |
| Average Ultimate Tensile Strength (psi): | 7, 400 | Pin Diameter (in): | 0.156 in |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Pitch (in): | 0.5 in | Width Over Pins/Total Width: | 0.7 |
| Coating: | Uncoated | Total Length: | 10 ft |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 0.566 |
| Measurement System: | Imperial | Pin Length - Riveted: | 1.216 |
| UPC: | 662289163731 | Weight: | 0.89 LB |
| Packaged Length: | 10.20 Inches | Packaged Width: | 9.90 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | Thailand |
