- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60R 100FT

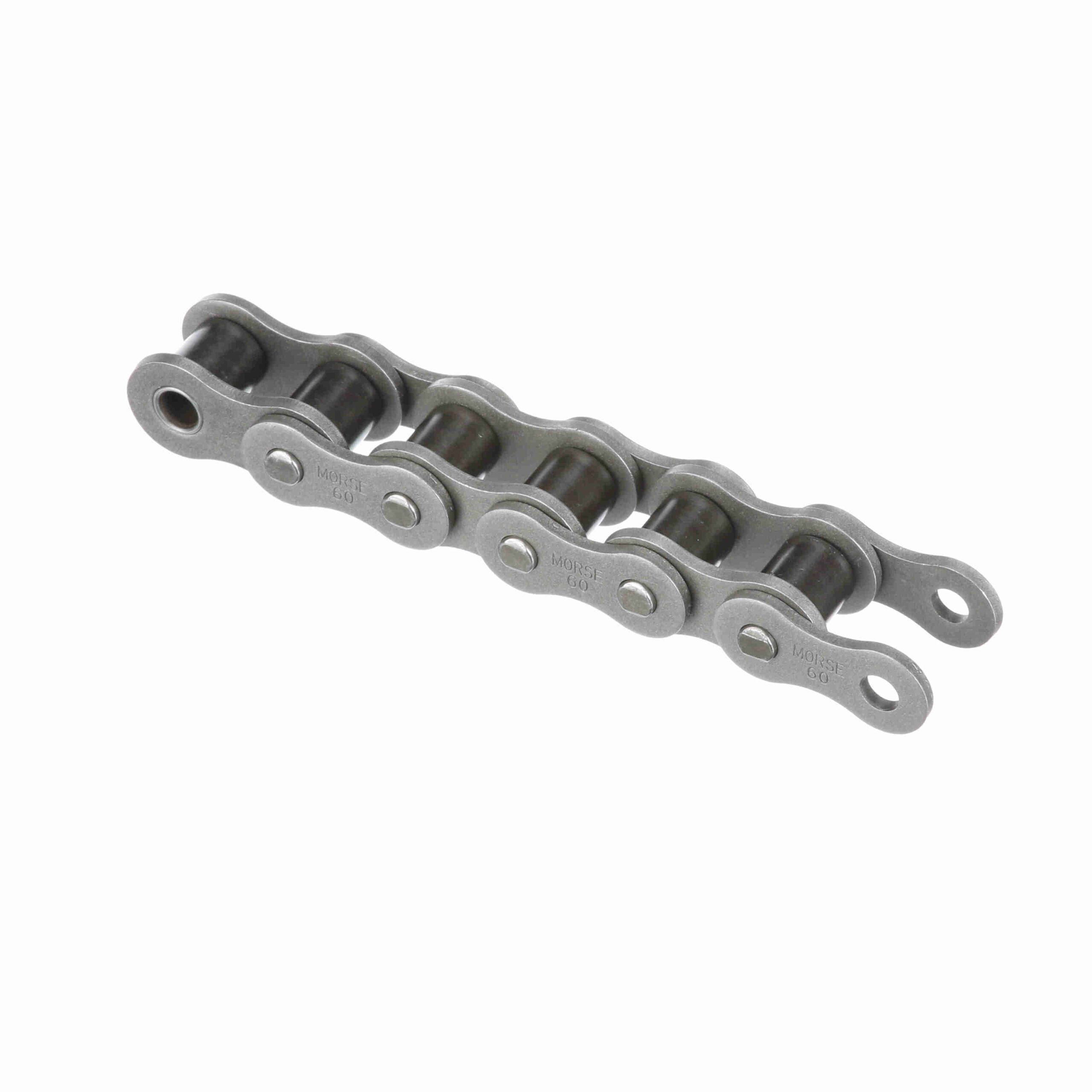

Morse Standard Riveted Roller Chain – 60R 100FT
$10.57
Out of stock
Out of stock
| Chain Construction: | Riveted | Centerline to Opposite cotter Pin Side: | 0.495 |
|---|---|---|---|
| Material: | Steel | Number of Connecting Links Included: | 10 |
| Average Ultimate Tensile Strength (psi): | 8, 500 | Roller Diameter (in): | 0.468 in |
| Inside Plate Height: | 0.7 | Pin Diameter (in): | 0.234 in |
| Centerline to Outside of cotter Pin: | 0.586 | Width Over Pins/Total Width: | 0.99 |
| Plate Thickness: | 0.094 | Number of Strands/Width: | 1 |
| Side Plate Cfg.: | Hourglass | Roller Width (in): | 0.5 in |
| Chain Size: | 60 | Chain Type: | Standard |
| Product Type: | Roller Chain | Chain Pitch (in): | 0.75 in |
| Total Length: | 100 FT ft | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 0.99 | UPC: | 662288395188 |
| Weight: | 1.06 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
