- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
120-2C 10FT

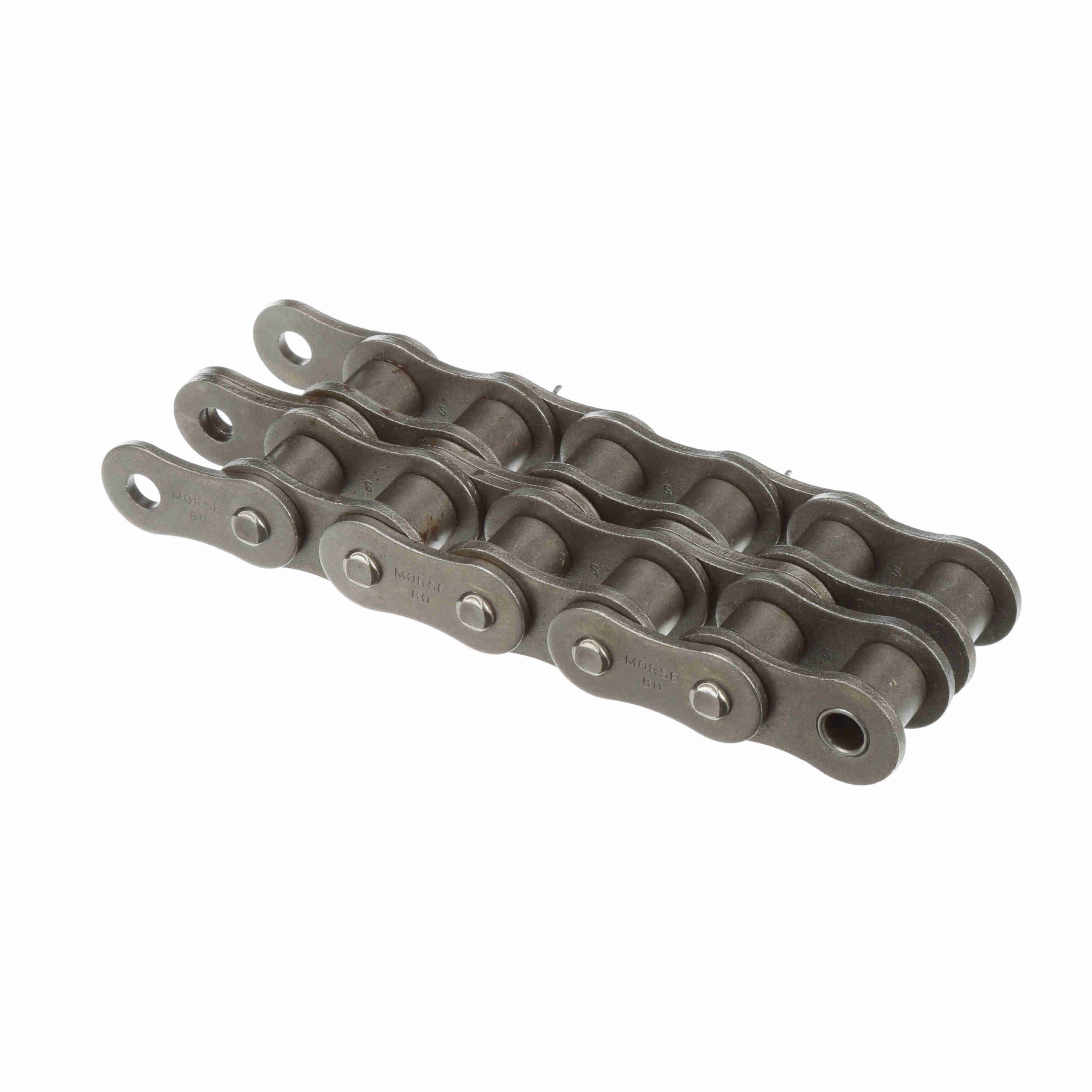

Morse Standard Cottered Roller Chain – 120-2C 10FT
$138.65
Out of stock
Out of stock
| Chain Construction: | Cottered | Material: | Steel |
|---|---|---|---|
| Chain Size: | 120 | Average Ultimate Tensile Strength (psi): | 68, 000 |
| Centerline to Outside of cotter Pin: | 2.047 | Roller Diameter (in): | 0.875 in |
| Number of Strands/Width: | 2 | Plate Thickness: | 0.187 |
| Inside Plate Height: | 1.4 | Center Plates: | Loose Fit, Press Fit Optional |
| Pin Diameter (in): | 0.437 in | Side Plate Cfg.: | Hourglass |
| Roller Width (in): | 1 in | Number of Connecting Links Included: | 1 |
| Centerline to Opposite cotter Pin Side: | 1.874 | Width Over Pins/Total Width: | 3.749 |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.5 in | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 1.789 |
| Pin Length - Riveted: | 3.749 | UPC: | 662288455516 |
| Weight: | 8.20 LB | Packaged Length: | 15.50 Inches |
| Packaged Width: | 18.50 Inches | Packaged Height: | 5.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
