- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J120-2 CP 10 FT CH

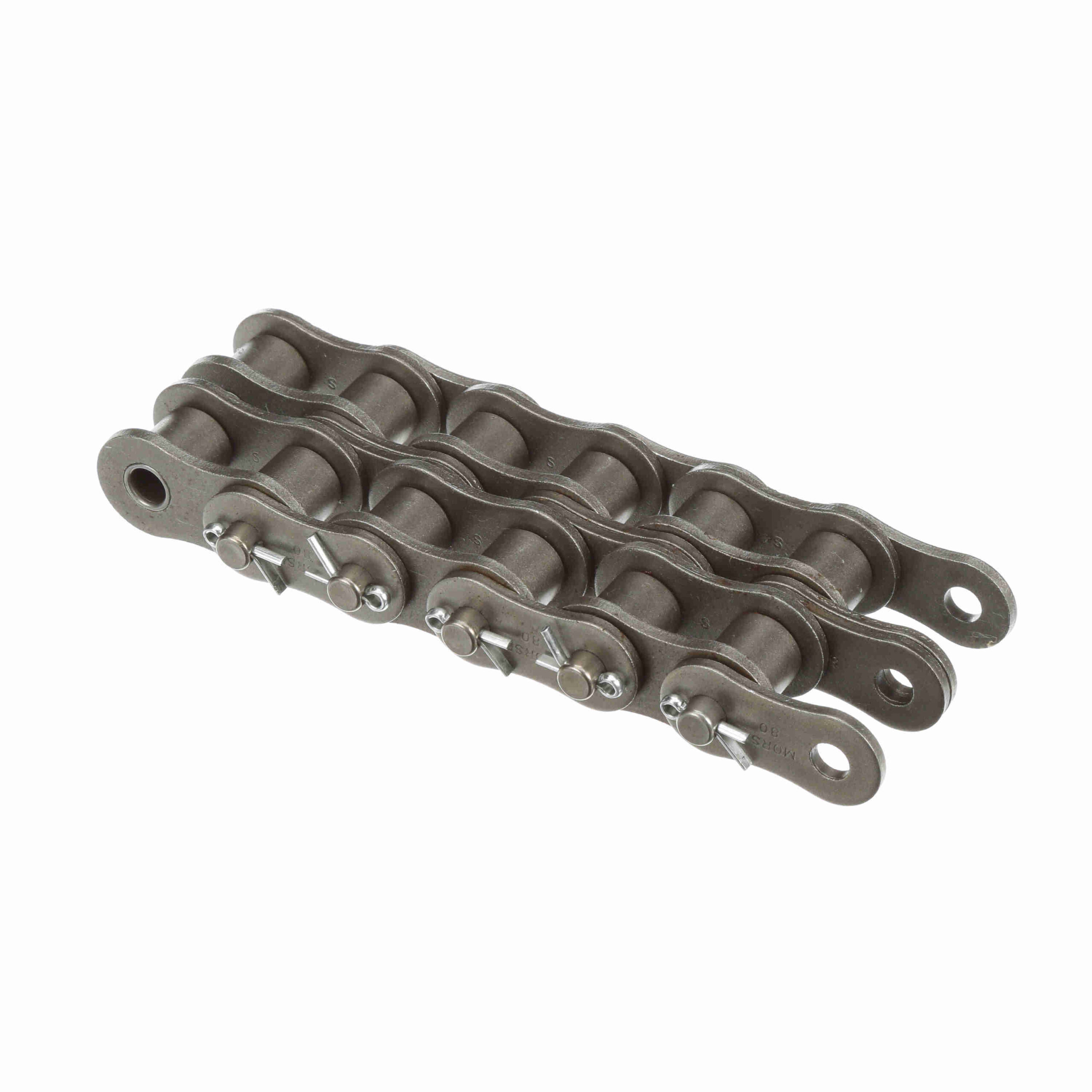

Browning Standard Cottered Roller Chain – J120-2 CP 10 FT CH
$121.50
Out of stock
Out of stock
| Average Ultimate Tensile Strength (psi): | 68, 000 | Chain Size: | 120 |
|---|---|---|---|
| Roller Width (in): | 1 in | Pin Diameter (in): | 0.437 in |
| Number of Strands/Width: | 2 | Centerline to Opposite cotter Pin Side: | 0.98 |
| Inside Plate Height: | 1.4 | Centerline to Outside of cotter Pin: | 1.15 |
| Roller Diameter (in): | 0.875 in | Material: | Steel |
| Plate Thickness: | 0.187 | Chain Construction: | Cottered |
| Chain Type: | Standard | Product Type: | Roller Chain |
| Chain Pitch (in): | 1.5 in | Total Length: | 10 ft |
| Coating: | Uncoated | Width Over Pins/Total Width: | 2.13 |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Transverse Pitch: | 1.789 | Pin Length - Riveted: | 3.951 |
| UPC: | 662289213894 | Weight: | 7.59 LB |
| Packaged Length: | 16.00 Inches | Packaged Width: | 19.00 Inches |
| Packaged Height: | 5.50 Inches | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
