- Exceptional Quality and Performance in Browning Chain
- Meets ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
J100 C/P C/L

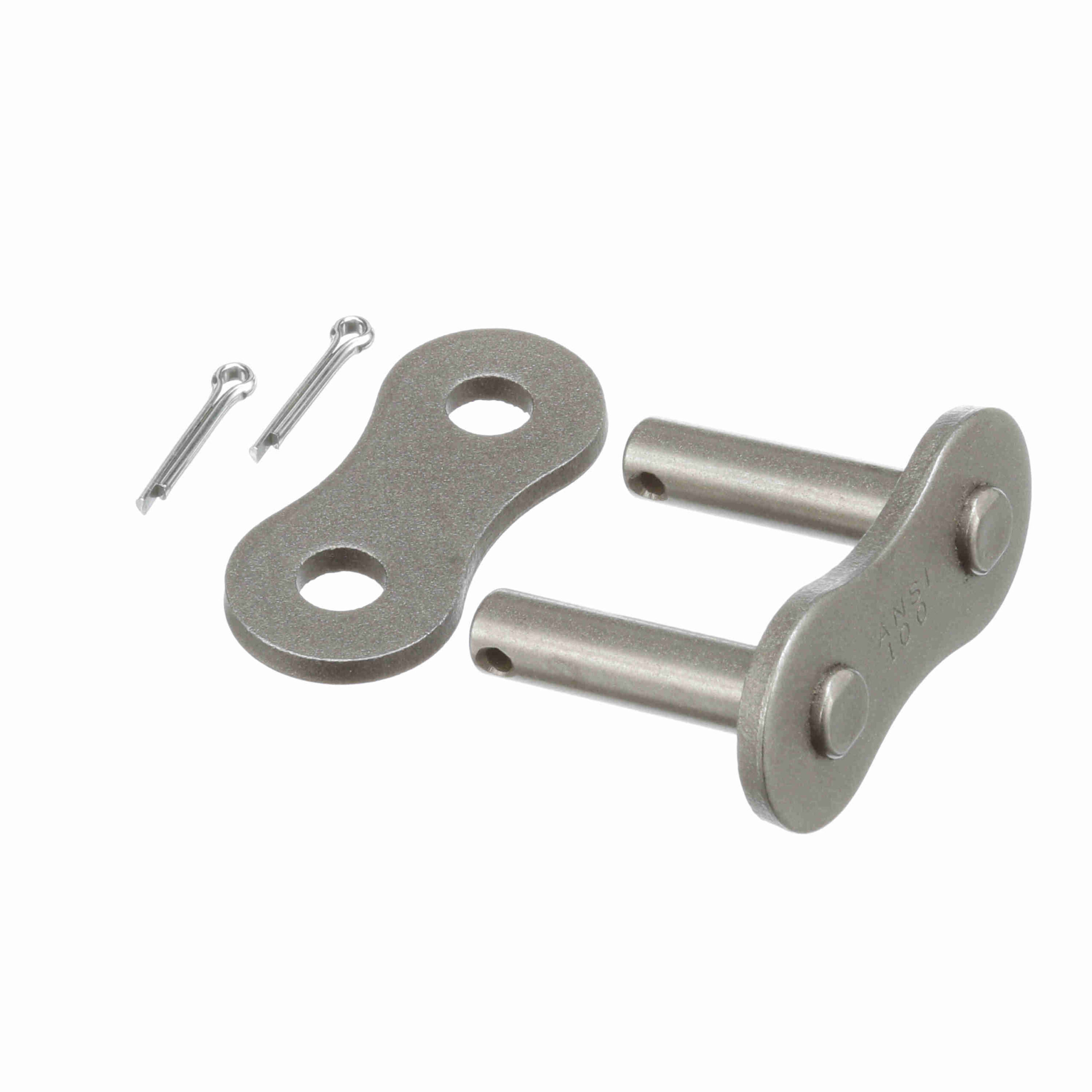

Browning Standard Cottered Roller Chain – J100 C/P C/L
Out of stock
| Number of Strands/Width: | 1 | Roller Diameter (in): | 0.75 in |
|---|---|---|---|
| Average Ultimate Tensile Strength (psi): | 24, 000 | Inside Plate Height: | 1.166 |
| Chain Size: | 100 | Chain Construction: | Cottered |
| Roller Width (in): | 0.75 in | Centerline to Outside of cotter Pin: | 0.923 |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 0.778 |
| Pin Diameter (in): | 0.375 in | Plate Thickness: | 0.156 |
| Chain Pitch (in): | 1.25 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Link Type: | Connecting |
| UPC: | 662289157877 | Weight: | 0.25 LB |
| Packaged Length: | 4.10 Inches | Packaged Width: | 3.25 Inches |
| Packaged Height: | 1.15 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
