- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK25X3/4

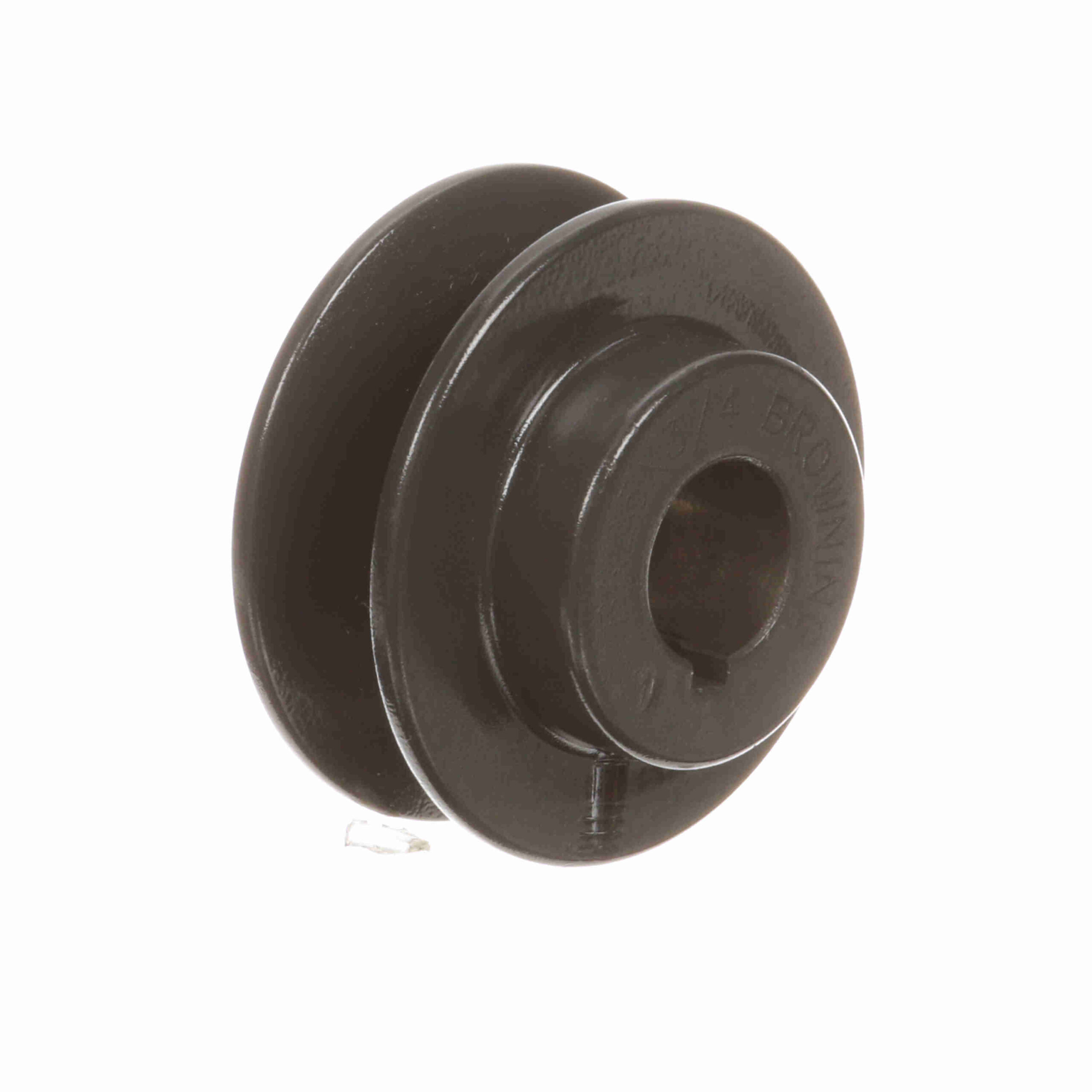

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK25X3/4
$84.28
Out of stock
Out of stock
| Number of Grooves: | 1 | Pitch Diameter (B): | 2.5 |
|---|---|---|---|
| Pitch Diameter (A): | 2 | Material: | Cast Iron |
| Warning: | Do not use these "BK" sheaves with "B" Gripnotch Belt ratings. | Outside Diameter (in): | 2.5 in |
| Model Name: | BK_Sheave_Master1 | Bore (in): | 0.75 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 4L or A, 5L or B |
| Bore Type: | Finished with Keyway and SS | Face Width (in): | 0.8125 |
| Pulley Construction: | Plain | Keyway Size: | 3/16 x 3/32 |
| Overall Width (in): | 1.21875 | Set Screw Thread: | 5/16-18UNC-3AX5/16 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289257584 |
| Weight: | 0.73 LB | Packaged Length: | 2.70 Inches |
| Packaged Width: | 2.70 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
