- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

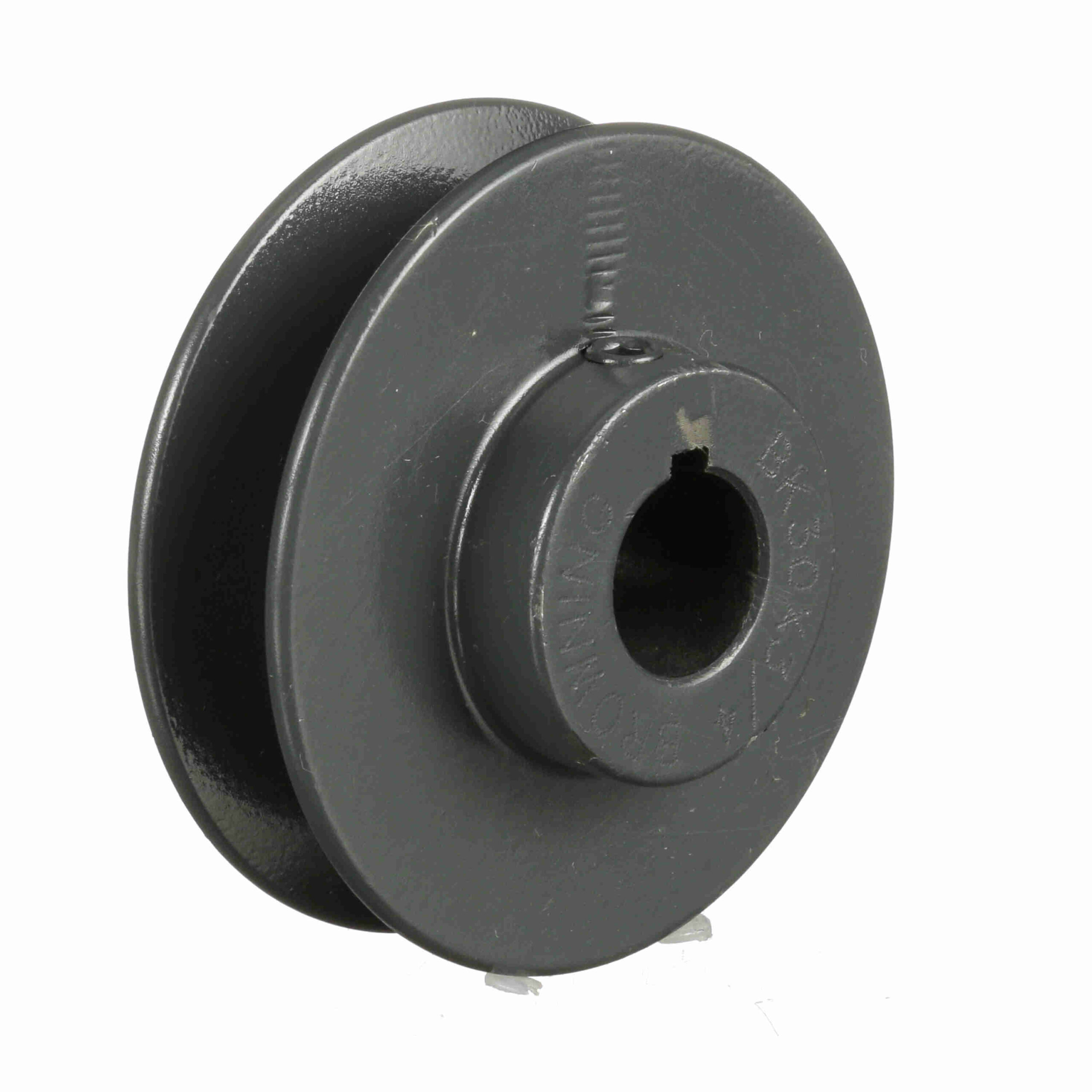

AK30X3/4
Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK30X3/4
$40.98
Out of stock
Out of stock
| Datum (3L): | 2.46 | Number of Grooves: | 1 |
|---|---|---|---|
| Model Name: | AK_Sheave_Master1 | Outside Diameter (in): | 3.05 in |
| Material: | Cast Iron | Warning: | Do not use these "AK" sheaves with bores 1" and under with gripnotch belt ratings. |
| Pitch Diameter (A): | 3 | Bore (in): | 0.75 in |
| Belt Section: | 4L or A, 3L | Product Type: | FHP - Finished Bore |
| Bore Type: | Finished with Keyway and SS | Overall Width (in): | 1.09375 |
| Pulley Construction: | Webbed | Face Width (in): | 0.6563 |
| Keyway Size: | .1875 | Set Screw Thread: | 5/16-18UNC-3AX5/16 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289136216 |
| Weight: | 1.03 LB | Packaged Length: | 3.20 Inches |
| Packaged Width: | 3.20 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
