- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.

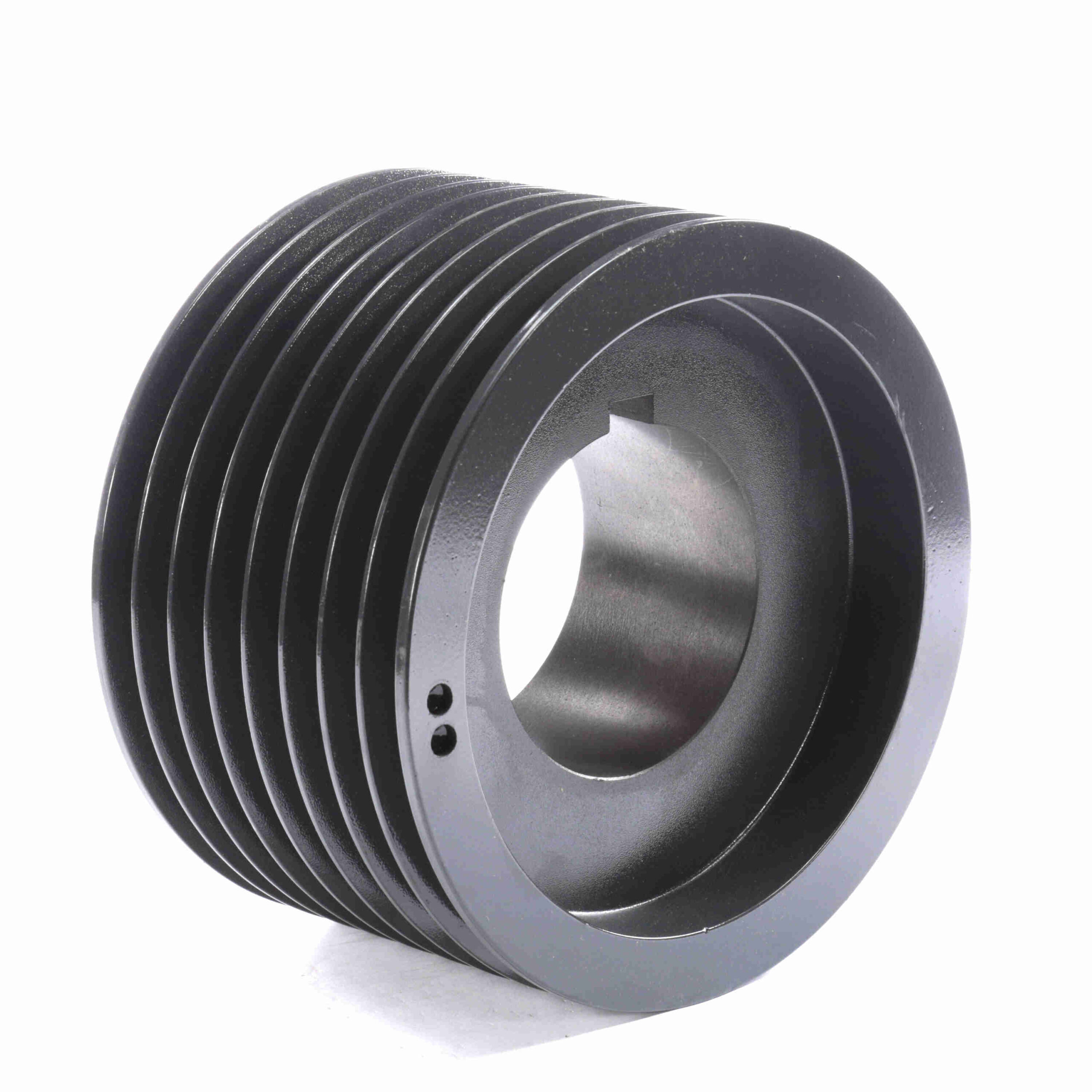

8S5V97
Browning 8 Groove Cast Iron Bushed Bore Multiple Sheave – 8S5V97
$1,041.19
Out of stock
Out of stock
| Pitch Diameter (5V): | 9.65 | Overall Length (in): | 6.015625 in |
|---|---|---|---|
| Bushing Used: | S1 | Material: | Cast Iron |
| Number of Grooves: | 8 | Pulley Material: | Cast Iron |
| Outside Diameter (in): | 9.75 in | Belt Section: | 5V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1.6875 in |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Face Width (in): | 5.8125 | Keyway Size: | .750 |
| Bushing Bore Range: | 1.6875 - 4.1875 | Overall Width (in): | 6 |
| UPC: | 662289290819 | Weight: | 53.00 LB |
| Packaged Length: | 9.75 Inches | Packaged Width: | 9.75 Inches |
| Packaged Height: | 6.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
