- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50G12

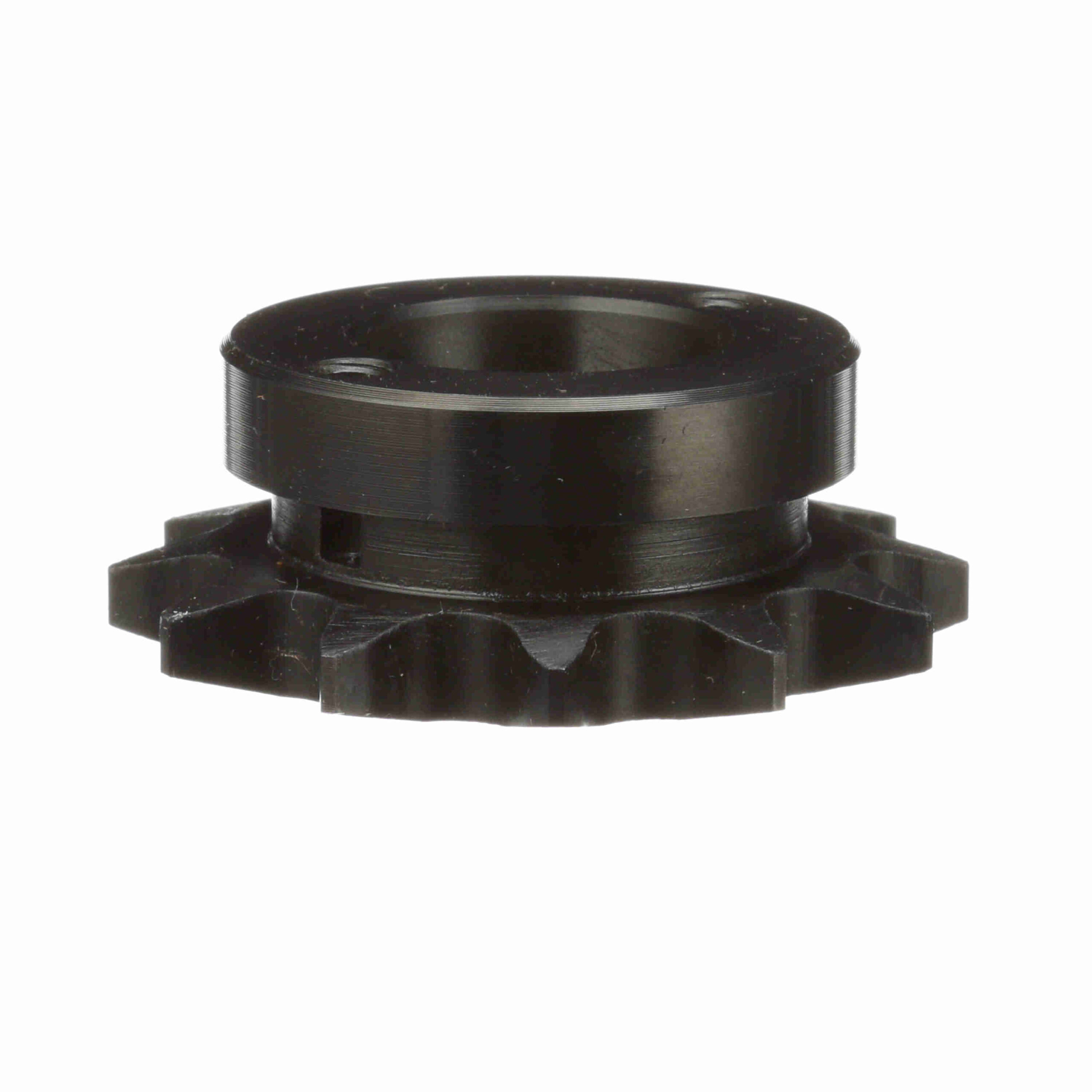

Browning Steel Bushed Bore Roller Chain Sprocket – H50G12
$93.10
Availability: 2 in stock
Availability: 2 in stock
| Material: | Steel, Hardened Teeth | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Pitch Diameter (in): | 2.415 in | Chain Pitch (in): | 0.625 in |
| Bore (Min) (in): | 0.375 in | Bushing Used: | Split Taper |
| Bore (Max) (in): | 1 in | Number of teeth: | 12 |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Overall Length (in): | 1.60625 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 2.708 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.015 in |
| Maximum Bore (in): | 1 | Minimum Bore (in): | 0.375 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.343 |
| Pitch Type: | Single | UPC: | 662289155002 |
| Weight: | 1.05 LB | Packaged Length: | 3.40 Inches |
| Packaged Width: | 3.10 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
