- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6TC80

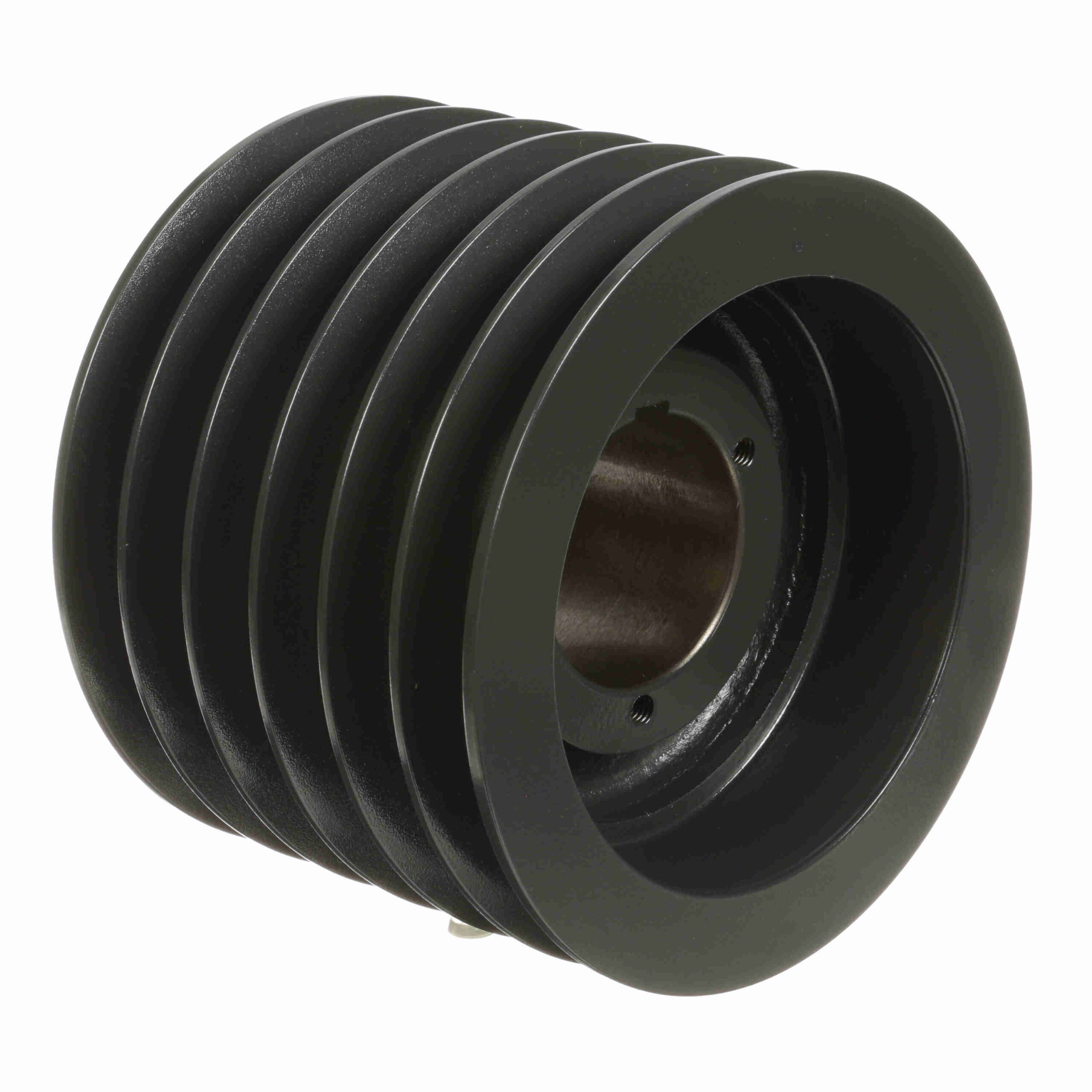

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6TC80
Out of stock
| Pulley Material: | Cast Iron | Overall Length (in): | 6.25 in |
|---|---|---|---|
| Pitch Diameter (C): | 8.4 | Datum Diameter (C): | 8 |
| Bushing Used: | Q2 | Model Name: | 6TC-L_Sheave_Master |
| Outside Diameter (in): | 8.4 in | Number of Grooves: | 6 |
| Material: | Cast Iron | Belt Section: | C |
| Bore (Min) (in): | 1 in | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 6.25 |
| Face Width (in): | 6.25 | Pulley Construction: | Webbed |
| Bushing Bore Range: | 1.000 - 2.625 | Keyway Size: | .500 |
| UPC: | 662289143023 | Weight: | 35.60 LB |
| Packaged Length: | 9.00 Inches | Packaged Width: | 9.10 Inches |
| Packaged Height: | 6.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
