- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5TB50

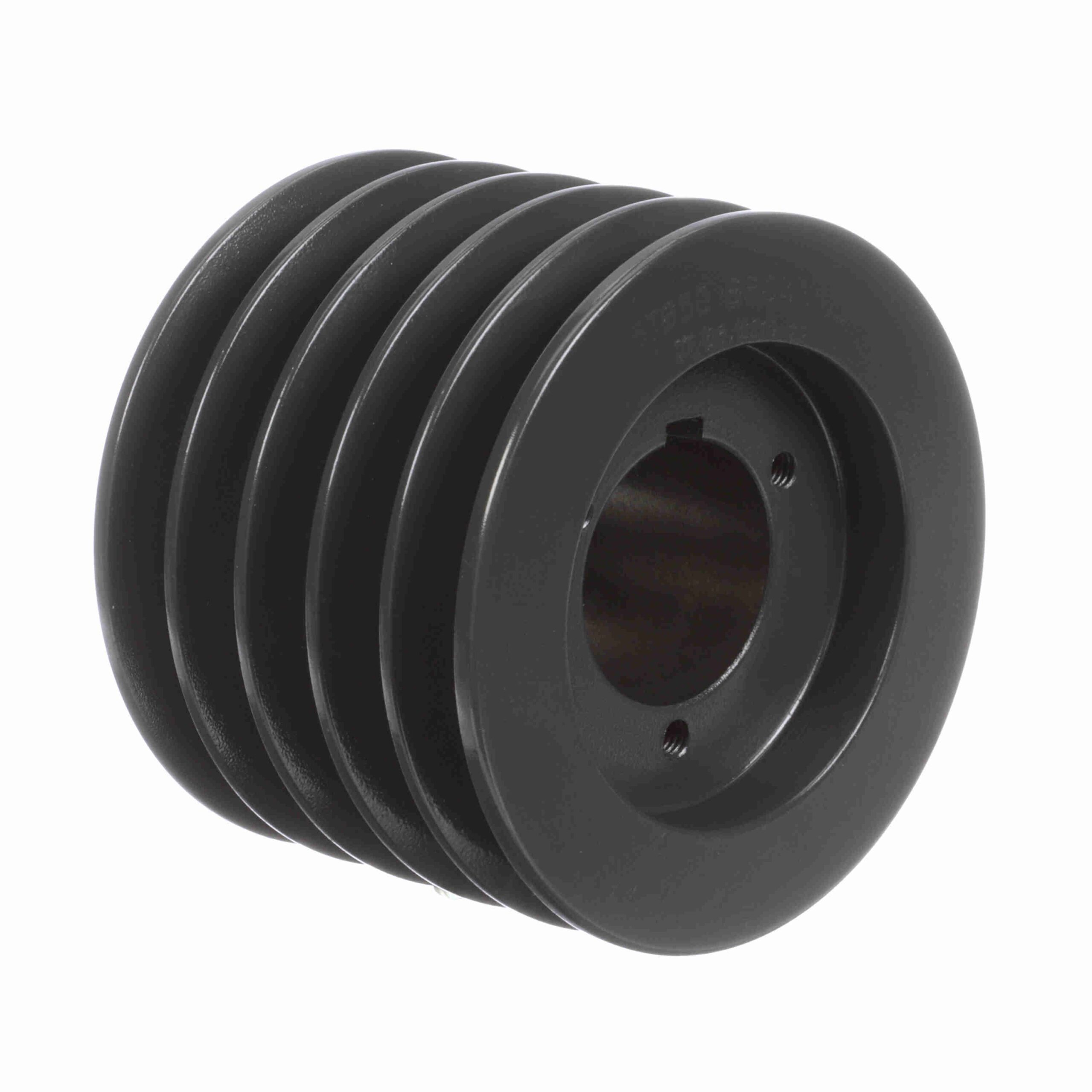

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5TB50
Out of stock
| Pulley Material: | Cast Iron | Model Name: | 5TB-M_Sheave_Master |
|---|---|---|---|
| Outside Diameter (in): | 5.35 in | Overall Length (in): | 4.203125 in |
| Number of Grooves: | 5 | Bushing Used: | P2 |
| Material: | Cast Iron | Pitch Diameter (B): | 5.3 |
| Pitch Diameter (A): | 4.8 | Datum Diameter (A): | 4.6 |
| Datum Diameter (B): | 5 | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Belt Section: | A, B |
| Bore Type: | Split Taper Bushed | Number of Hubs: | 1 |
| Keyway Size: | 0.375 | Pulley Construction: | Web |
| Overall Width (in): | 4.21 | Bushing Bore Range: | .750 - 1.750 |
| Face Width (in): | 4 | UPC: | 662289261406 |
| Weight: | 12.21 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.70 Inches | Packaged Height: | 5.30 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
