- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4TB44

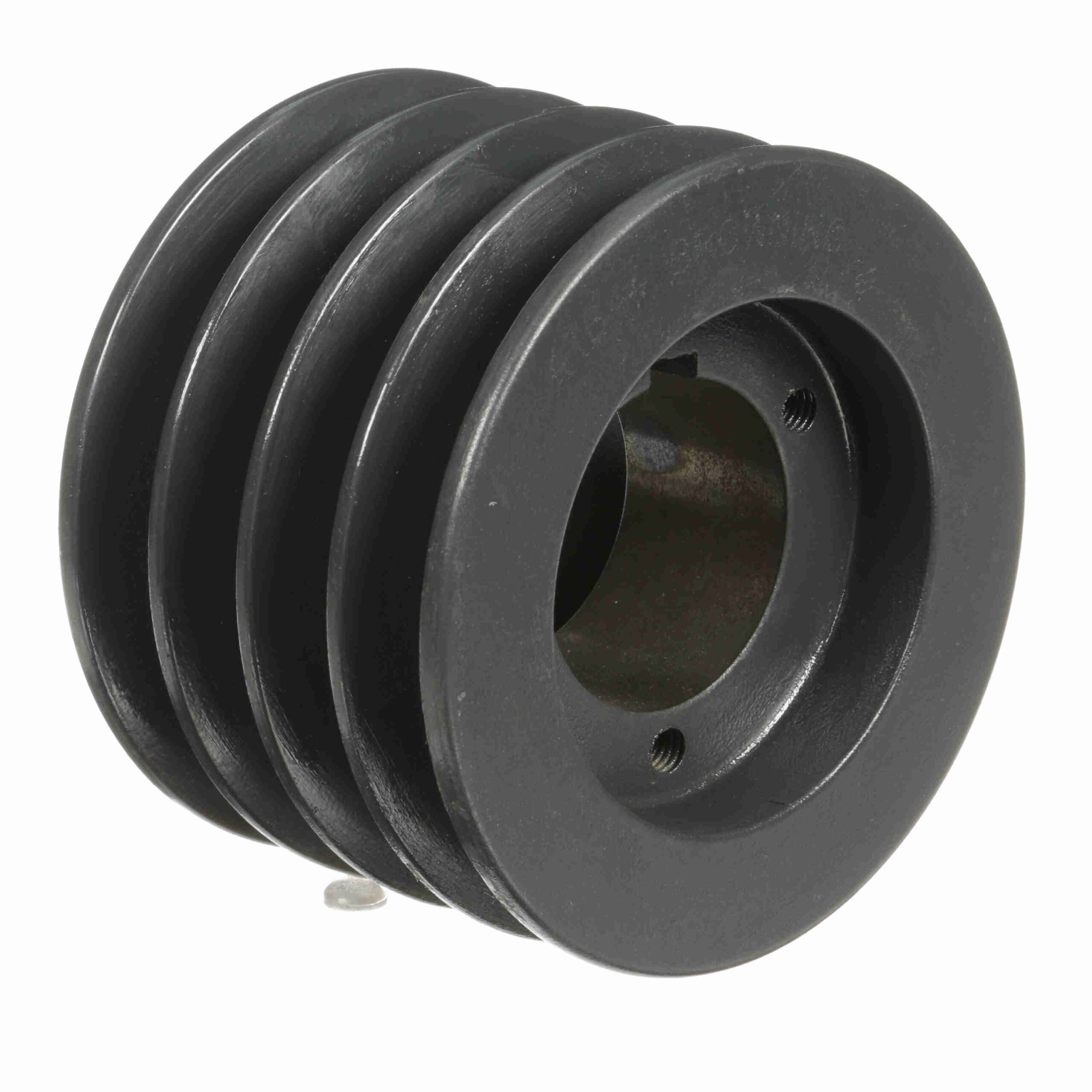

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4TB44
$230.53
Out of stock
Out of stock
| Outside Diameter (in): | 4.75 in | Pulley Material: | Cast Iron |
|---|---|---|---|
| Overall Length (in): | 3.453125 in | Bushing Used: | P1 |
| Material: | Cast Iron | Datum Diameter (B): | 4.4 |
| Model Name: | 4TB-M_Sheave_Master | Datum Diameter (A): | 4 |
| Pitch Diameter (B): | 4.7 | Pitch Diameter (A): | 4.2 |
| Number of Grooves: | 4 | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.5 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 3.5 |
| Pulley Construction: | Webbed | Bushing Bore Range: | 0.500 - 1.750 |
| Face Width (in): | 3.25 | Keyway Size: | .375 |
| UPC: | 662289201297 | Weight: | 6.80 LB |
| Packaged Length: | 5.40 Inches | Packaged Width: | 5.40 Inches |
| Packaged Height: | 3.20 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
