- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6B200E

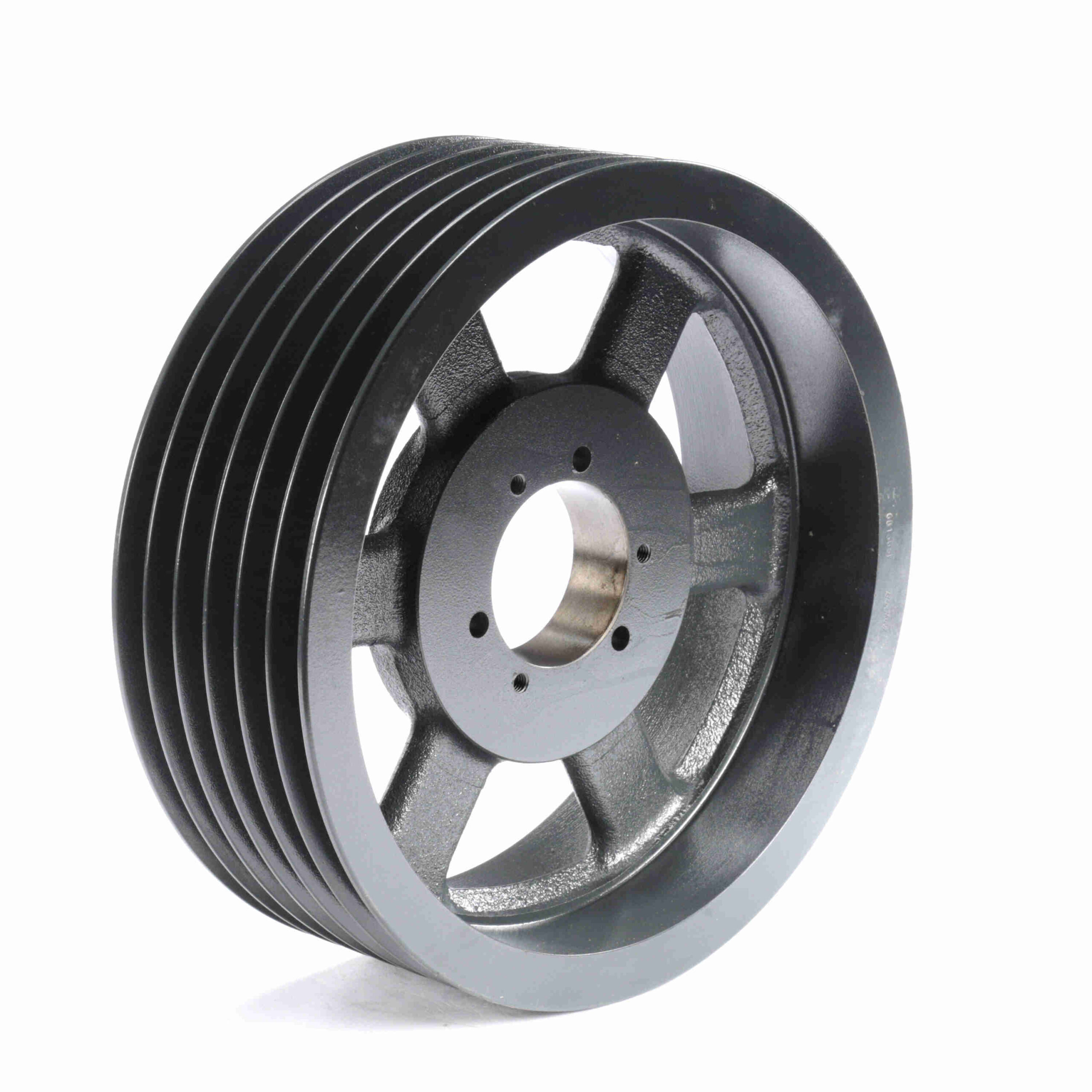

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6B200E
Out of stock
| Datum Diameter (A): | 19.6 | Model Name: | 6AB_LG_Sheavemaster |
|---|---|---|---|
| Bushing Used: | E | Material: | Cast Iron |
| Pitch Diameter (A): | 19.8 | Number of Grooves: | 6 |
| Pulley Material: | Cast Iron | Datum Diameter (B): | 20 |
| Pitch Diameter (B): | 20.3 | Outside Diameter (in): | 20.35 in |
| Belt Section: | A, B | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.875 in | Bore Type: | QD Bushed |
| Bushing Bore Range: | 0.875 - 3.500 | UPC: | 662289377695 |
| Weight: | 74.00 LB | Packaged Length: | 20.35 Inches |
| Packaged Width: | 20.35 Inches | Packaged Height: | 4.75 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
