- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
5B5V70

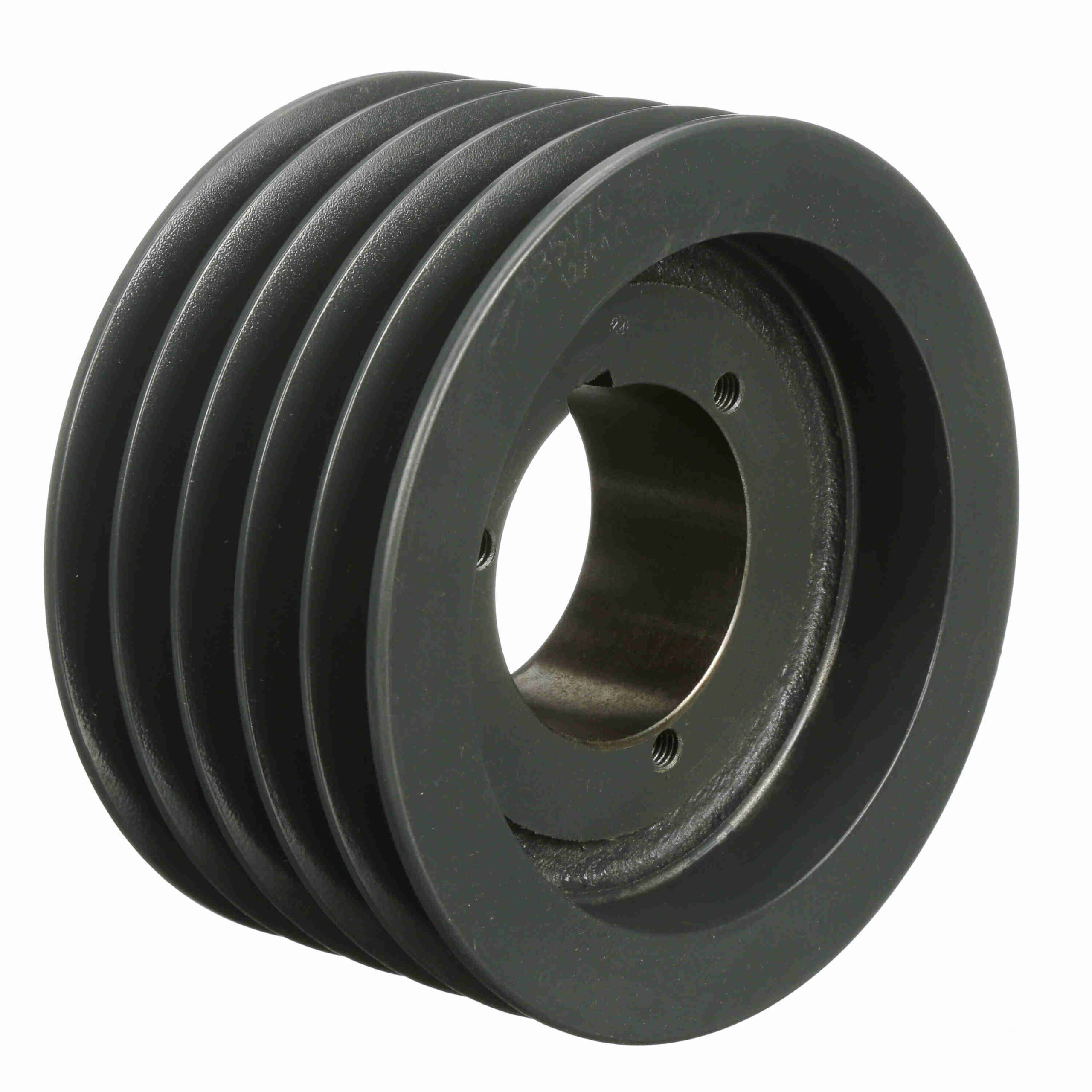

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5B5V70
$425.36
Out of stock
Out of stock
| Outside Diameter (in): | 7.28 in | Number of Grooves: | 5 |
|---|---|---|---|
| Datum Diameter (A): | 6.6 | Material: | Cast Iron |
| Datum Diameter (B): | 7 | Pulley Material: | Cast Iron |
| Overall Length (in): | 3.890625 in | Bushing Used: | Q1 |
| Model Name: | 5B5V-SheaveMaster | Pitch Diameter (5V): | 7.1 |
| Pitch Diameter (B): | 7.3 | Pitch Diameter (A): | 6.8 |
| Belt Section: | A, B, 5V | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Bore Type: | Split Taper Bushed |
| Keyway Size: | .500 | Pulley Construction: | Webbed |
| Overall Width (in): | 4.25 | Face Width (in): | 3.875 |
| Bushing Bore Range: | 2.6875 - 2.6875 | UPC: | 662460344515 |
| Weight: | 18.58 LB | Packaged Length: | 9.10 Inches |
| Packaged Width: | 9.00 Inches | Packaged Height: | 4.30 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
