- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2P3V45

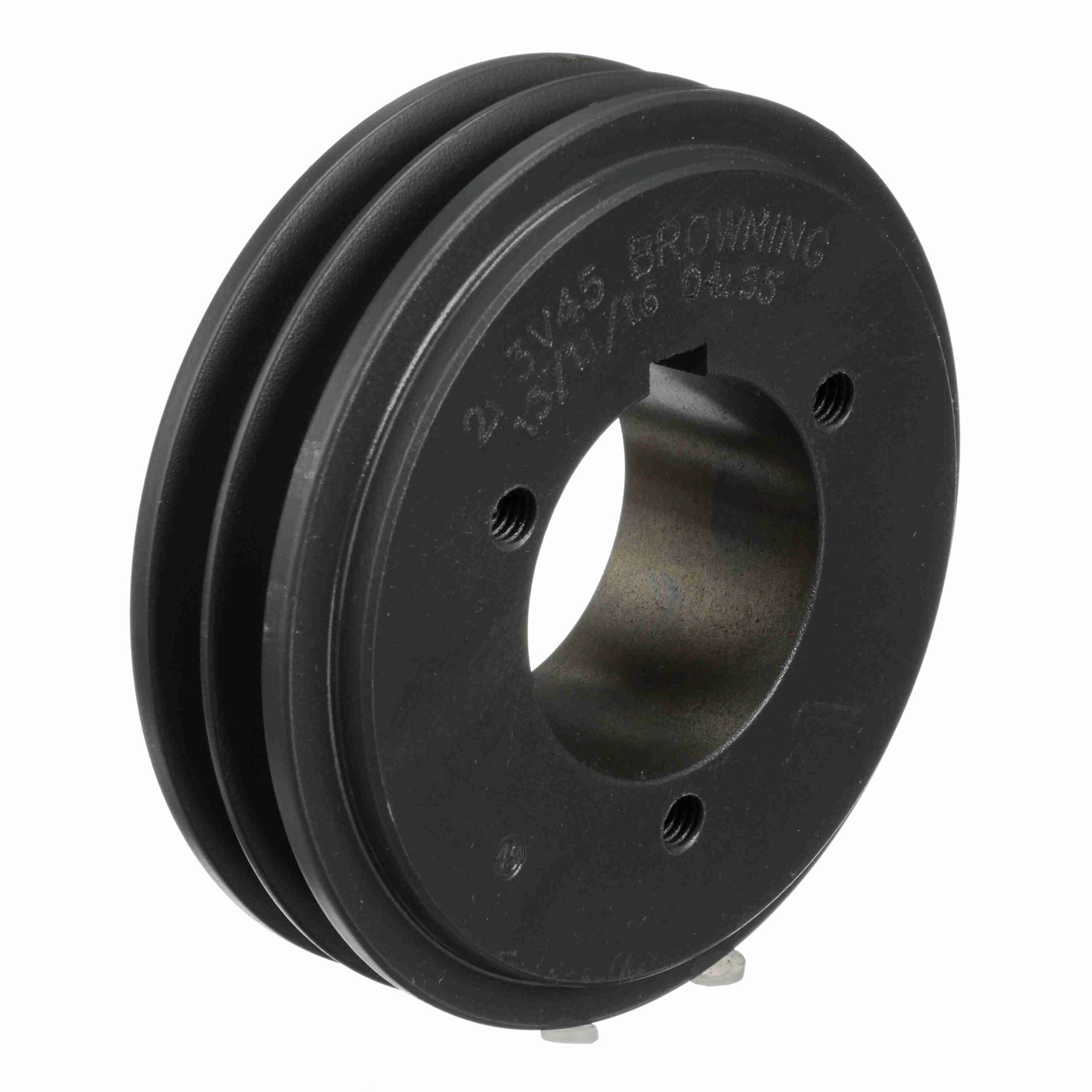

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2P3V45
$167.79
Out of stock
Out of stock
| Bushing Used: | P1 | Pitch Diameter (3V): | 4.45 |
|---|---|---|---|
| Material: | Cast Iron | Pulley Material: | Cast Iron |
| Overall Length (in): | 2.140625 in | Number of Grooves: | 2 |
| Outside Diameter (in): | 4.5 in | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.5 in | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Face Width (in): | 1.0938 |
| Overall Width (in): | 2.1875 | Keyway Size: | .375 |
| Bushing Bore Range: | 0.500 - 1.750 | Pulley Construction: | Plain |
| UPC: | 662289119455 | Weight: | 3.67 LB |
| Packaged Length: | 4.70 Inches | Packaged Width: | 4.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
