- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60HC 10FT

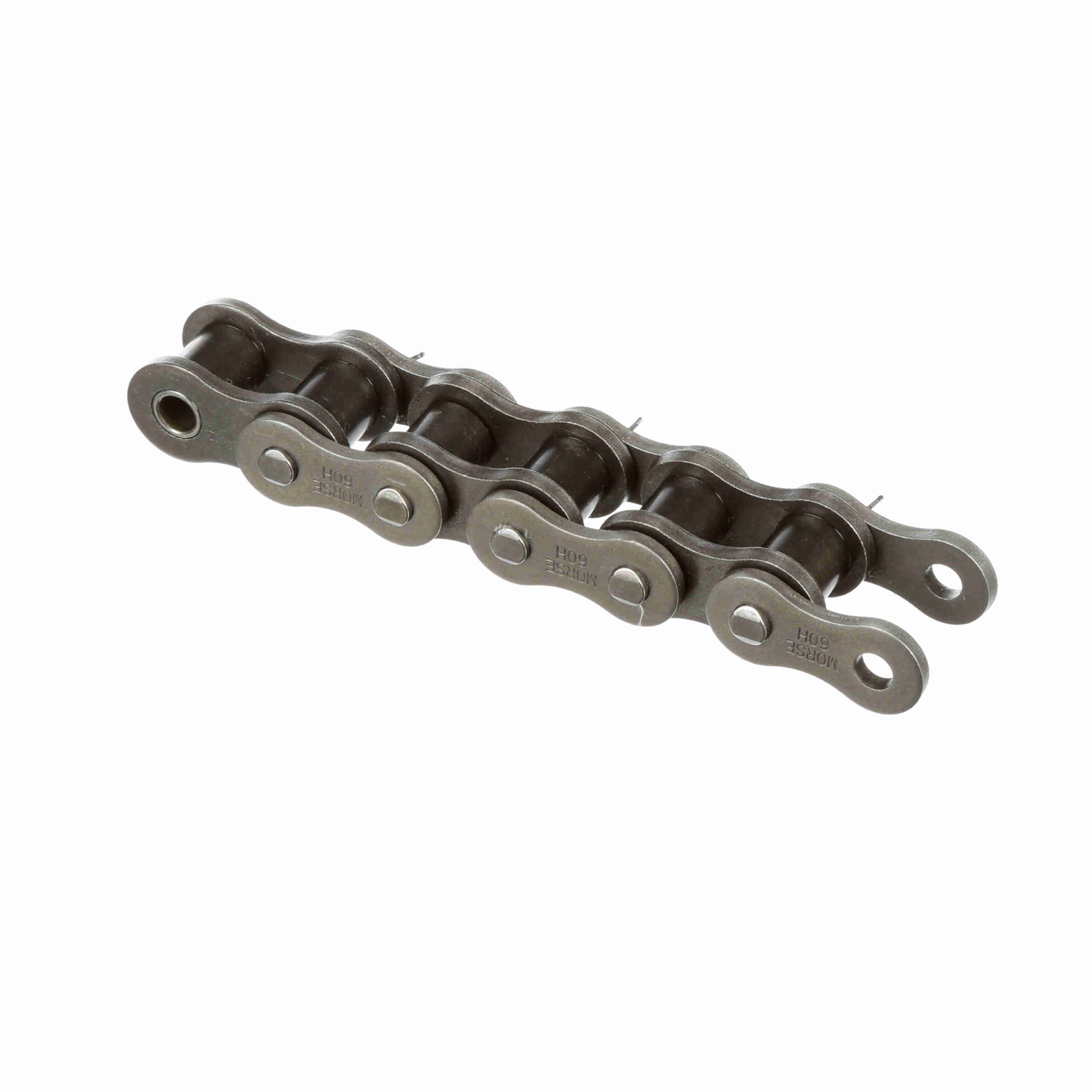

Morse Heavy Cottered Roller Chain – 60HC 10FT
$40.65
Out of stock
Out of stock
| Number of Connecting Links Included: | 1 | Chain Construction: | Cottered |
|---|---|---|---|
| Pin Diameter (in): | 0.234 in | Chain Size: | 60 |
| Roller Width (in): | 0.5 in | Centerline to Outside of cotter Pin: | 0.627 |
| Material: | Steel | Centerline to Opposite cotter Pin Side: | 0.558 |
| Side Plate Cfg.: | Hourglass | Roller Diameter (in): | 0.468 in |
| Width Over Pins/Total Width: | 1.115 | Number of Strands/Width: | 1 |
| Plate Thickness: | 0.125 | Inside Plate Height: | 0.7 |
| Average Ultimate Tensile Strength (psi): | 8, 500 | Chain Pitch (in): | 0.75 in |
| Product Type: | Roller Chain | Chain Type: | Heavy |
| Total Length: | 10 FT ft | Coating: | Uncoated |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 1.115 | UPC: | 662288455738 |
| Weight: | 1.22 LB | Packaged Length: | 10.20 Inches |
| Packaged Width: | 10.10 Inches | Packaged Height: | 1.70 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
