- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
80-2R 10FT

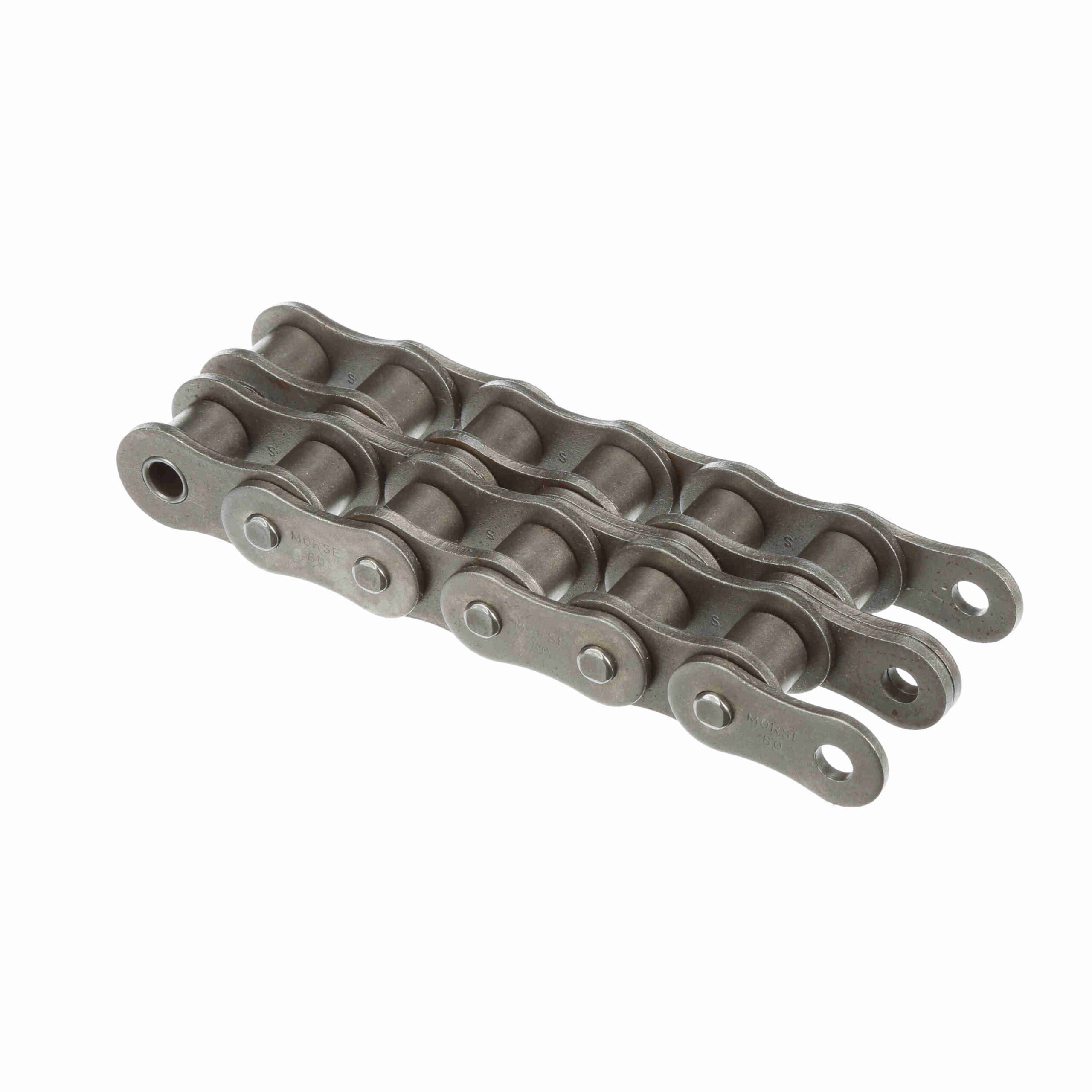

Morse Standard Riveted Roller Chain – 80-2R 10FT
$69.17
Out of stock
Out of stock
| Center Plates: | Loose Fit, Press Fit Optional | Centerline to Outside of cotter Pin: | 1.32 |
|---|---|---|---|
| Plate Thickness: | 0.125 | Material: | Steel |
| Width Over Pins/Total Width: | 2.432 | Roller Width (in): | 0.625 in |
| Pin Diameter (in): | 0.312 in | Centerline to Opposite cotter Pin Side: | 1.216 |
| Chain Size: | 80 | Side Plate Cfg.: | Hourglass |
| Number of Strands/Width: | 2 | Roller Diameter (in): | 0.625 in |
| Inside Plate Height: | 0.934 | Average Ultimate Tensile Strength (psi): | 29, 000 |
| Number of Connecting Links Included: | 1 | Chain Construction: | Riveted |
| Product Type: | Roller Chain | Chain Pitch (in): | 1 in |
| Chain Type: | Standard | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Transverse Pitch: | 1.153 | Measurement System: | Imperial |
| Pin Length - Riveted: | 2.432 | UPC: | 662288395263 |
| Weight: | 3.60 LB | Packaged Length: | 12.1 Inches |
| Packaged Width: | 11.8 Inches | Packaged Height: | 2.6 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
