- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
60-2C 10FT

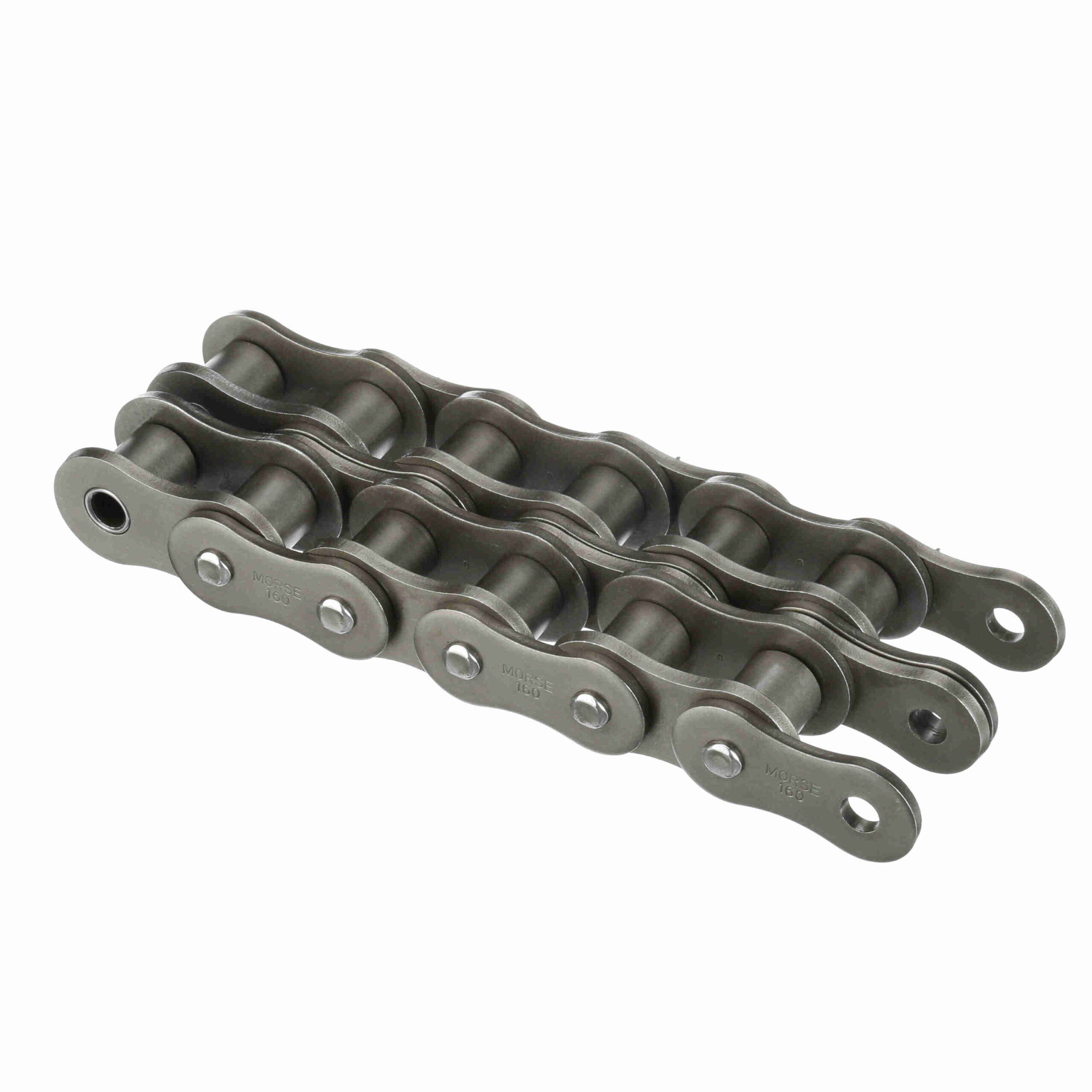

Morse Standard Cottered Roller Chain – 60-2C 10FT
$65.56
Out of stock
Out of stock
| Number of Connecting Links Included: | 1 | Chain Construction: | Cottered |
|---|---|---|---|
| Roller Width (in): | 0.5 in | Material: | Steel |
| Pin Diameter (in): | 0.234 in | Centerline to Opposite cotter Pin Side: | 0.947 |
| Center Plates: | Loose Fit, Press Fit Optional | Chain Size: | 60 |
| Side Plate Cfg.: | Hourglass | Centerline to Outside of cotter Pin: | 1.038 |
| Plate Thickness: | 0.094 | Average Ultimate Tensile Strength (psi): | 17, 000 |
| Width Over Pins/Total Width: | 1.893 | Number of Strands/Width: | 2 |
| Roller Diameter (in): | 0.468 in | Inside Plate Height: | 0.7 |
| Product Type: | Roller Chain | Chain Pitch (in): | 0.75 in |
| Chain Type: | Standard | Total Length: | 10 FT ft |
| Coating: | Uncoated | Transverse Pitch: | 0.897 |
| Standard Met: | ANSI B29.1 | Measurement System: | Imperial |
| Pin Length - Riveted: | 1.893 | UPC: | 662288395195 |
| Weight: | 2.03 LB | Packaged Length: | 10.8 Inches |
| Packaged Width: | 10.7 Inches | Packaged Height: | 2.5 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
