- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
40-3R 10FT

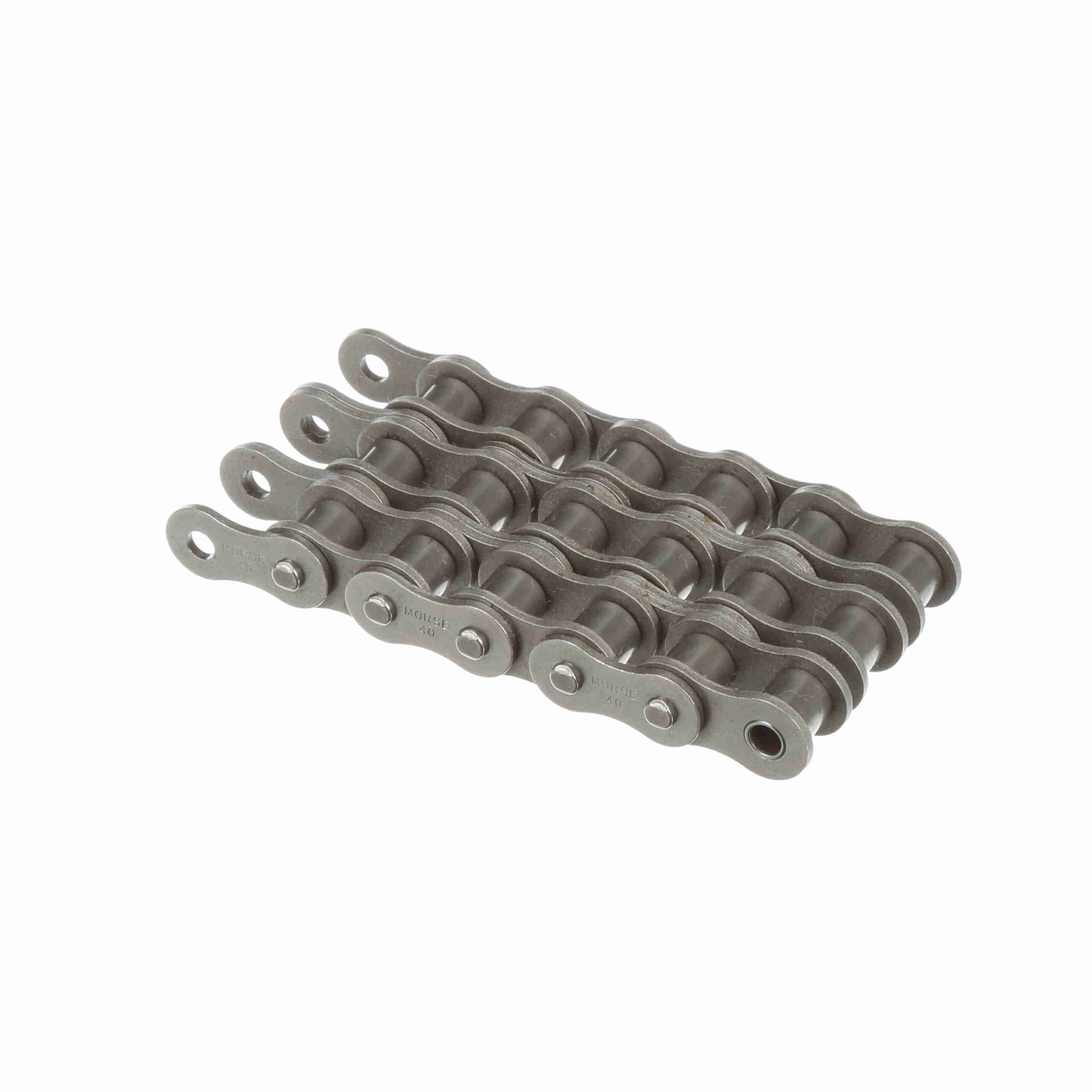

Morse Standard Riveted Roller Chain – 40-3R 10FT
$56.97
Out of stock
Out of stock
| Number of Connecting Links Included: | 1 | Number of Strands/Width: | 3 |
|---|---|---|---|
| Chain Construction: | Riveted | Chain Size: | 40 |
| Centerline to Opposite cotter Pin Side: | 0.88 | Material: | Steel |
| Center Plates: | Loose Fit, Press Fit Optional | Roller Diameter (in): | 0.312 in |
| Pin Diameter (in): | 0.156 in | Centerline to Outside of cotter Pin: | 0.968 |
| Width Over Pins/Total Width: | 1.78 | Inside Plate Height: | 0.466 |
| Side Plate Cfg.: | Hourglass | Plate Thickness: | 0.06 |
| Roller Width (in): | 0.3125 in | Average Ultimate Tensile Strength (psi): | 11, 100 |
| Product Type: | Roller Chain | Chain Type: | Standard |
| Chain Pitch (in): | 0.5 in | Total Length: | 10 FT ft |
| Coating: | Uncoated | Measurement System: | Imperial |
| Standard Met: | ANSI B29.1 | Transverse Pitch: | 0.566 |
| Pin Length - Riveted: | 1.78 | UPC: | 662288455295 |
| Weight: | 1.27 LB | Packaged Length: | 10.80 Inches |
| Packaged Width: | 10.80 Inches | Packaged Height: | 2.40 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
