- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5Q5V71

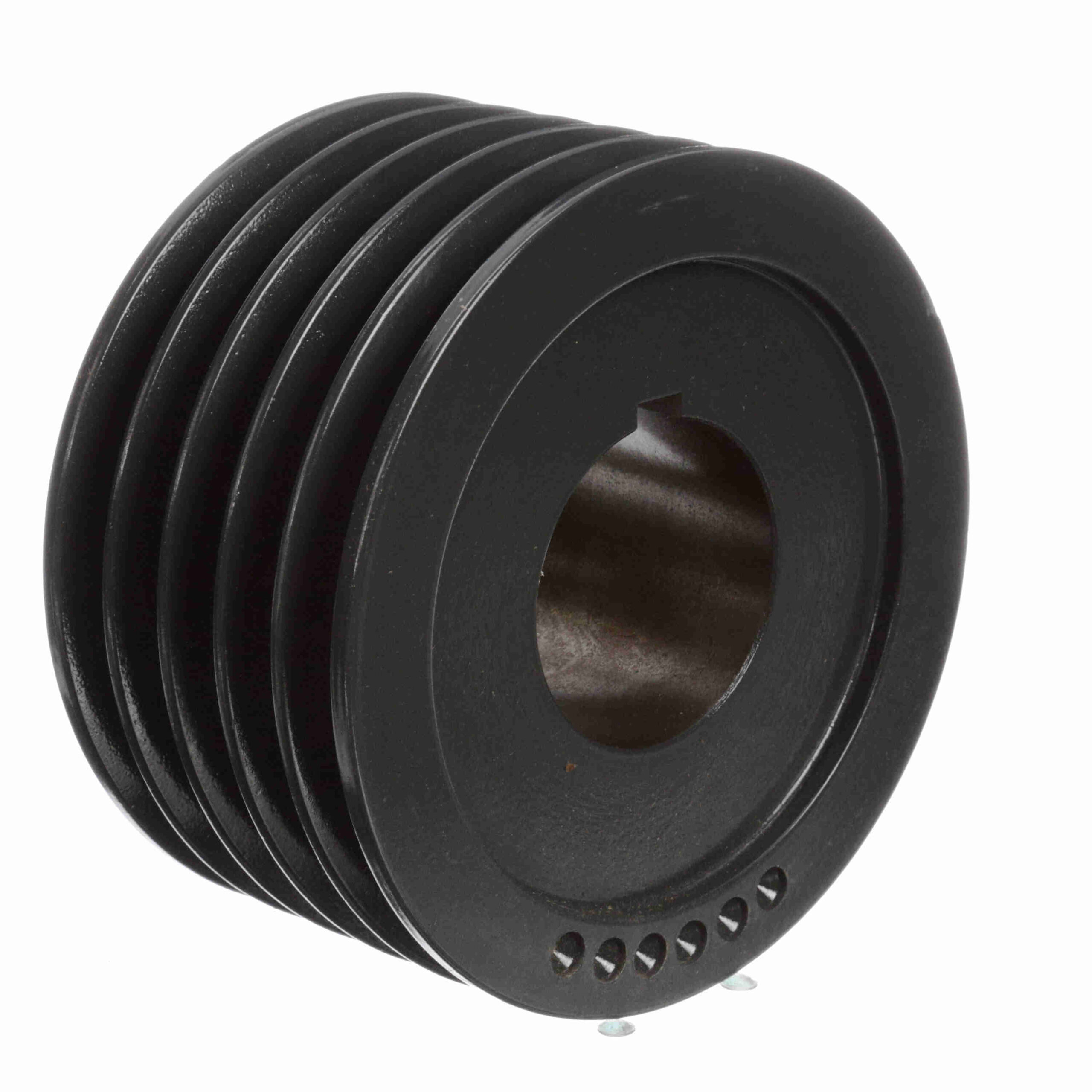

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5Q5V71
$451.39
Out of stock
Out of stock
| Bushing Used: | Q2 | Outside Diameter (in): | 7.1 in |
|---|---|---|---|
| Pitch Diameter (5V): | 7 | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Number of Grooves: | 5 |
| Overall Length (in): | 4.078125 in | Belt Section: | 5V |
| Bore (Min) (in): | 1 in | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 4.03125 |
| Bushing Bore Range: | 1.000 - 2.625 | Keyway Size: | .500 |
| Face Width (in): | 3.75 | Pulley Construction: | Webbed |
| UPC: | 662289150403 | Weight: | 22.00 LB |
| Packaged Length: | 7.19 Inches | Packaged Width: | 7.19 Inches |
| Packaged Height: | 4.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
