- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
5P3V47

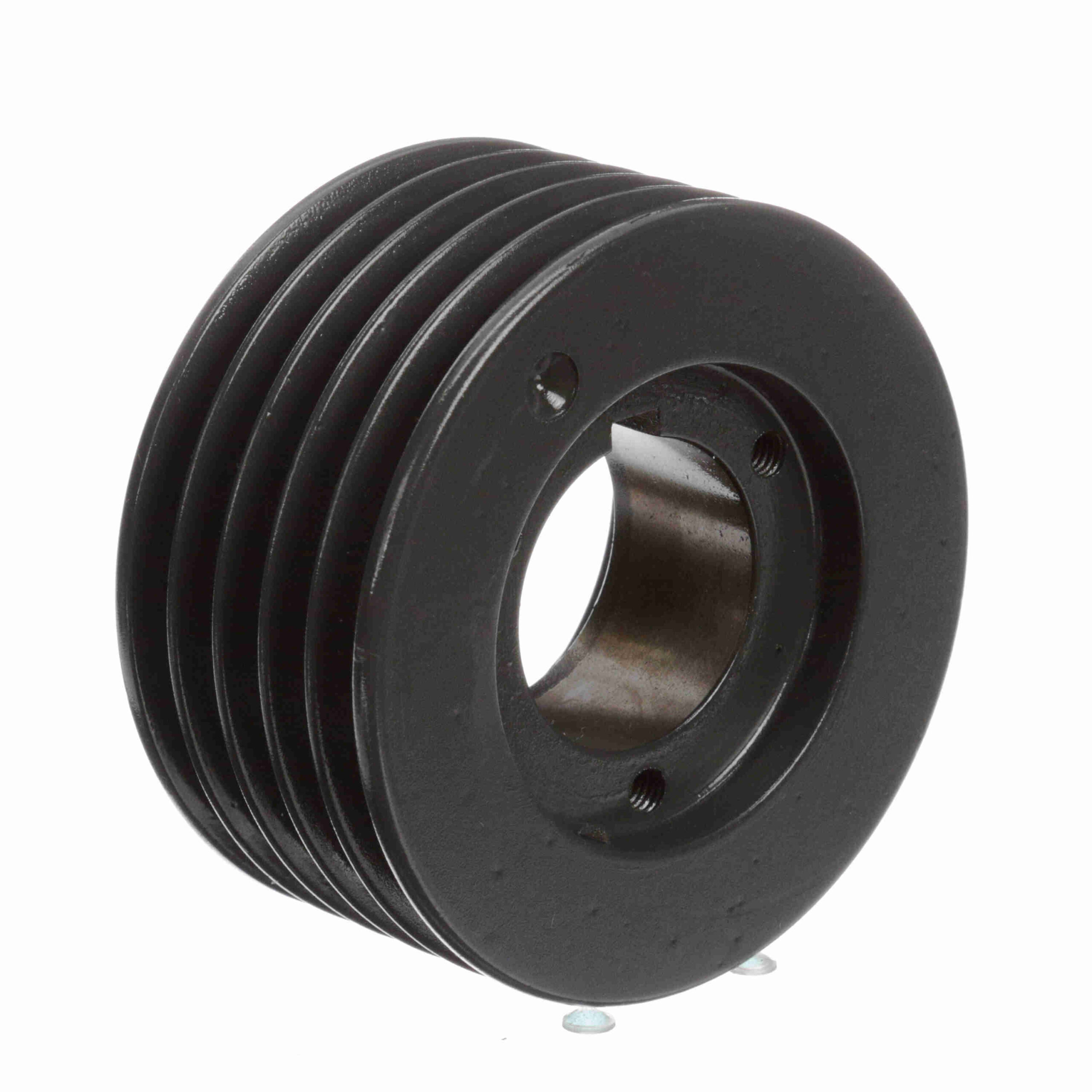

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5P3V47
Out of stock
| Pitch Diameter (3V): | 4.7 | Overall Length (in): | 2.515625 in |
|---|---|---|---|
| Material: | Cast Iron | Pulley Material: | Cast Iron |
| Number of Grooves: | 5 | Bushing Used: | P1 |
| Outside Diameter (in): | 4.75 in | Bore (Min) (in): | 0.5 in |
| Product Type: | Multiple Sheaves | Belt Section: | 3V |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 0.500 - 1.750 |
| Keyway Size: | .375 | Face Width (in): | 2.3125 |
| Overall Width (in): | 2.5625 | Pulley Construction: | Webbed |
| UPC: | 662289169504 | Weight: | 6.42 LB |
| Packaged Length: | 5.06 Inches | Packaged Width: | 5.06 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
