- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TB250

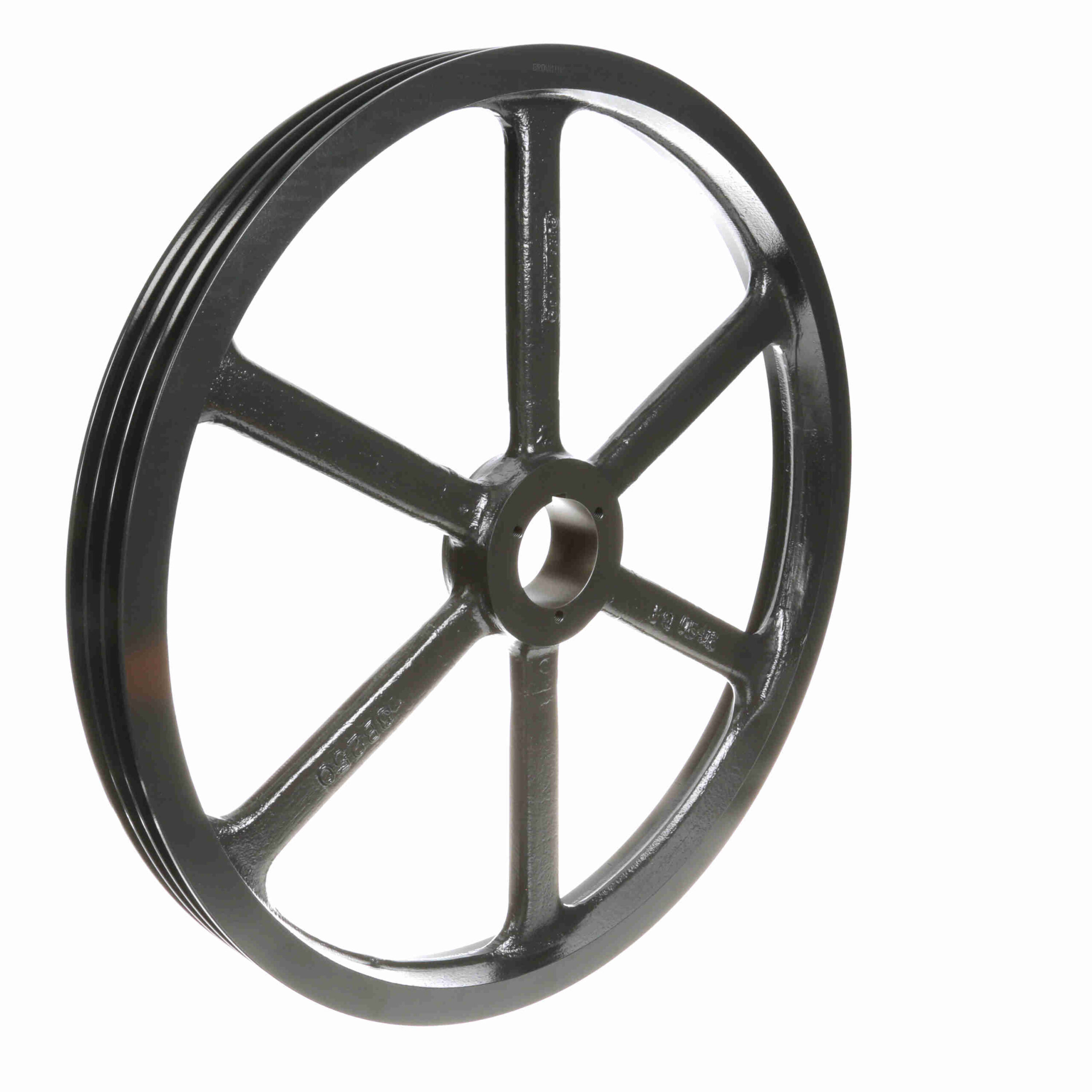

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB250
$1,163.75
Out of stock
Out of stock
| Material: | Cast Iron | Number of Grooves: | 3 |
|---|---|---|---|
| Model Name: | 3TB-L_Sheave_Master | Pitch Diameter (A): | 24.8 |
| Datum Diameter (A): | 24.6 | Outside Diameter (in): | 25.35 in |
| Pitch Diameter (B): | 25.3 | Bushing Used: | Q1 |
| Datum Diameter (B): | 25 | Pulley Material: | Cast Iron |
| Overall Length (in): | 3.203125 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 3.15625 |
| Face Width (in): | 2.5 | Pulley Construction: | Spoked |
| Bushing Bore Range: | 2.6875 - 2.6875 | Keyway Size: | .500 |
| UPC: | 662289310487 | Weight: | 61.00 LB |
| Packaged Length: | 25.35 Inches | Packaged Width: | 25.35 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
