- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1TB136

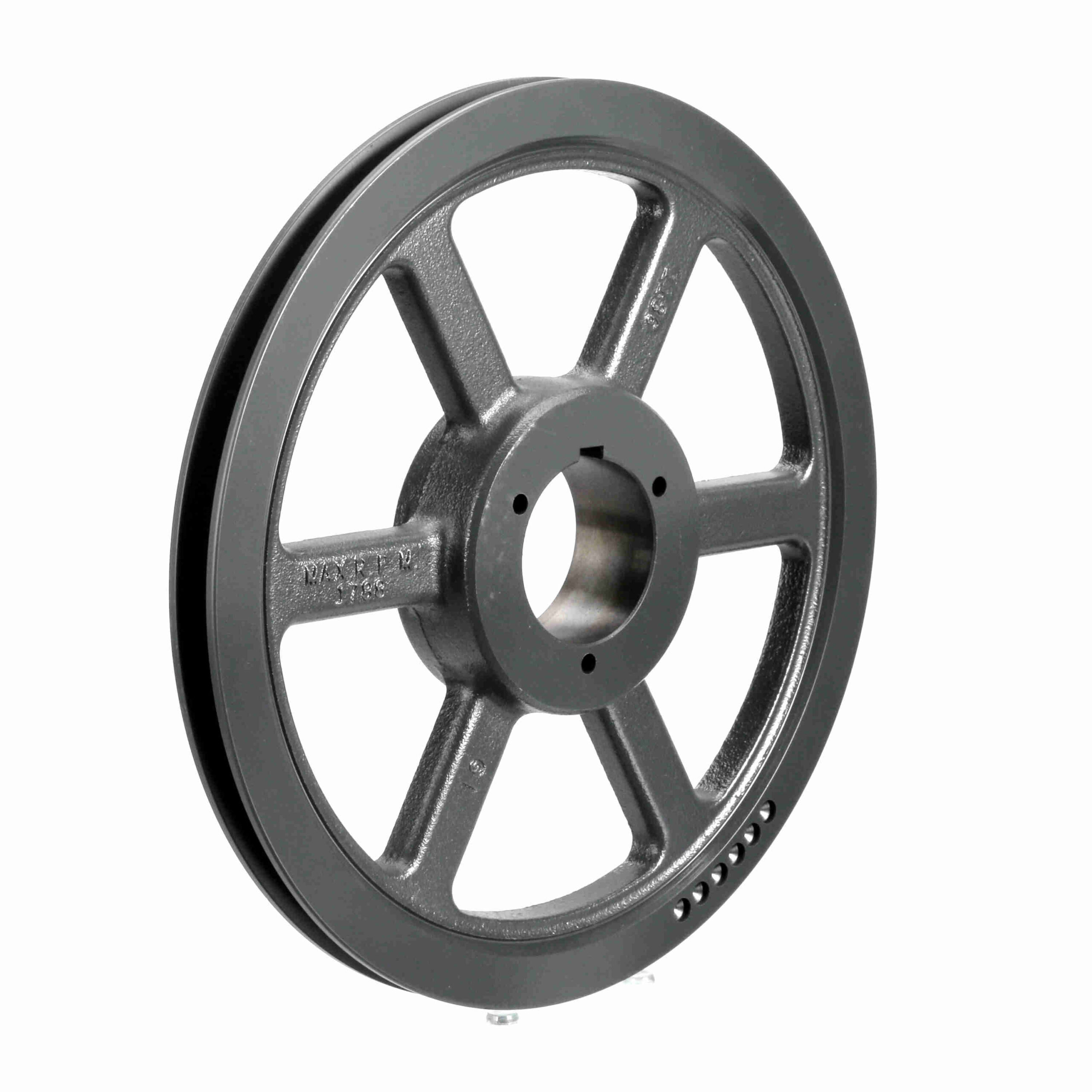

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1TB136
$250.80
Out of stock
Out of stock
| Material: | Cast Iron | Model Name: | 1TB-L_Sheave_Master |
|---|---|---|---|
| Outside Diameter (in): | 13.88 in | Datum Diameter (A): | 13.2 |
| Pitch Diameter (A): | 13.4 | Datum Diameter (B): | 13.6 |
| Overall Length (in): | 2.828125 in | Number of Grooves: | 1 |
| Bushing Used: | Q1 | Pitch Diameter (B): | 13.9 |
| Pulley Material: | Cast Iron | Belt Section: | A, B |
| Bore (Min) (in): | 0.75 in | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Spoked |
| Face Width (in): | 1 | Overall Width (in): | 2.78125 |
| Keyway Size: | .500 | Bushing Bore Range: | 2.6875 - 2.6875 |
| UPC: | 662289242375 | Weight: | 18.77 LB |
| Packaged Length: | 14.60 Inches | Packaged Width: | 14.50 Inches |
| Packaged Height: | 2.20 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
