- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
5B5V50

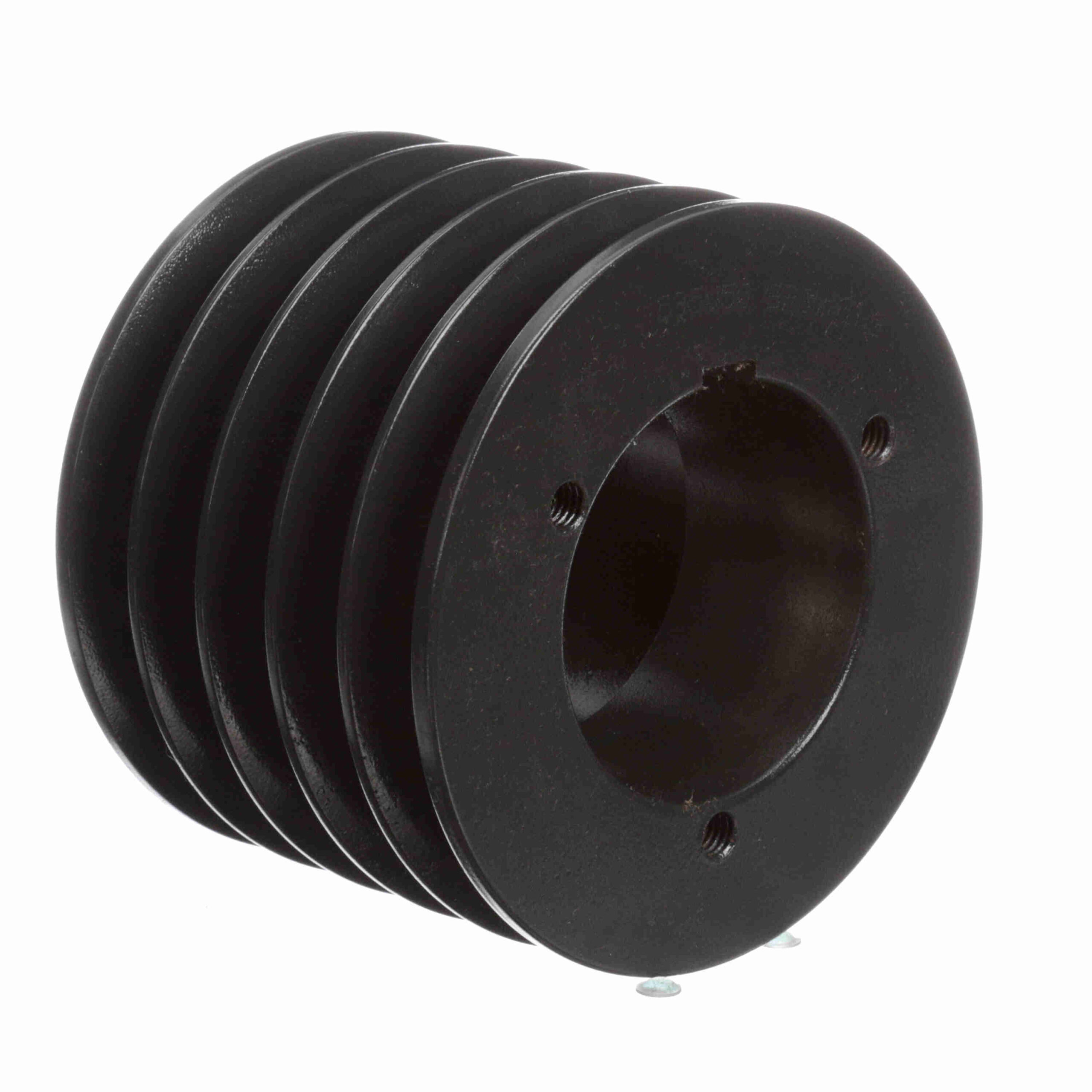

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave – 5B5V50
$432.37
Out of stock
Out of stock
| Pitch Diameter (5V): | 5.1 | Number of Grooves: | 5 |
|---|---|---|---|
| Pulley Material: | Cast Iron | Outside Diameter (in): | 5.28 in |
| Bushing Used: | Q1 | Pitch Diameter (A): | 4.8 |
| Datum Diameter (A): | 4.6 | Pitch Diameter (B): | 5.3 |
| Overall Length (in): | 4.953125 in | Model Name: | 5B5V-SheaveMaster |
| Material: | Cast Iron | Datum Diameter (B): | 5 |
| Product Type: | Multiple Sheaves | Belt Section: | A, B, 5V |
| Bore (Min) (in): | 0.75 in | Bore Type: | Split Taper Bushed |
| Face Width (in): | 3.875 | Bushing Bore Range: | 2.6875 - 2.6875 |
| Overall Width (in): | 4.90625 | Keyway Size: | .500 |
| Pulley Construction: | Plain | UPC: | 662460344416 |
| Weight: | 9.20 LB | Packaged Length: | 5.44 Inches |
| Packaged Width: | 5.44 Inches | Packaged Height: | 4.00 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
