- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4TB74

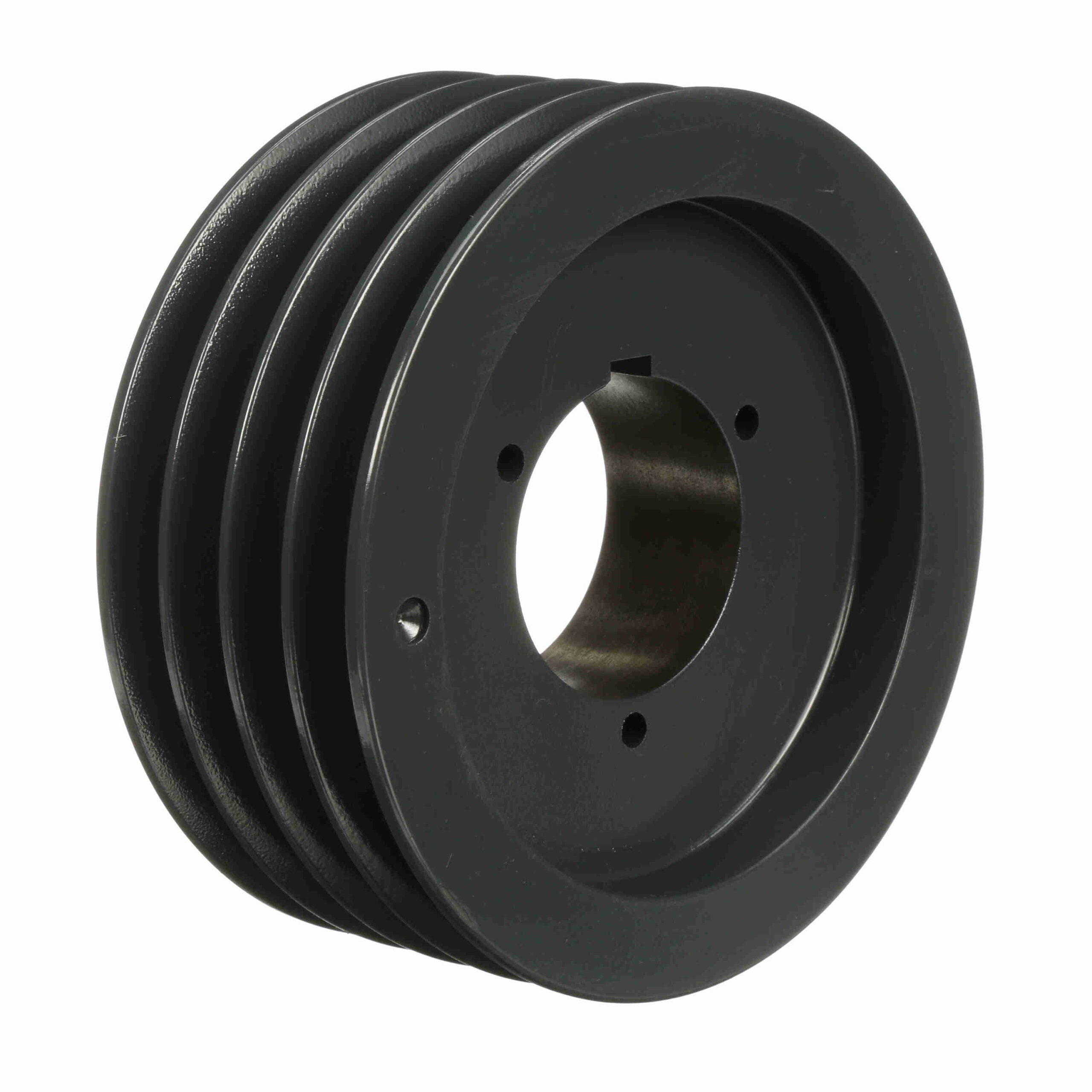

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4TB74
$325.75
Out of stock
Out of stock
| Bushing Used: | Q1 | Pitch Diameter (A): | 7.2 |
|---|---|---|---|
| Datum Diameter (B): | 7.4 | Outside Diameter (in): | 7.75 in |
| Model Name: | 4TB-L_Sheave_Master | Material: | Cast Iron |
| Pitch Diameter (B): | 7.7 | Pulley Material: | Cast Iron |
| Number of Grooves: | 4 | Datum Diameter (A): | 7 |
| Overall Length (in): | 3.578125 in | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 3.53125 |
| Pulley Construction: | Webbed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Keyway Size: | .500 | Face Width (in): | 3.25 |
| UPC: | 662289272013 | Weight: | 19.77 LB |
| Packaged Length: | 8.50 Inches | Packaged Width: | 8.60 Inches |
| Packaged Height: | 3.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
