- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TB34

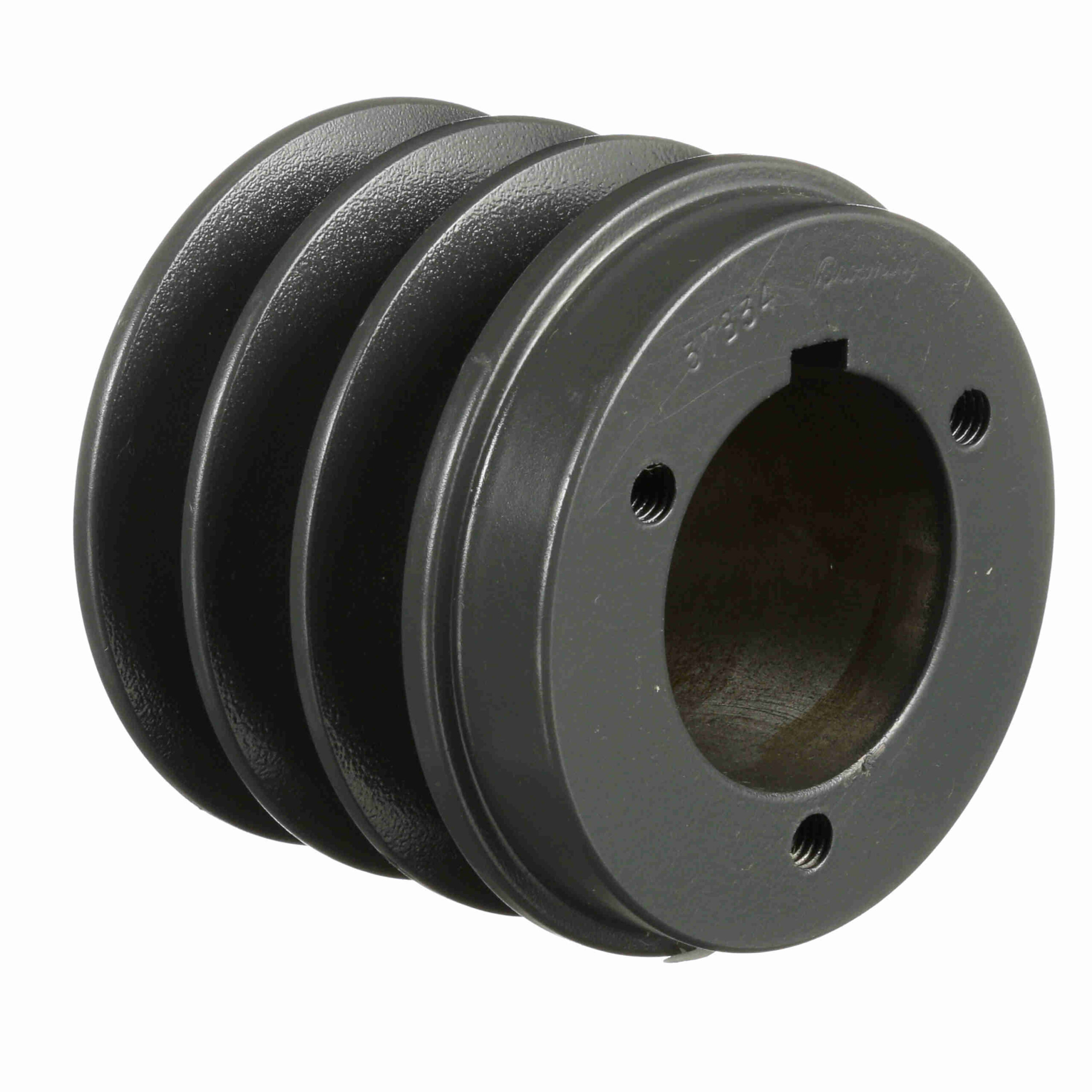

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB34
$130.20
Out of stock
Out of stock
| Material: | Cast Iron | Bushing Used: | P2 |
|---|---|---|---|
| Model Name: | 3TB-L_Sheave_Master | Overall Length (in): | 3.890625 in |
| Number of Grooves: | 3 | Outside Diameter (in): | 3.75 in |
| Pulley Material: | Cast Iron | Pitch Diameter (B): | 3.7 |
| Pitch Diameter (A): | 3.2 | Datum Diameter (B): | 3.4 |
| Datum Diameter (A): | 3 | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Face Width (in): | 2.5 |
| Overall Width (in): | 3.8125 | Keyway Size: | .375 |
| Bushing Bore Range: | 0.750 - 1.750 | Pulley Construction: | Plain |
| UPC: | 662289301003 | Weight: | 3.37 LB |
| Packaged Length: | 4.50 Inches | Packaged Width: | 4.90 Inches |
| Packaged Height: | 3.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
