- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TB38

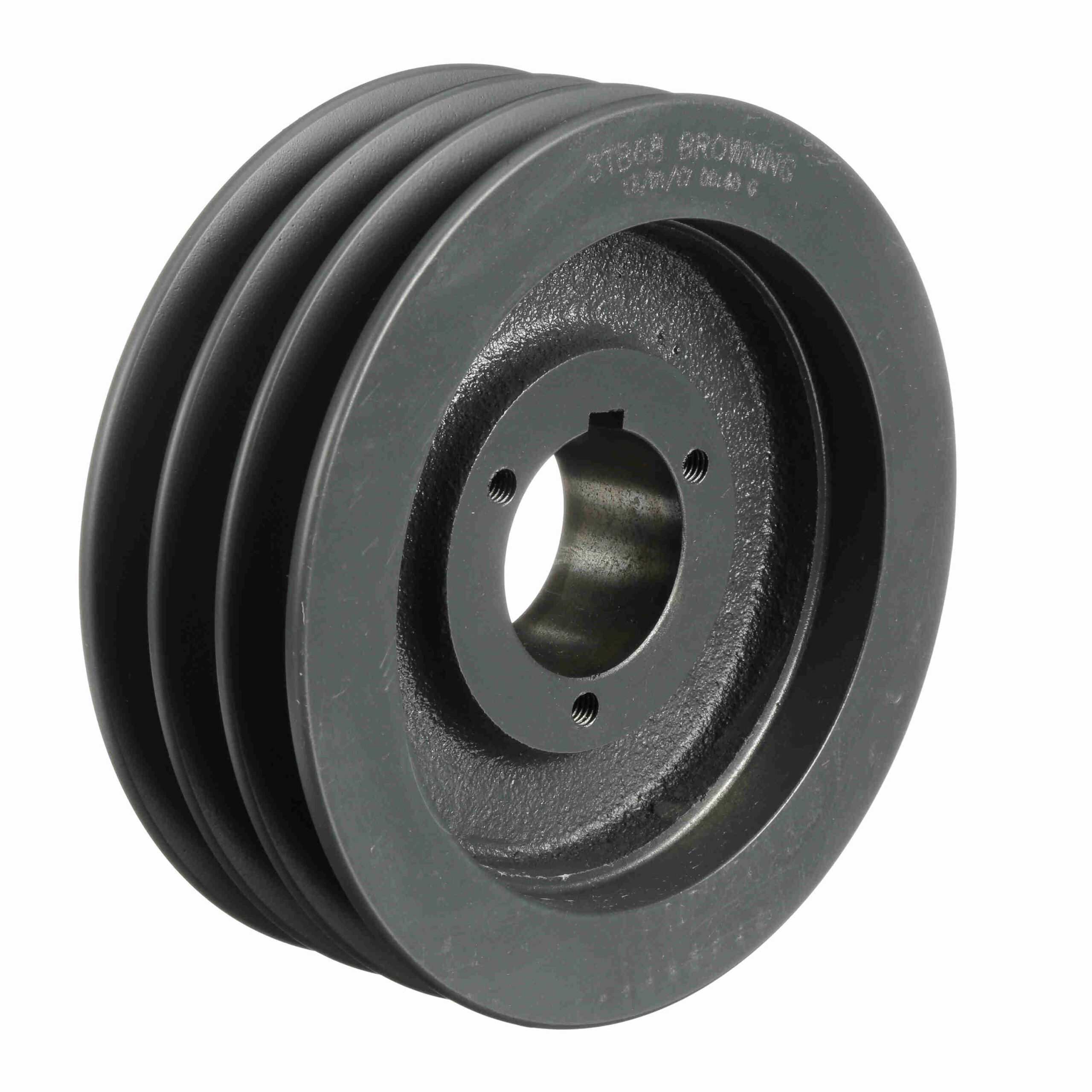

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB38
$144.85
Out of stock
Out of stock
| Datum Diameter (A): | 3.4 | Bushing Used: | P1 |
|---|---|---|---|
| Number of Grooves: | 3 | Pulley Material: | Cast Iron |
| Material: | Cast Iron | Outside Diameter (in): | 4.15 in |
| Datum Diameter (B): | 3.8 | Model Name: | 3TB-S_Sheave_Master |
| Pitch Diameter (A): | 3.6 | Pitch Diameter (B): | 4.1 |
| Overall Length (in): | 3.328125 in | Bore (Min) (in): | 0.5 in |
| Product Type: | Multiple Sheaves | Belt Section: | A, B |
| Bore Type: | Split Taper Bushed | Keyway Size: | .375 |
| Face Width (in): | 2.5 | Pulley Construction: | Plain |
| Overall Width (in): | 3.375 | Bushing Bore Range: | 0.500 - 1.750 |
| UPC: | 662289291120 | Weight: | 4.16 LB |
| Packaged Length: | 5.00 Inches | Packaged Width: | 4.80 Inches |
| Packaged Height: | 3.10 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
