- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4TB40

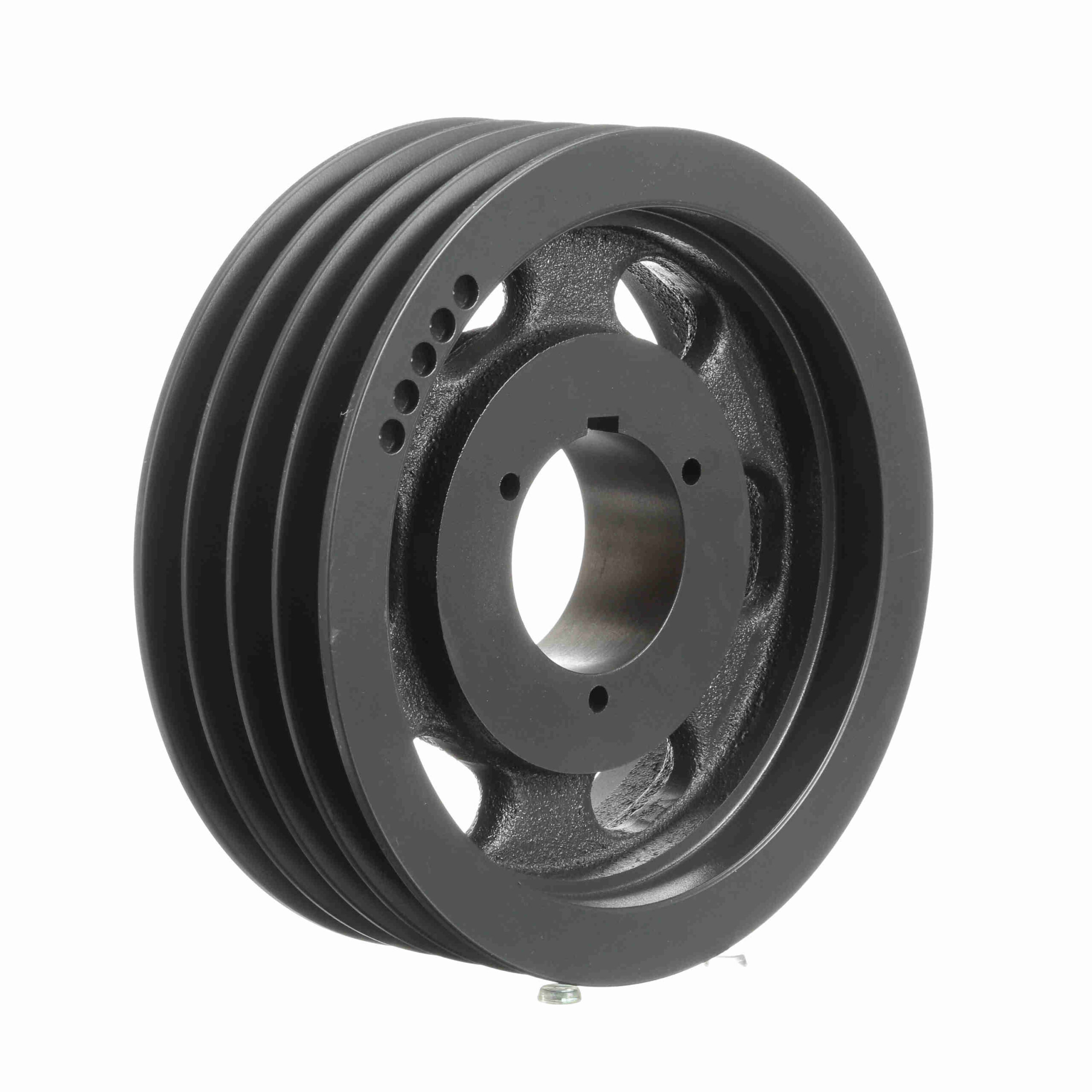

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4TB40
$267.20
Out of stock
Out of stock
| Pitch Diameter (A): | 3.8 | Bushing Used: | P1 |
|---|---|---|---|
| Datum Diameter (B): | 4 | Number of Grooves: | 4 |
| Pitch Diameter (B): | 4.3 | Material: | Cast Iron |
| Pulley Material: | Cast Iron | Overall Length (in): | 4.078125 in |
| Datum Diameter (A): | 3.6 | Model Name: | 4TB-S_Sheave_Master |
| Outside Diameter (in): | 4.35 in | Bore (Min) (in): | 0.5 in |
| Belt Section: | A, B | Product Type: | Multiple Sheaves |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 0.500 - 1.750 |
| Face Width (in): | 3.25 | Keyway Size: | .375 |
| Pulley Construction: | Plain | Overall Width (in): | 4.125 |
| UPC: | 662289151196 | Weight: | 5.70 LB |
| Packaged Length: | 4.88 Inches | Packaged Width: | 4.88 Inches |
| Packaged Height: | 3.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
