- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TB66

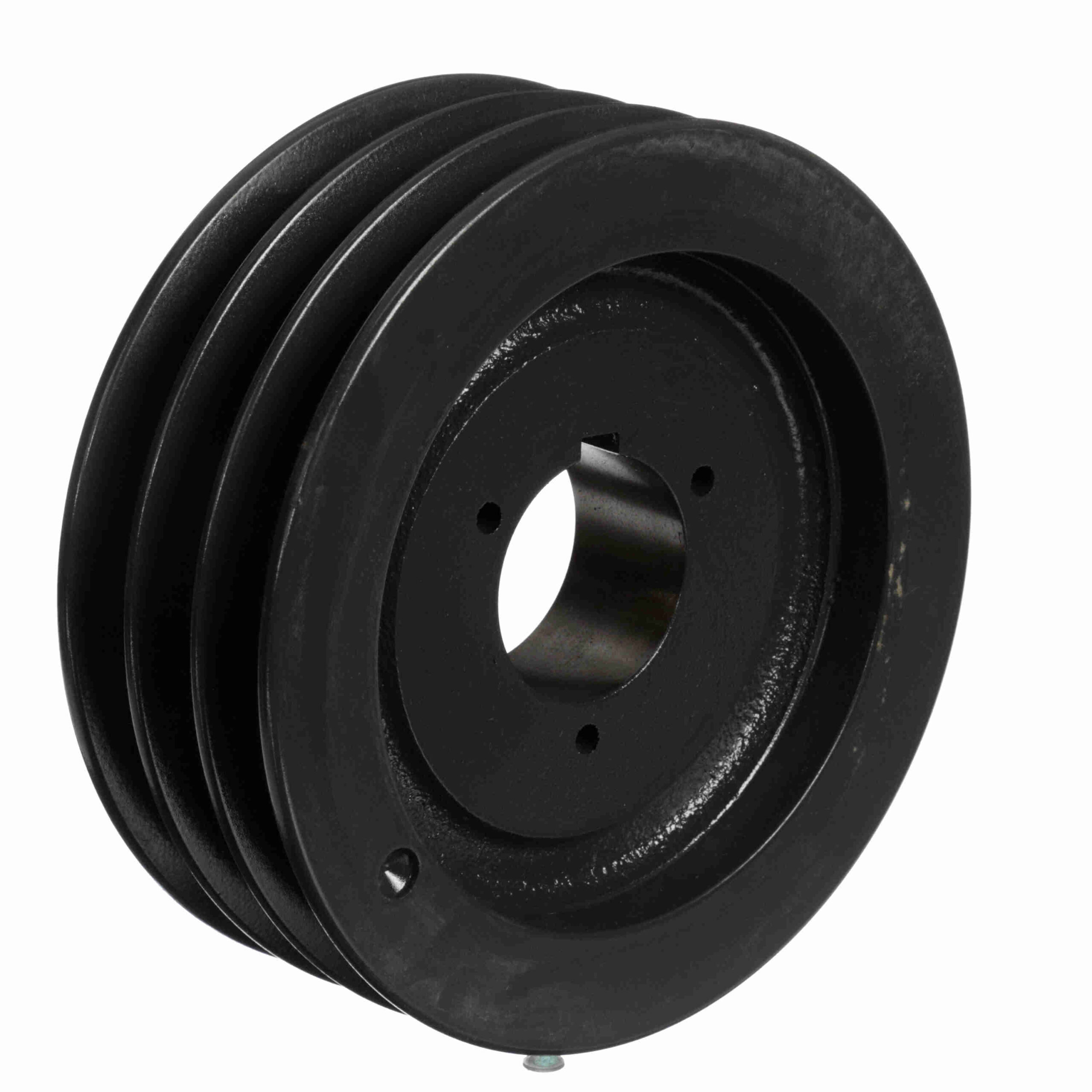

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TB66
$288.25
Out of stock
Out of stock
| Bushing Used: | P1 | Datum Diameter (A): | 6.2 |
|---|---|---|---|
| Number of Grooves: | 3 | Datum Diameter (B): | 6.6 |
| Overall Length (in): | 2.703125 in | Pulley Material: | Cast Iron |
| Pitch Diameter (B): | 6.9 | Outside Diameter (in): | 6.95 in |
| Material: | Cast Iron | Model Name: | 3TB-L_Sheave_Master |
| Pitch Diameter (A): | 6.4 | Belt Section: | A, B |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.5 in |
| Number of Hubs: | 1 | Bore Type: | Split Taper Bushed |
| Bushing Bore Range: | .500 - 1.750 | Overall Width (in): | 2.71 |
| Pulley Construction: | Web | Face Width (in): | 2.5 |
| Keyway Size: | 0.375 | UPC: | 662289281800 |
| Weight: | 12.66 LB | Packaged Length: | 7.70 Inches |
| Packaged Width: | 7.70 Inches | Packaged Height: | 2.70 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
