- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3TC98

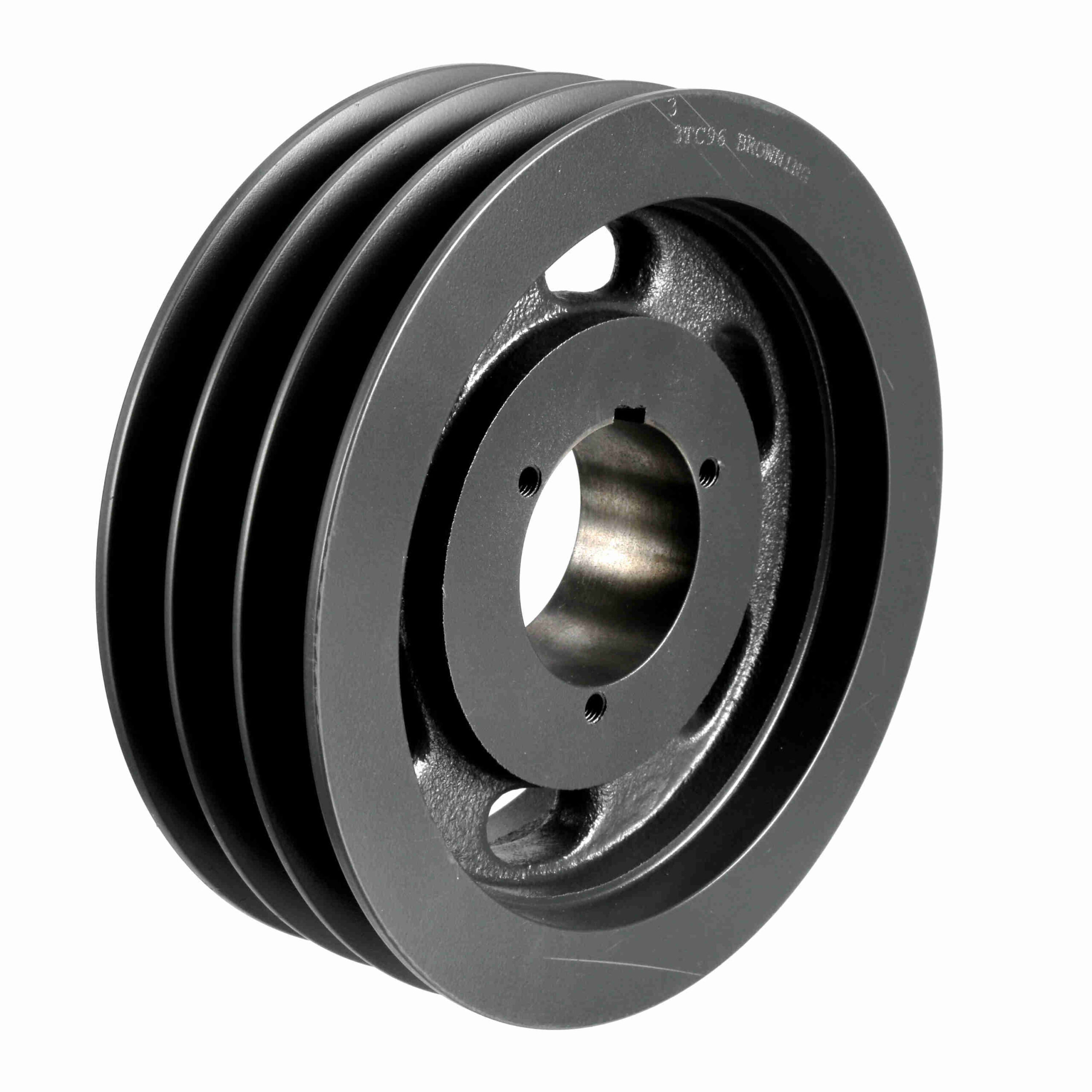

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3TC98
$910.69
Out of stock
Out of stock
| Bushing Used: | Q1 | Pitch Diameter (C): | 10.2 |
|---|---|---|---|
| Outside Diameter (in): | 10.2 in | Material: | Cast Iron |
| Datum Diameter (C): | 9.8 | Number of Grooves: | 3 |
| Overall Length (in): | 3.578125 in | Pulley Material: | Cast Iron |
| Model Name: | 3TC-L_Sheave_Master | Product Type: | Multiple Sheaves |
| Bore (Min) (in): | 0.75 in | Belt Section: | C |
| Bore Type: | Split Taper Bushed | Bushing Bore Range: | 2.6875 - 2.6875 |
| Overall Width (in): | 3.53125 | Pulley Construction: | Spoked |
| Keyway Size: | .500 | Face Width (in): | 3.25 |
| UPC: | 662289310661 | Weight: | 25.60 LB |
| Packaged Length: | 10.50 Inches | Packaged Width: | 3.25 Inches |
| Packaged Height: | 10.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
