- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
40-3 C/L S/C S/F

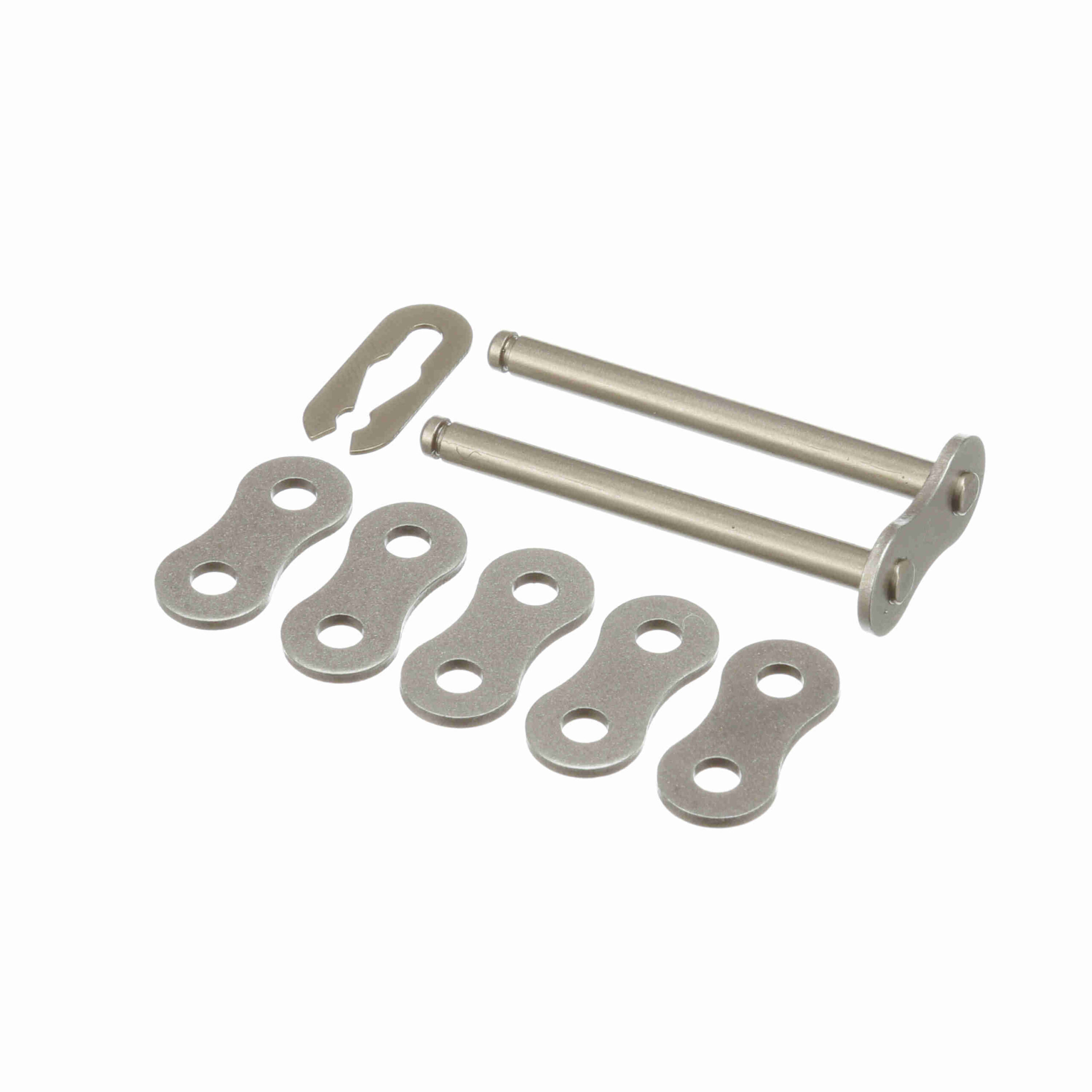

Morse Standard Roller Chain Spring Clip Connecting Link – 40-3 C/L S/C S/F
$6.73
Out of stock
Out of stock
| Side Plate Cfg.: | Hourglass | Centerline to Opposite cotter Pin Side: | 0.88 |
|---|---|---|---|
| Pin Diameter (in): | 0.156 in | Number of Connecting Links Included: | 5 |
| Plate Thickness: | 0.06 | Chain Size: | 40 |
| Inside Plate Height: | 0.466 | Centerline to Outside of cotter Pin: | 0.968 |
| Material: | Steel | Width Over Pins/Total Width: | 1.78 |
| Connecting Link - Slip Fit: | Spring Clip | Roller Diameter (in): | 0.312 in |
| Average Ultimate Tensile Strength (psi): | 11, 100 | Number of Strands/Width: | 3 |
| Roller Width (in): | 0.3125 in | Chain Type: | Standard |
| Chain Pitch (in): | 0.5 in | Product Type: | Roller Chain |
| Chain Construction: | Spring Clip | Link Type: | Connecting Link |
| UPC: | 662288456070 | Weight: | 0.05 LB |
| Packaged Length: | 2.30 Inches | Packaged Width: | 2.90 Inches |
| Packaged Height: | 0.45 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
