- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2C60Q

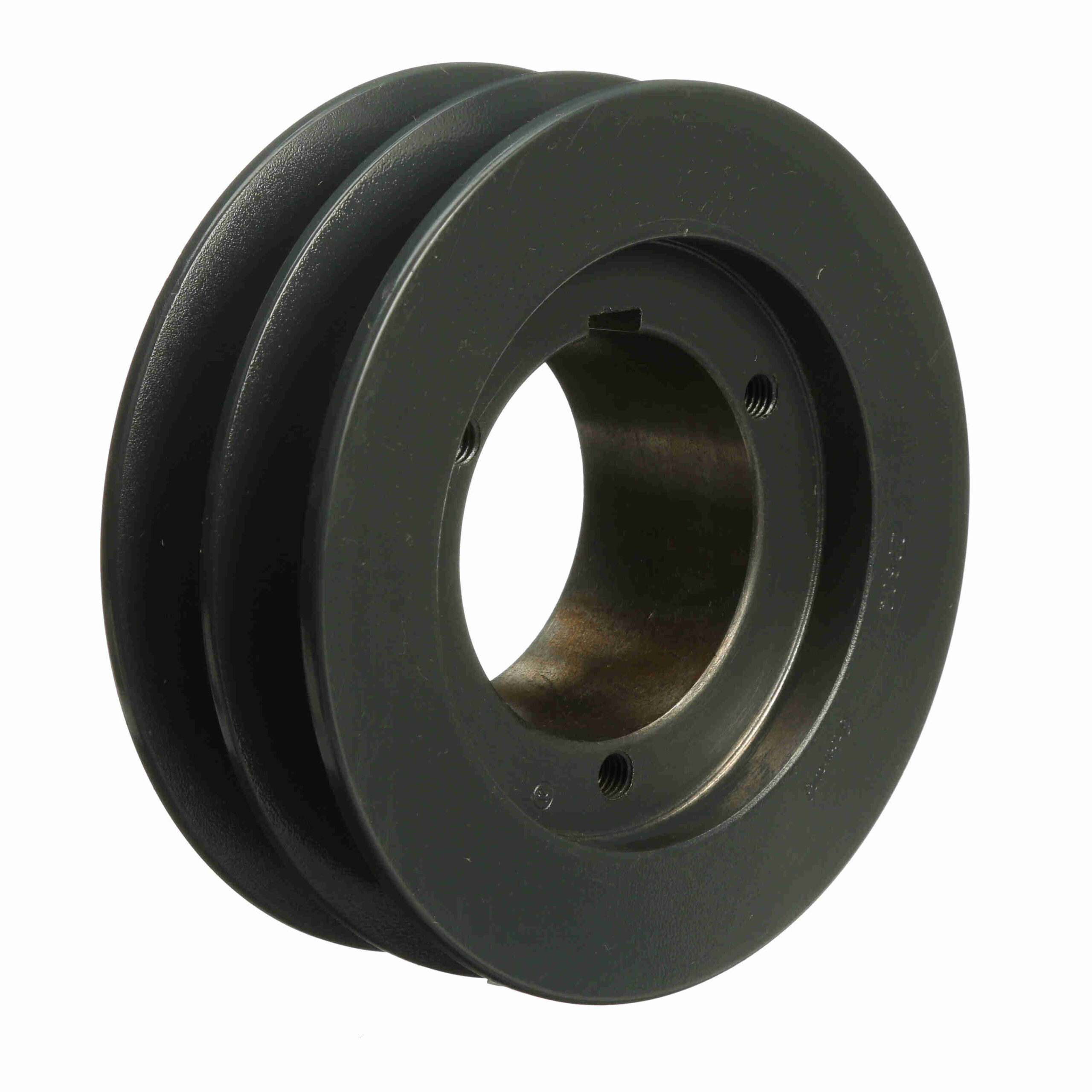

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2C60Q
$762.30
Out of stock
Out of stock
| Outside Diameter (in): | 6.4 in | Material: | Cast Iron |
|---|---|---|---|
| Bushing Used: | Q1 | Overall Length (in): | 2.828125 in |
| Pitch Diameter (C): | 6.4 | Datum Diameter (C): | 6 |
| Number of Grooves: | 2 | Pulley Material: | Cast Iron |
| Product Type: | Multiple Sheaves | Belt Section: | C |
| Bore (Min) (in): | 0.75 in | Bore Type: | Split Taper Bushed |
| Overall Width (in): | 2.78125 | Face Width (in): | 2.25 |
| Keyway Size: | .500 | Bushing Bore Range: | 2.6875 - 2.6875 |
| Pulley Construction: | Webbed | UPC: | 662289311118 |
| Weight: | 9.47 LB | Packaged Length: | 6.70 Inches |
| Packaged Width: | 6.60 Inches | Packaged Height: | 2.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
