- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
4Q5V46

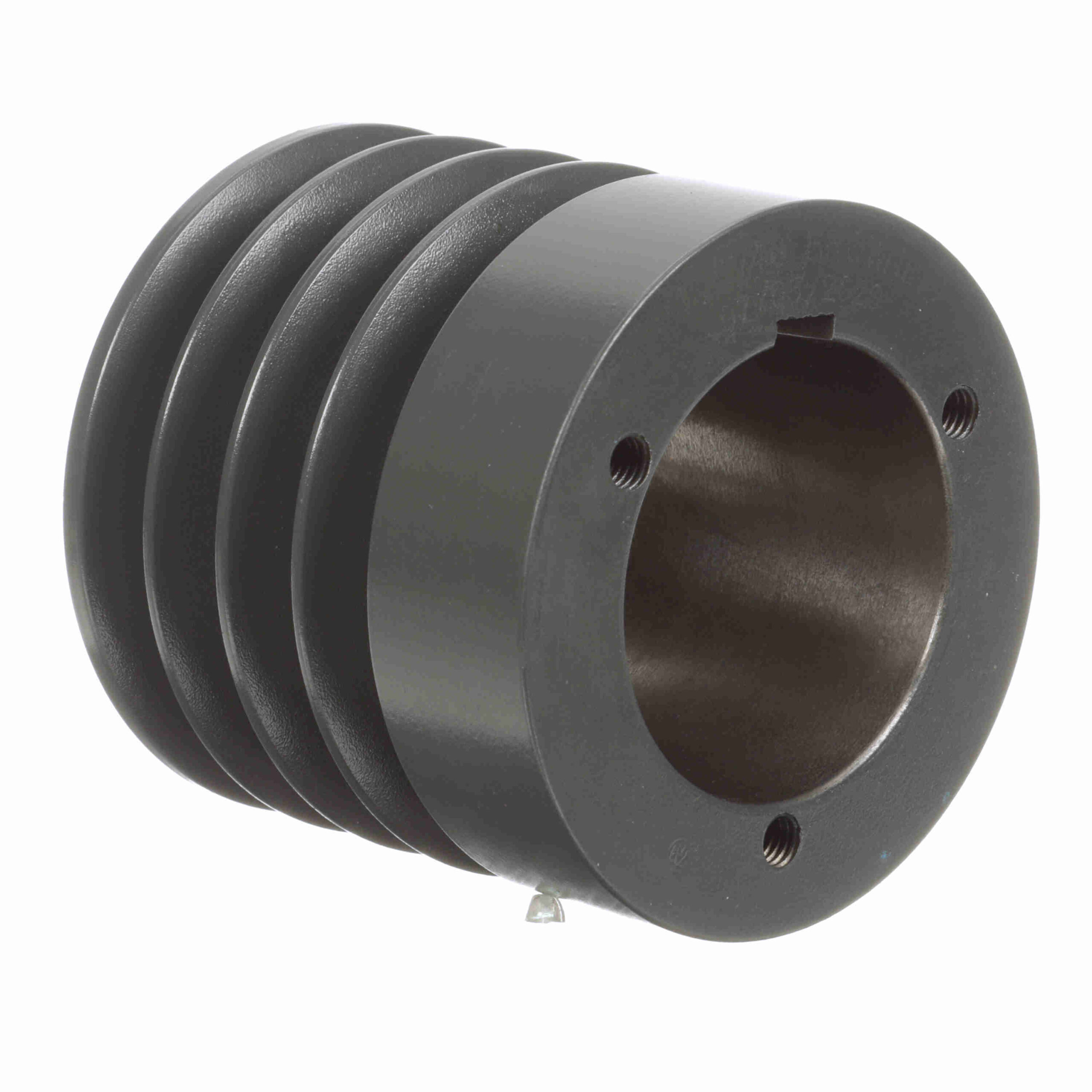

Browning 4 Groove Cast Iron Bushed Bore Multiple Sheave – 4Q5V46
Out of stock
| Number of Grooves: | 4 | Pulley Material: | Cast Iron |
|---|---|---|---|
| Outside Diameter (in): | 4.6 in | Overall Length (in): | 5.296875 in |
| Pitch Diameter (5V): | 4.5 | Bushing Used: | Q2 |
| Material: | Cast Iron | Belt Section: | 5V |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 1 in |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Bushing Bore Range: | 1.000 - 2.625 | UPC: | 662289496358 |
| Weight: | 8.34 LB | Packaged Length: | 5.50 Inches |
| Packaged Width: | 5.50 Inches | Packaged Height: | 4.90 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
