- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
3C105E

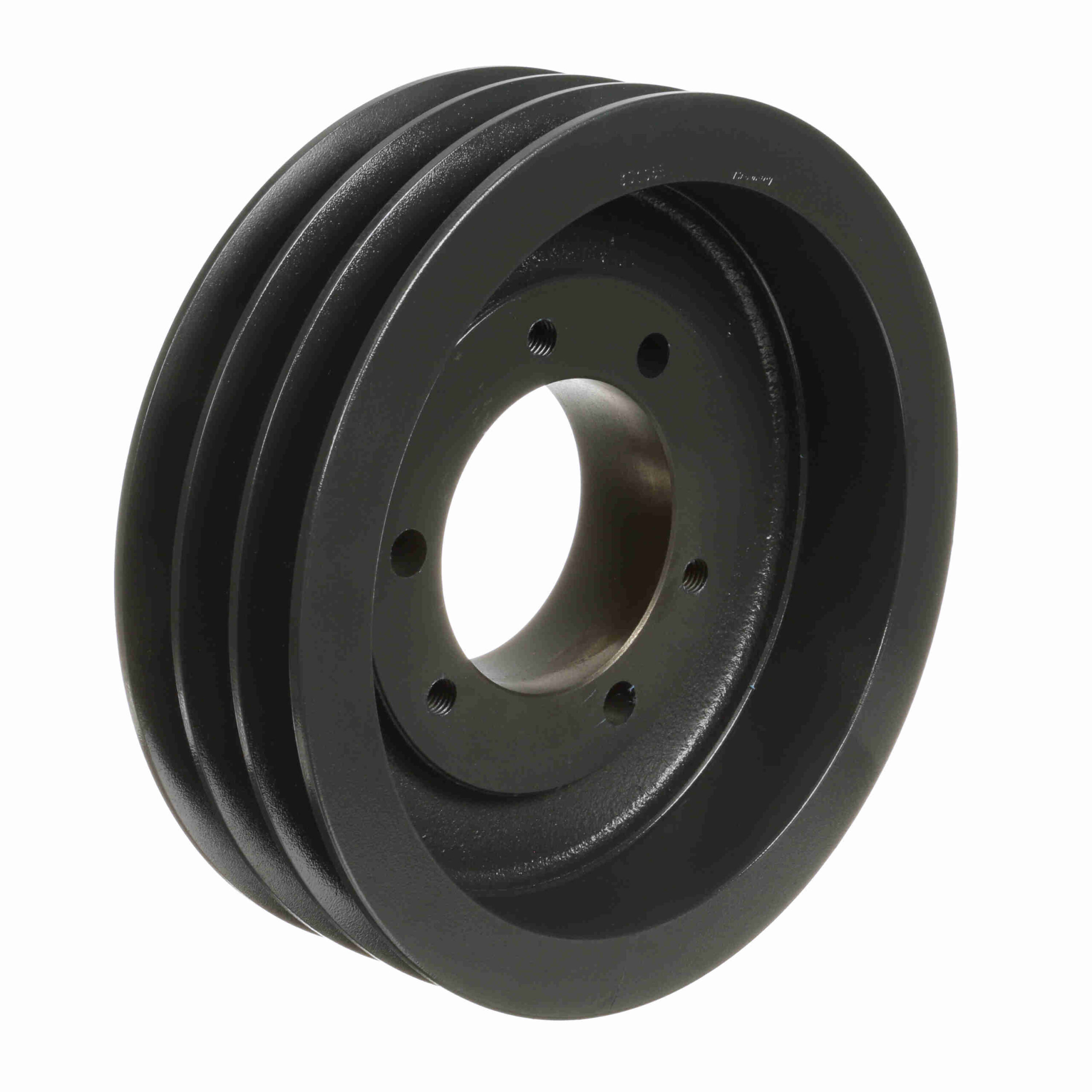

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave – 3C105E
$1,164.16
Out of stock
Out of stock
| Pitch Diameter (C): | 10.9 | Outside Diameter (in): | 10.9 in |
|---|---|---|---|
| Bushing Used: | E | Number of Grooves: | 3 |
| Material: | Cast Iron | Model Name: | 3C_LG_Sheavemaster |
| Datum Diameter (C): | 10.5 | Pulley Material: | Cast Iron |
| Product Type: | Multiple Sheaves | Bore (Min) (in): | 0.875 in |
| Belt Section: | C | Bore Type: | QD Bushed |
| Pulley Construction: | Spoked | Overall Width (in): | 3.25 |
| Bushing Bore Range: | 0.875 - 3.500 | Face Width (in): | 3.25 |
| Length Through Bore (in): | 2.75 in | UPC: | 662289339136 |
| Weight: | 31.86 LB | Packaged Length: | 11.06 Inches |
| Packaged Width: | 11.06 Inches | Packaged Height: | 4.25 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
