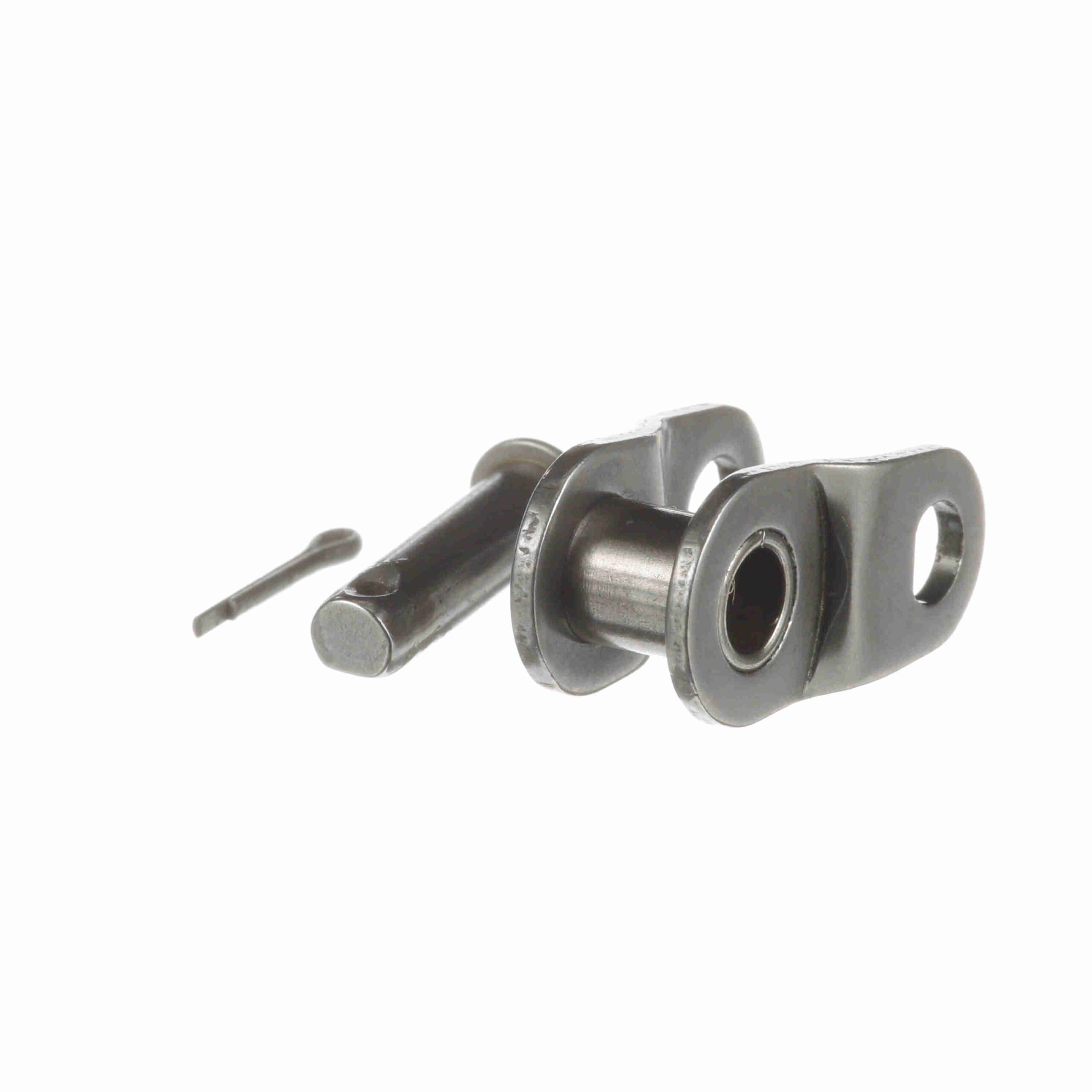

35 O/L

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Centerline to Outside of cotter Pin:	0.267	Chain Size:	35
Width Over Pins/Total Width:	0.466	Average Ultimate Tensile Strength (psi):	2, 100
Number of Strands/Width:	1	Pin Diameter (in):	0.141 in
Roller Diameter (in):	0.2 in	Roller Width (in):	0.1875 in
Plate Thickness:	0.05	Side Plate Cfg.:	Hourglass
Centerline to Opposite cotter Pin Side:	0.233	Single Pitch Offset Link:	Cottered
Inside Plate Height:	0.35	Material:	Steel
Total Length:	10 FT ft	Chain Pitch (in):	0.375 in
Chain Type:	Standard	Product Type:	Roller Chain
Link Type:	Offset Link	UPC:	662288391012
Weight:	0.01 LB	Packaged Length:	2.95 Inches
Packaged Width:	1.25 Inches	Packaged Height:	0.65 Inches
HTC:	7315.19.0000	Country of Origin:	Japan
