- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
2TC84

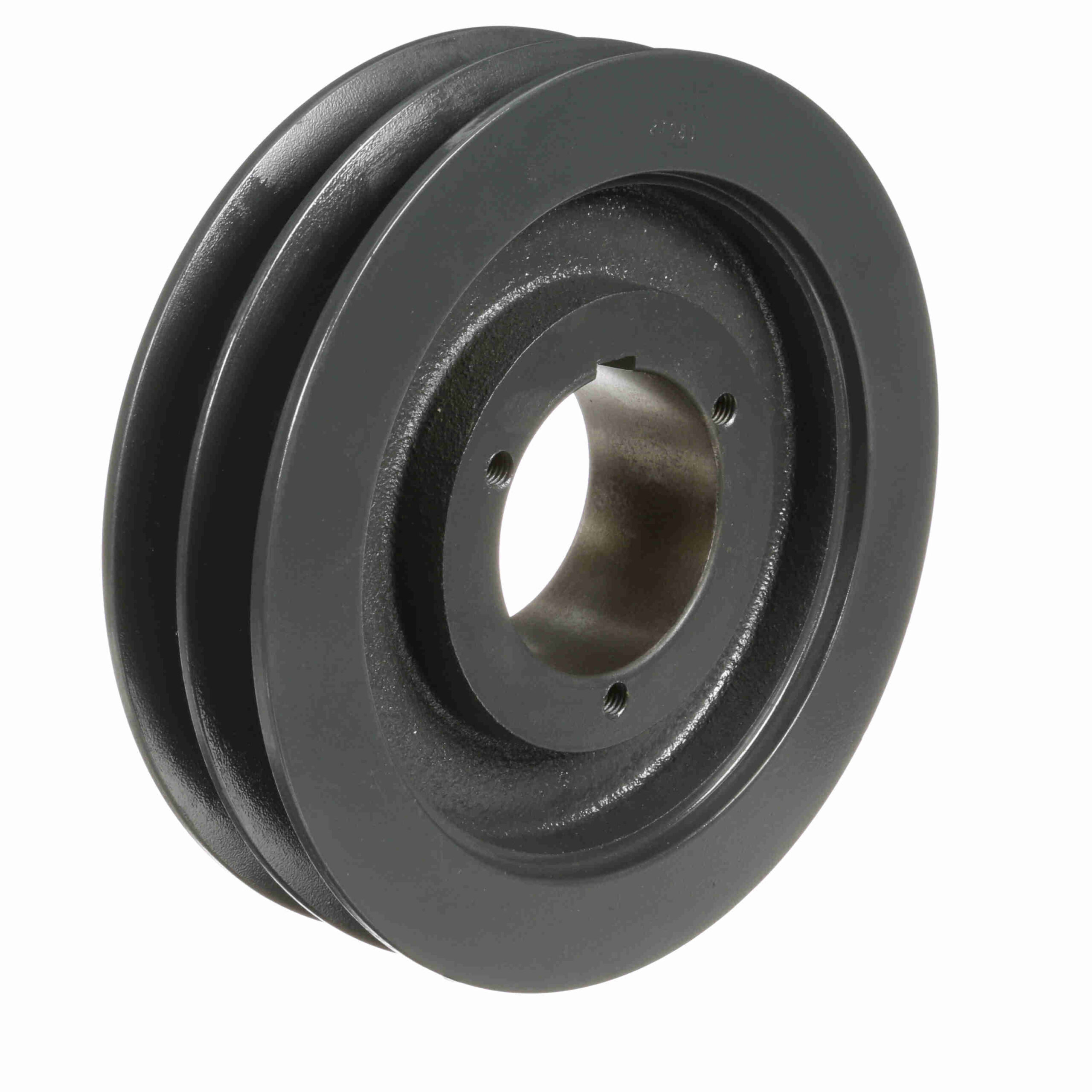

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave – 2TC84
$574.93
Out of stock
Out of stock
| Bushing Used: | Q1 | Outside Diameter (in): | 8.8 in |
|---|---|---|---|
| Model Name: | 2TC-L_Sheave_Master | Pitch Diameter (C): | 8.8 |
| Datum Diameter (C): | 8.4 | Number of Grooves: | 2 |
| Overall Length (in): | 3.078125 in | Pulley Material: | Cast Iron |
| Material: | Cast Iron | Product Type: | Multiple Sheaves |
| Belt Section: | C | Bore (Min) (in): | 0.75 in |
| Bore Type: | Split Taper Bushed | Overall Width (in): | 3.03125 |
| Pulley Construction: | Webbed | Keyway Size: | .500 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Face Width (in): | 2.25 |
| UPC: | 662289133116 | Weight: | 15.42 LB |
| Packaged Length: | 9.75 Inches | Packaged Width: | 9.75 Inches |
| Packaged Height: | 2.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
